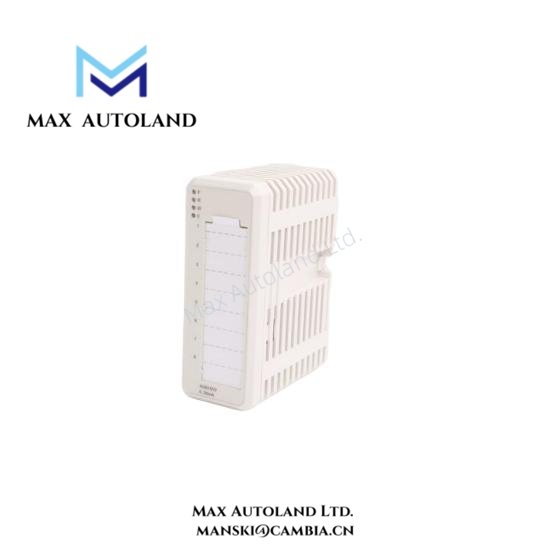

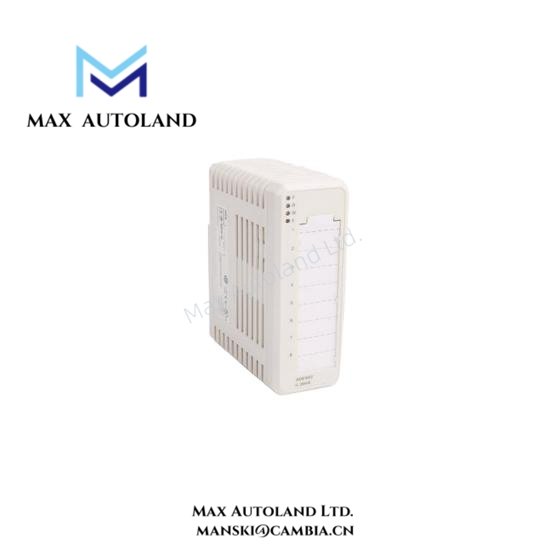

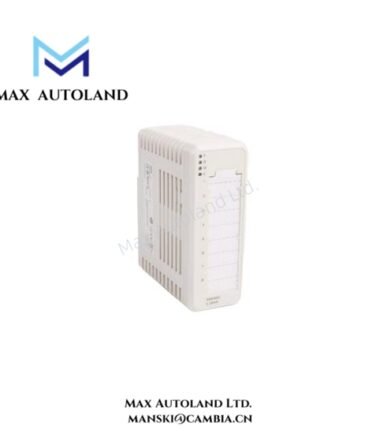

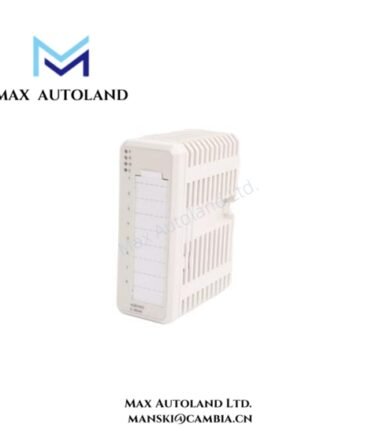

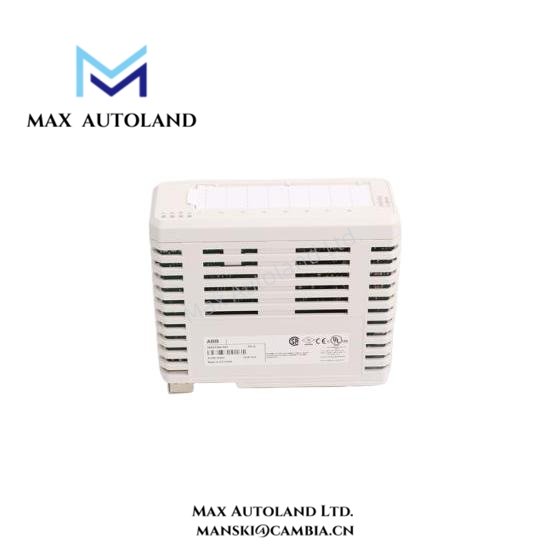

Overview
Specification
| Parameter | Specification |
|---|---|
| Model Number | AO810V2 |
| ABB Order Code | 3BSE038415R1 |
| Module Type | Analog Output Module |
| Number of Output Channels | 8 |
| Supported Signals | 0(4)…20 mA |
| Resolution | 14-bit DAC |
| Maximum Load | 500–850 Ω |
| Output Update Time | 10 ms per channel (typical) |
| Termination Units | TU810, TU812, TU814, TU830, TU833 |
| Operating Temperature | 0–60 °C |
| Storage Temperature | -40–85 °C |
| Relative Humidity | 5–95% non-condensing |
| Power Supply | 24 VDC, typical 3 W |
| Rack Compatibility | ABB S800 I/O racks for Advant OCS / 800xA |
| LED Indicators | Power, channel status, fault indications |
| Dimensions (HxWxD) | 119 mm × 45 mm × 102 mm |
| Weight | Approx. 0.2 kg |
| Compliance | CE, RoHS, WEEE |
| Maintenance | Hot-swappable; minimal routine maintenance required |
| MTBF | >100,000 hours typical |
| Environment | Industrial-grade, EMI/RFI resistant |
FAQ
Q1: How many output channels does the AO810 support?
The AO810 module supports 8 independent analog output channels for versatile control applications.
Q2: What types of analog signals does the module output?
It outputs 0(4)…20 mA signals with high 14-bit resolution for precise control.
Q3: Which termination units are compatible with the AO810 module?
The module integrates with TU810, TU812, TU814, TU830, and TU833 termination units.
Q4: Is the AO810 module hot-swappable?
Yes, it can be replaced without shutting down the entire control system.
Q5: Can the AO810 operate reliably in harsh industrial environments?
Yes, it is designed for EMI/RFI resistance and stable operation in demanding conditions.
Q6: How does the module simplify system maintenance?
Hot-swappable design, integrated diagnostics, and ABB rack compatibility reduce downtime and service complexity.
