Overview

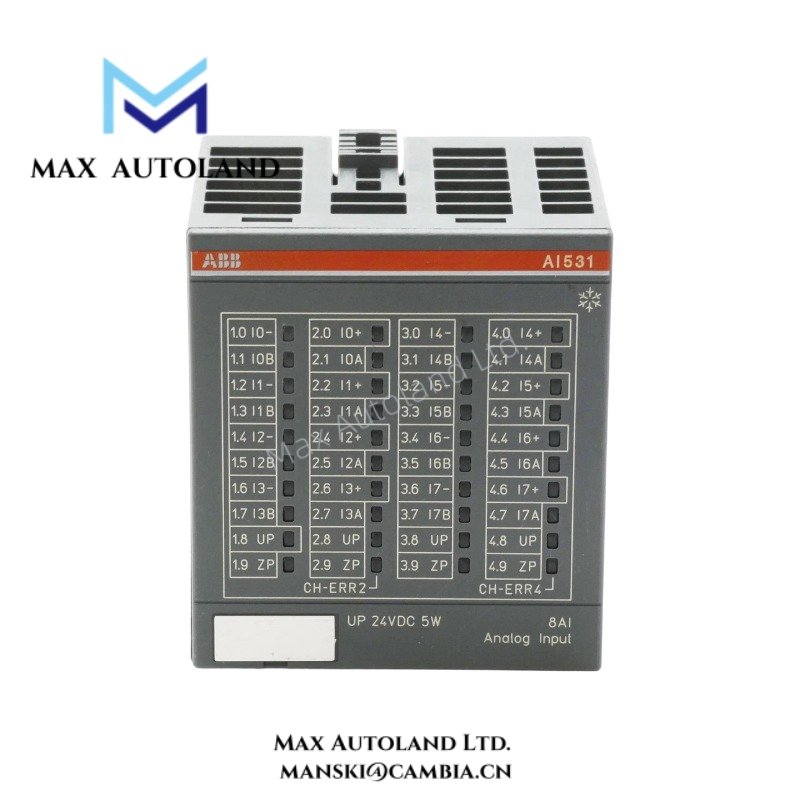

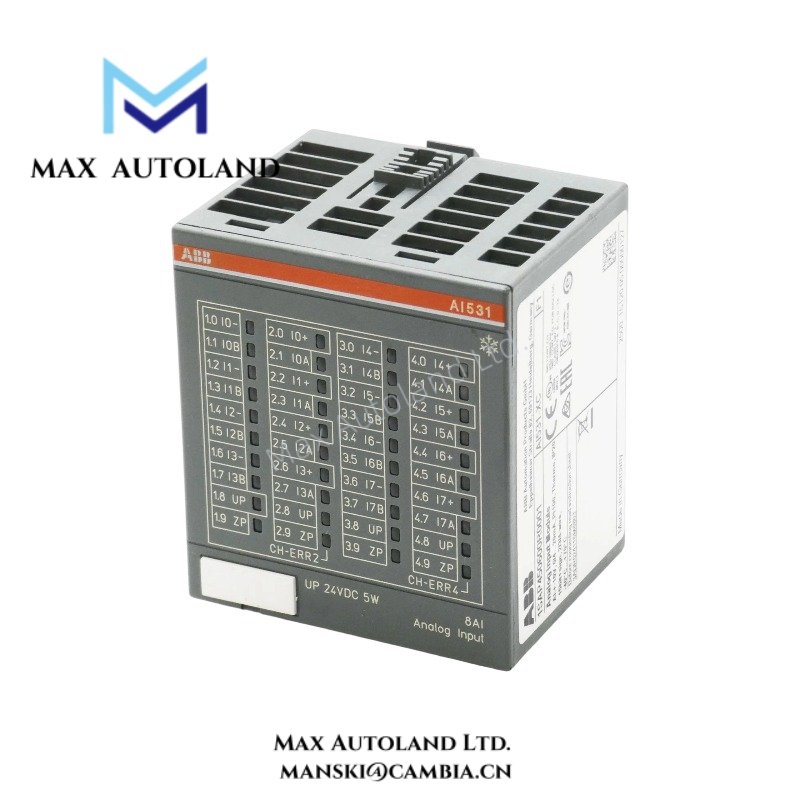

The ABB AI531 1SAP250600R0001, also cataloged as the AI531 Analog Input Module, operates as a dedicated hardware component for analog current signal acquisition within ABB Advant OCS and 800xA control systems. The module converts field-side process signals into digital process values for controller execution through the distributed I/O backplane architecture.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | AI531 1SAP250600R0001 |
| Brand | ABB |
| Origin | Sweden |
| Product Type | Analog Input Module |
| Input Channels | 8 |
| Input Signal Type | 0-20 mA, 4-20 mA |
| Resolution | 12-bit |
| Input Resistance | 100 Ohm |
| Channel Isolation | Group isolation |
| Communication Interface | Backplane bus |
| Mounting Method | DIN Rail |
| System Compatibility | ABB AC500, Advant OCS, 800xA |
| Operating Temp | Refer to manufacturer documentation |
| Dimensions | Not specified in provided data |
| Weight | Not specified in provided data |
| Power Consumption | Not specified in provided data |
Firmware Flash Compatibility
The AI531 exchanges process data with the host controller through the ABB I/O backplane. Firmware compatibility must be verified against the installed CPU firmware revision and engineering software release. During system maintenance activities, module definitions used within the control project should match the firmware-supported hardware catalog to ensure proper channel diagnostics and parameter handling.
Frequently Asked Questions
Q: Does the AI531 support hot-swapping while the controller remains energized?
A: Hot-swap capability depends on the controller platform, rack configuration, and plant maintenance procedures. Module replacement should follow ABB system-specific service instructions.
Q: What signal types can be connected to the AI531?
A: The module is designed for standard industrial analog current inputs, including 0-20 mA and 4-20 mA process signals.
Q: What should be verified after commissioning?
A: Confirm channel assignment, loop polarity, scaling configuration, diagnostic status, and measured signal values against calibrated test sources.
Field Installation Guidelines
- Mount the module securely on the designated DIN rail assembly.
- Separate analog input wiring from motor feeders, contactor wiring, and variable-frequency drive output cables.
- Use shielded instrumentation cables for low-level analog signals.
- Terminate cable shields according to the site’s grounding standard.
- Verify loop current and polarity before energizing connected field devices.
- Inspect terminal tightness and conductor retention during maintenance intervals.
- Validate each channel using a calibrated current source before placing the system into service.
