Overview

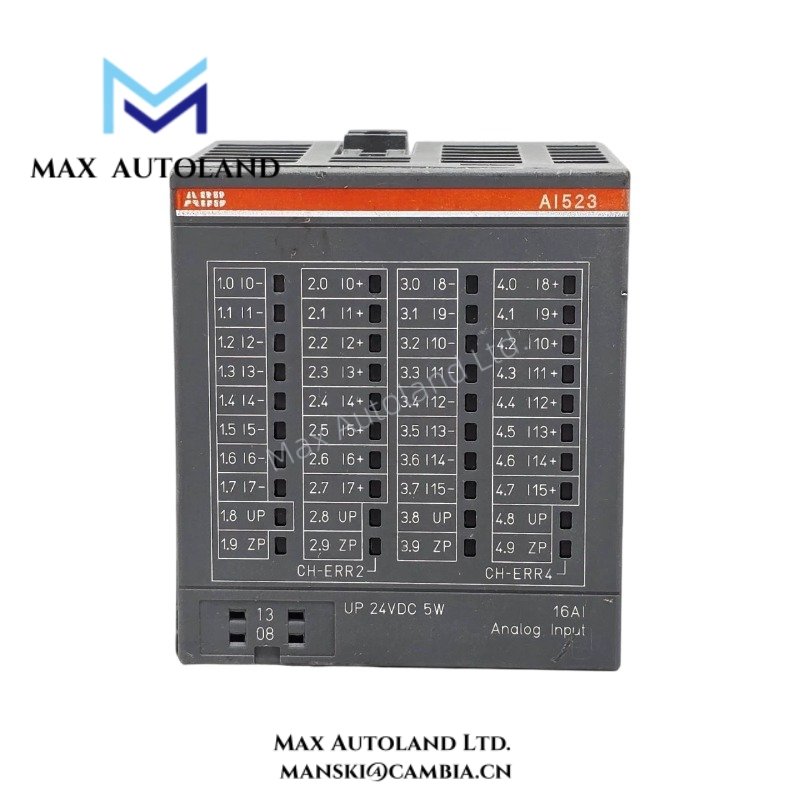

The ABB AI523 1SAP250300R0001, also cataloged as the AI523 Analog Input Module, operates as a dedicated hardware component for analog current signal acquisition within ABB Advant OCS and 800xA control systems. The module receives field-side process signals, performs analog-to-digital conversion, and transfers measurement values to the controller through the distributed I/O communication structure.
Suffix Breakdown & Model Matrix
| Designation | Description |
|---|---|
| AI523 | Analog Input Module |
| 1SAP250300R0001 | ABB catalog number |
No additional suffix variants or ordering matrix are defined in the provided documentation.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | AI523 1SAP250300R0001 |
| Brand | ABB |
| Origin | Sweden |
| Product Type | Analog Input Module |
| Input Channels | 8 |
| Input Signal Range | 0-20 mA, 4-20 mA |
| Resolution | 12-bit |
| Input Resistance | 100 Ohm |
| Isolation | Group isolation |
| Communication | ABB I/O Backplane Bus |
| Mounting | DIN Rail |
| System Compatibility | ABB AC500, Advant OCS, 800xA |
| Operating Temp | Refer to manufacturer documentation |
| Dimensions | Not specified in provided documentation |
| Weight | Not specified in provided documentation |
| Power Consumption | Not specified in provided documentation |
Backplane Bus Communication Architecture
The AI523 exchanges cyclic process data through the ABB distributed I/O backplane. First, the module samples analog input signals from connected field devices. It then converts these signals into digital values and transfers the resulting process data directly to the controller memory. As a result, the controller can execute control algorithms, calculations, and monitoring functions without additional signal processing hardware. Meanwhile, the host controller determines communication timing according to its scan cycle and configured I/O update intervals. Furthermore, engineers integrate the module through ABB engineering software by selecting predefined hardware profiles and assigning channel-specific configuration parameters.
Frequently Asked Questions
Q: What input signal types does the AI523 support?
A: The AI523 accepts standard industrial current signals, including 0-20 mA and 4-20 mA ranges. Users can configure these inputs according to application requirements within the control system.
Q: Can technicians install the AI523 while the system remains energized?
A: Technicians should first verify the controller platform requirements and site maintenance procedures. In addition, they should follow ABB installation instructions before inserting or removing the module from an operating system.
Q: What should engineers check during commissioning?
A: Engineers should verify loop polarity, channel assignments, scaling settings, wiring continuity, and controller diagnostics. Afterward, they should confirm that each channel reports the expected process value before placing the system into service.
Field Installation Guidelines
- First, mount the module securely on the designated DIN rail assembly.
- Next, route analog signal cables separately from power distribution conductors and motor control wiring.
- Use shielded instrumentation cable to reduce electrical interference on low-level analog signals.
- Then, connect cable shields according to the facility grounding standard.
- Before energizing field devices, verify terminal identification and wiring polarity.
- Additionally, avoid running analog signal cables in parallel with variable frequency drive output cables.
- During startup, use calibrated test equipment to confirm proper channel scaling and signal integrity.
- Finally, inspect field terminations periodically and tighten connections whenever maintenance procedures require verification.
