Overview

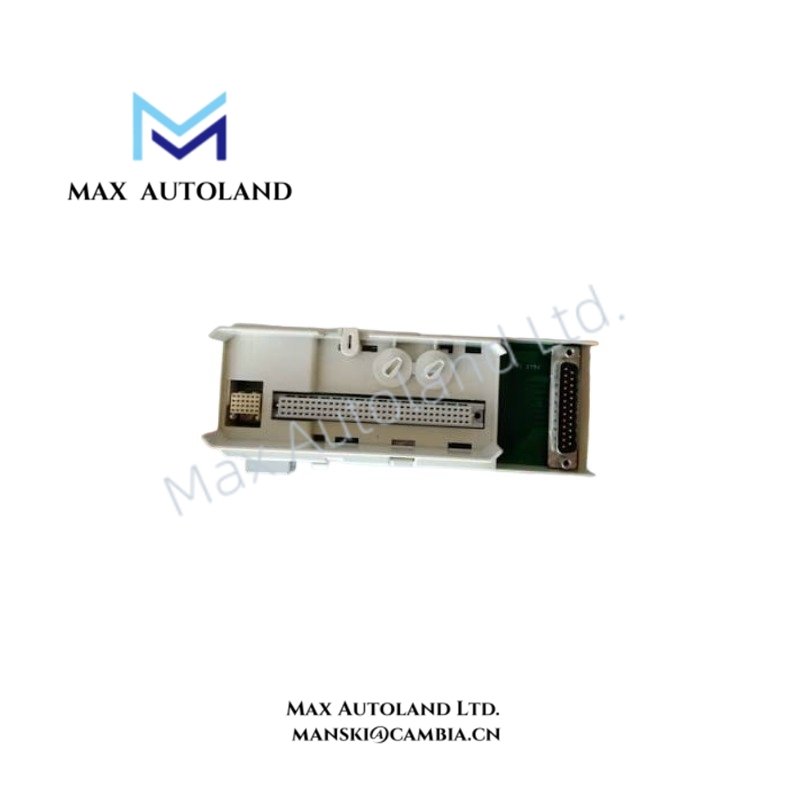

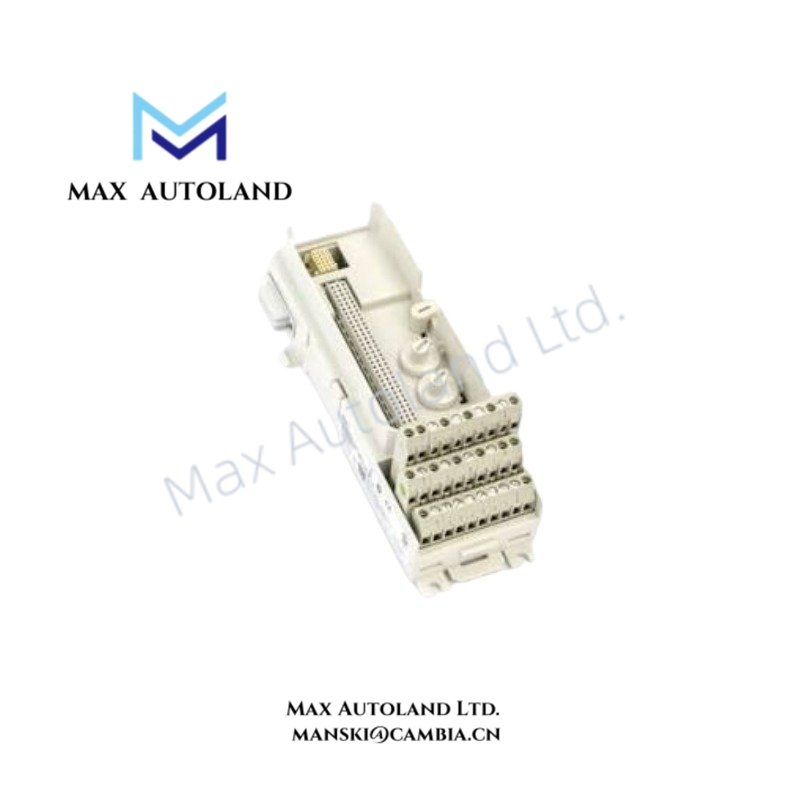

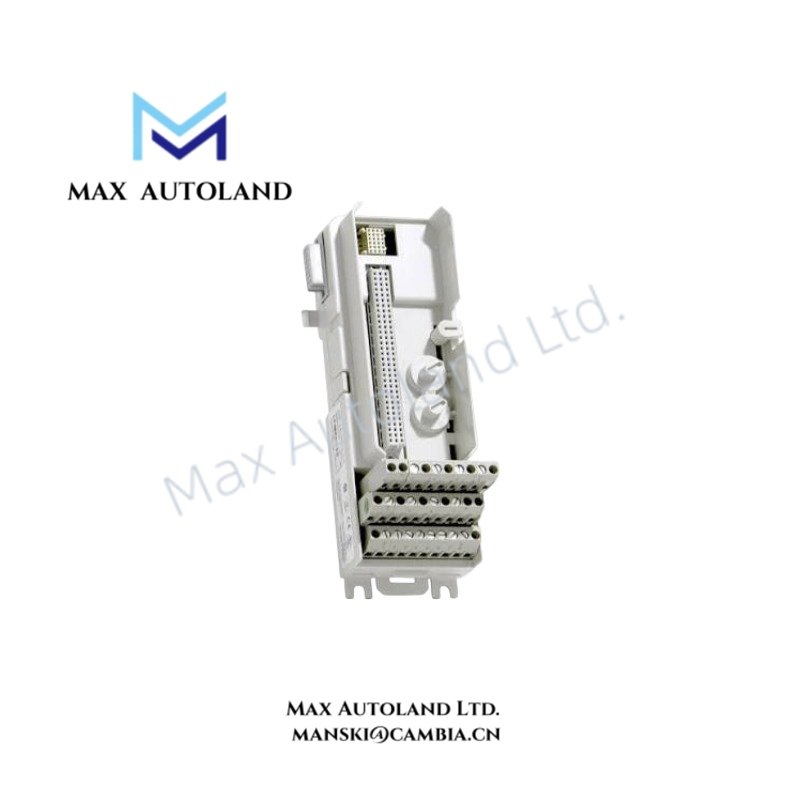

Configured for field signal termination in ABB S800 I/O systems, the ABB 3BSE013231R1 (TU811V1 Compact Module Termination Unit) provides direct physical connection between field wiring and I/O modules through 1×8 signal terminals.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | TU811V1 (3BSE013231R1) |
| Brand | ABB |
| Product Type | Module Termination Unit |
| Function | Compact MTU with 1×8 signal terminals |
| System Compatibility | ABB S800 I/O System |
| Rated Voltage | 250 V |
| Signal Terminals | 8 |
| Product Net Weight | 0.2 kg |
| Dimensions | 64 mm depth x 170 mm height x 58.5 mm width |
| Operating Temp | Not specified in available data |
| Power Consumption | Passive termination unit; no external power consumption specified |
| Protection Function | Field wiring termination and signal distribution interface |
| RoHS Compliance | EU Directive 2011/65/EU |
| WEEE Category | Category 5 – Small Equipment |
ABB S800 I/O Backplane and I/O Density Integration
The TU811V1 operates as a passive interface component within the ABB S800 I/O architecture. It terminates eight field signal connections and transfers wiring connections to the associated I/O module.
Additionally, the unit supports ABB modular I/O density scaling by providing a compact termination structure. Therefore, engineers can maintain organized field wiring layouts while reducing direct connection complexity at the I/O module level.
The TU811V1 belongs to ABB industrial control hardware platforms that use structured module connection systems. It supports standardized cabinet installation practices and maintains compatibility with ABB S800 I/O module arrangements.
Frequently Asked Questions
Q: What is the primary function of the ABB TU811V1?
A: The TU811V1 is a Compact Module Termination Unit that provides 1×8 signal terminal connections between field wiring and ABB S800 I/O modules.
Q: Does the TU811V1 require an external power supply?
A: No. The TU811V1 is a passive Module Termination Unit, and the available technical data does not specify external power requirements.
Q: Can the TU811V1 be used as an independent I/O module?
A: No. The TU811V1 functions as a termination interface and requires connection with compatible ABB S800 I/O modules.
Field Installation Guidelines
- Install the TU811V1 inside an approved control cabinet environment according to ABB S800 I/O system installation requirements.
- Verify terminal assignments before connecting field signal cables to prevent incorrect signal routing.
- Keep signal wiring separated from high-voltage power cables to reduce electromagnetic interference.
- Connect cable shields according to the cabinet grounding design and plant electrical standards.
- Confirm mechanical alignment between the termination unit and the associated I/O module before final assembly.
- Inspect terminal connections after installation to ensure proper mechanical retention and electrical contact.
