Overview

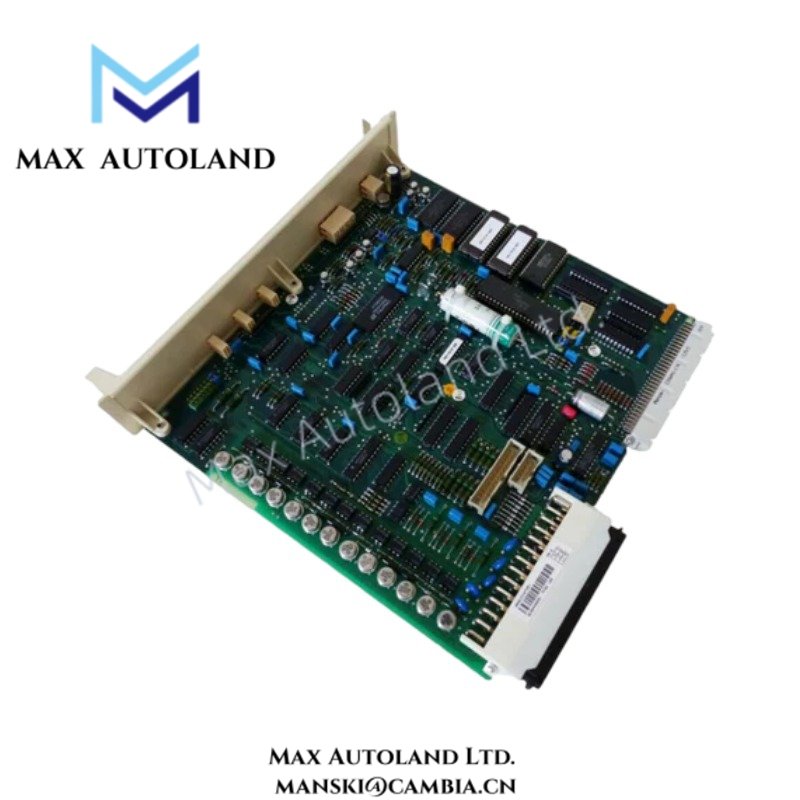

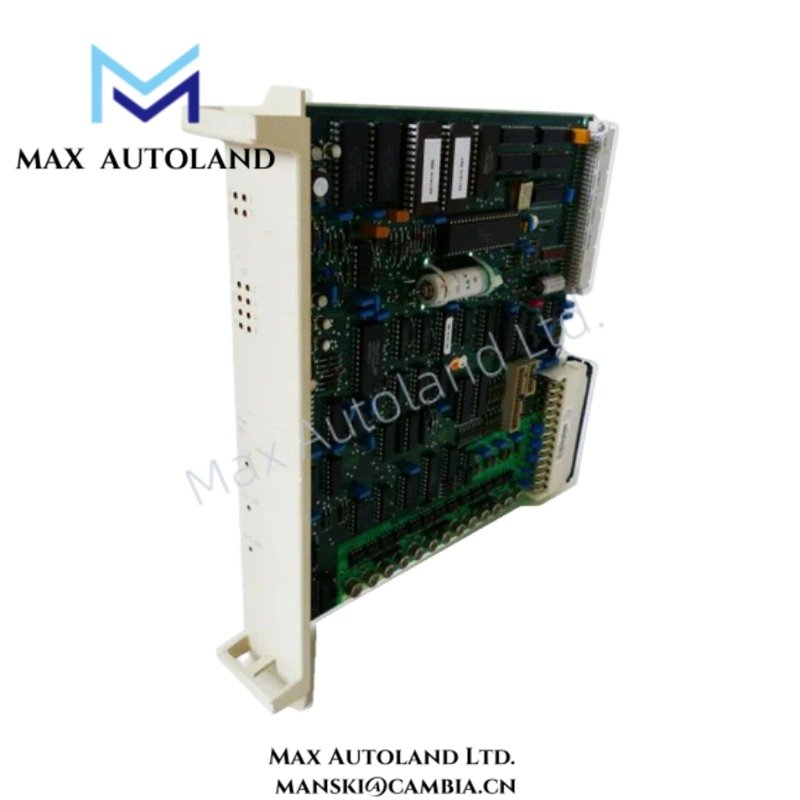

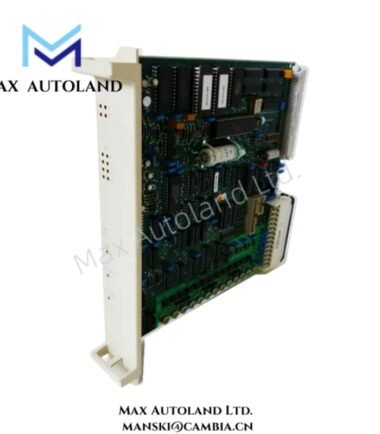

Configured for signal conditioning of Pressductor load cell bridge inputs in ABB tension measurement systems, the ABB 3BSE000471R1 (PFBK 161 Tension Electronics Unit) provides direct physical/electrical execution of excitation current delivery and low-level millivolt signal conversion for load cell interfaces within closed-loop tension measurement architectures.
Suffix Breakdown & Model Matrix
The designation 3BSE000471R1 / PFBK 161 is treated as a single ABB order code. No formal public suffix segmentation or functional subcode decomposition is defined for this unit.
Hardware Specifications
| Parameter | Specification |
|---|---|
| ModelBrand | ABB 3BSE000471R1 |
| Origin | Switzerland / Sweden (ABB corporate origin) |
| OperatingTemp | 0 to 55 degC |
| PowerConsumption | Not specified |
| Input Type | ABB Pressductor load cell bridge signal |
| Channels | Typically 2 load cell inputs (A/B) |
| Supply Voltage | 24 VDC or 115/230 VAC (configuration dependent) |
| Analog Outputs | 0 to +/-10 V, 4-20 mA configurable |
| Function | Excitation, amplification, signal conditioning |
ABB Industrial Control Firmware and Communication Handling
The PFBK 161 architecture aligns with ABB industrial control module behavior where configuration and diagnostics are executed through service-level access ports and firmware-resident parameter sets. Firmware flash compatibility governs parameter retention across service replacements, while deterministic signal processing ensures stable conversion of microvolt-level Pressductor inputs into standardized analog process signals. Internal signal paths are designed to maintain consistent update behavior under electrically noisy drive cabinet environments typical of backplane-adjacent installations.
Frequently Asked Questions
Q: Is the PFBK 161 hot-swappable in live tension measurement systems?
A: No. The unit requires system power removal before replacement due to load cell excitation and analog output dependency.
Q: What is the backplane current consumption behavior?
A: Backplane current is not separately specified; power draw is governed by external supply configuration (24 VDC or AC variants).
Q: Can firmware be updated in-field without recalibration loss?
A: Firmware updates are performed via service interface; parameter retention depends on stored configuration memory and system setup integrity.
Field Installation Guidelines
Install the unit with dedicated shielded cabling for Pressductor load cell inputs. Maintain separation between excitation wiring and high-power drive conductors to reduce electromagnetic coupling. Ensure single-point grounding of cable shields at the control cabinet end only. Verify correct excitation polarity and bridge completion before energization. Avoid routing signal cables parallel to inverter output wiring over long distances. Mechanical mounting must ensure vibration isolation consistent with control cabinet DIN rail or enclosure design limits.
