Overview
Hardware Specifications
| Parameter | Specification |
|---|---|

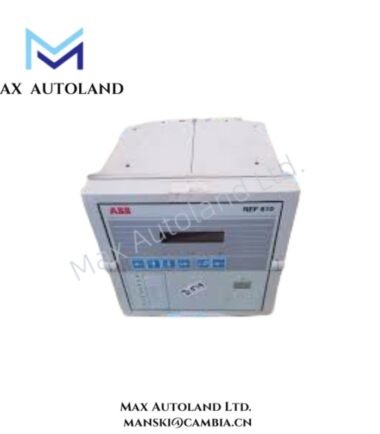

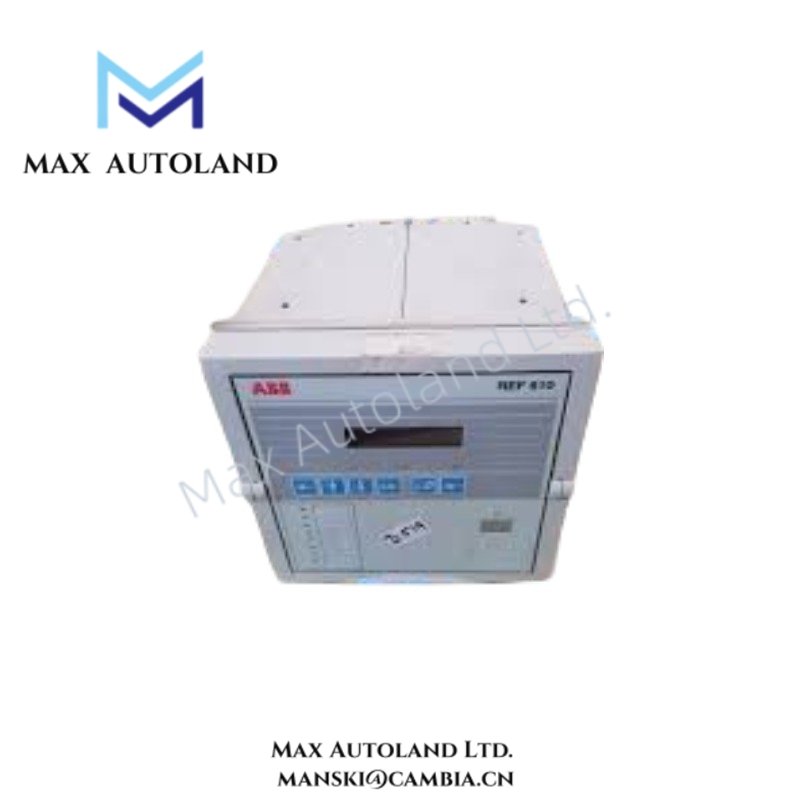

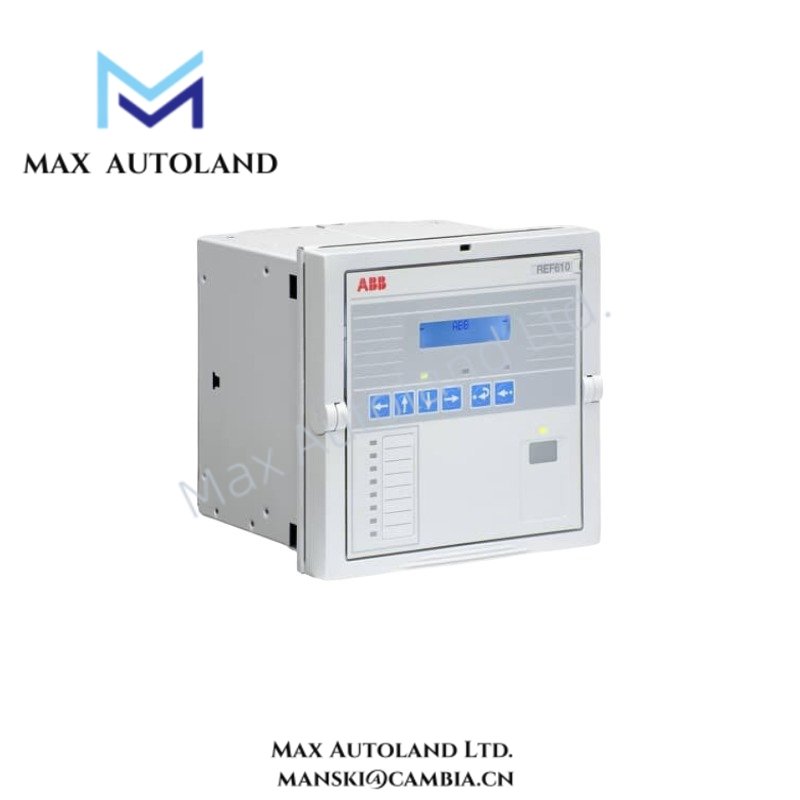

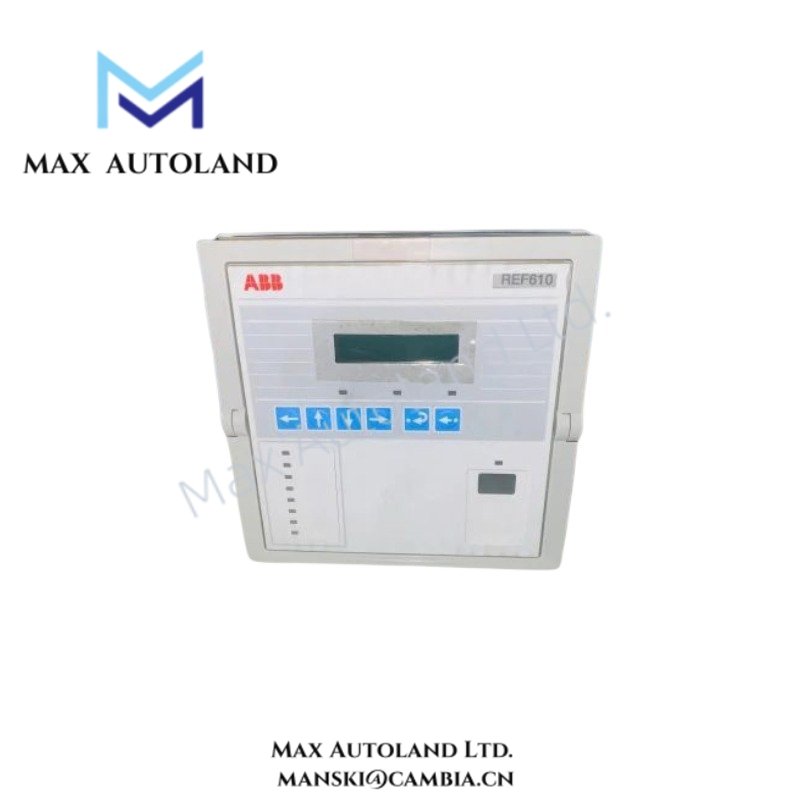

| Model | ABB REF610 |
| Brand | ABB |
| Product Type | Feeder Protection and Control Relay |
| Series | Relion 610 series |
| Application | Cable and overhead-line feeder protection |
| Current Inputs | 4 CT inputs for phase and residual current measurement |
| Overcurrent Protection | Three-phase, instantaneous, low-set, and high-set stages |
| Time Characteristics | Definite time or IDMT |
| Earth-Fault Protection | Non-directional |
| Thermal Protection | Cable thermal overload protection |
| Phase Protection | Phase discontinuity protection |
| Auto-Reclosing | Multi-shot auto-reclosing for overhead lines |
| Arc-Fault Protection | Optional |
| Current Measurement | Continuous phase and residual current measurement |
| Circuit-Breaker Monitoring | Wear and condition monitoring counters |
| Trip-Circuit Supervision | Supported |
| Recording | Disturbance and event recording with non-volatile memory |
| Communication | IEC 61850, Modbus, Profibus, DNP3, IEC 60870-5-103, SPA bus |
| HMI | Integrated LCD interface |
| Mounting | Flush, semi-flush, or wall mounting with tilt capability |
| Construction | Plug-in modular relay unit |
Industrial Control and Communication Architecture
The REF610 combines protection processing with measurement, event recording, and communication functions. It accepts CT-derived current signals and evaluates them against configured protection stages.
The relay supports multiple communication protocols, including IEC 61850, Modbus, Profibus, DNP3, IEC 60870-5-103, and SPA bus. Therefore, the actual communication interface depends on the installed hardware configuration and ordering code.
For ABB protection installations, engineers should verify firmware and communication-card compatibility before replacing or upgrading a relay. In addition, protection settings must correspond to the connected CT ratios, feeder characteristics, and system earthing arrangement.
Frequently Asked Questions (FAQ)
Q: How many CT inputs does the REF610 provide?
A: The supplied specification identifies 4 CT inputs for phase and residual current measurement.
Q: Does the REF610 support automatic reclosing?
A: Yes. It supports multi-shot auto-reclosing for applications involving overhead lines.
Q: Can the relay record protection events?
A: Yes. The REF610 provides disturbance and event recording using non-volatile memory.
Field Installation Guidelines
- Verify the complete REF610 hardware configuration against the protection and communication requirements before installation.
- Confirm CT wiring, polarity, phase identification, and residual-current connections before energizing the relay.
- Keep CT signal wiring separated from high-current power conductors and switching circuits where practical.
- Apply the specified protective-earth connection and follow the switchgear manufacturer’s grounding arrangement.
- Route communication cables separately from high-energy conductors to reduce electromagnetic interference.
- Connect cable shields according to the selected communication interface and the site’s grounding practice.
- Verify the circuit-breaker trip circuit and trip-circuit supervision wiring before placing the feeder into service.
- Load the approved protection settings only after confirming CT ratios, feeder topology, and system earthing configuration.
- Perform functional checks for overcurrent, earth-fault, measurement, recording, communication, and auto-reclose functions as applicable.
- Record the installed hardware configuration and firmware information for future maintenance and replacement work.
