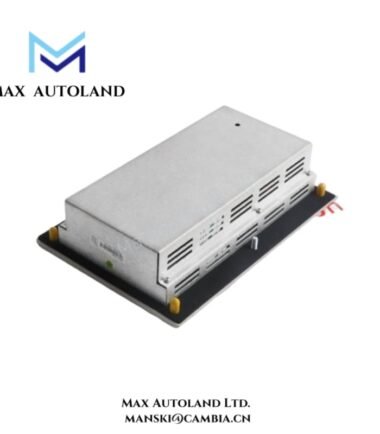

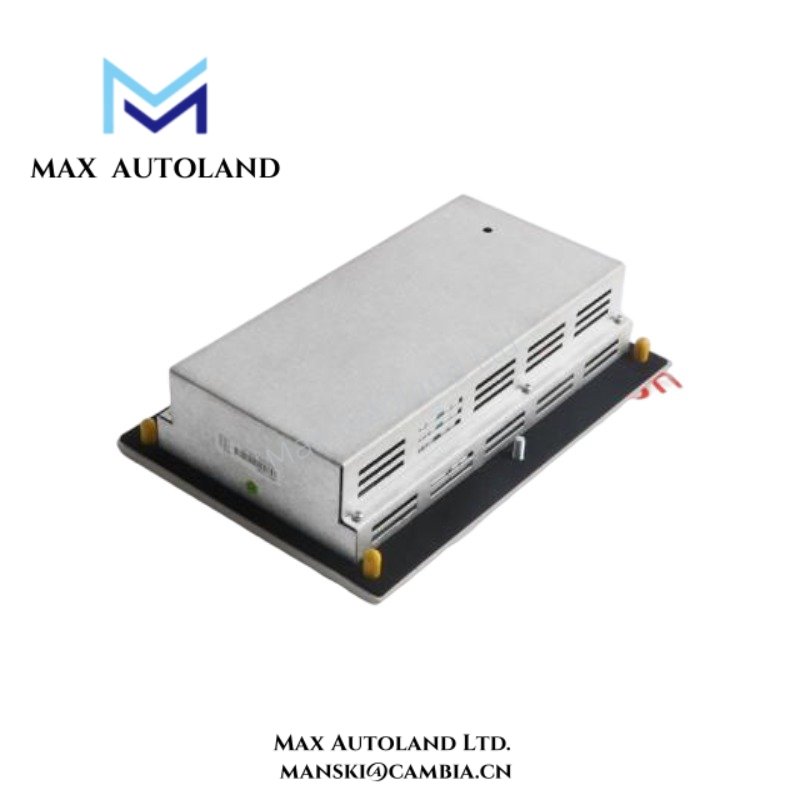

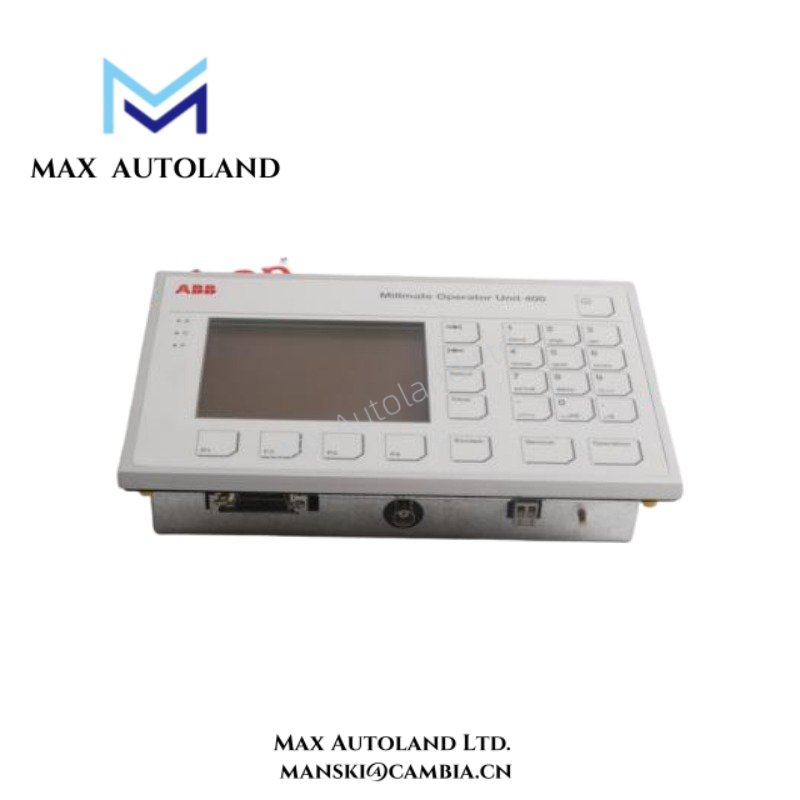

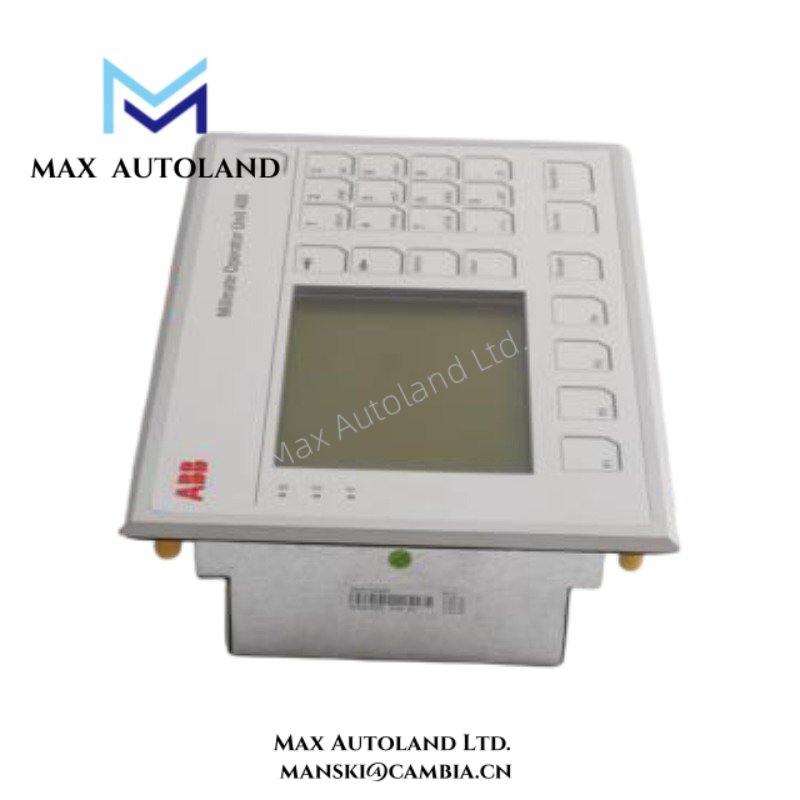

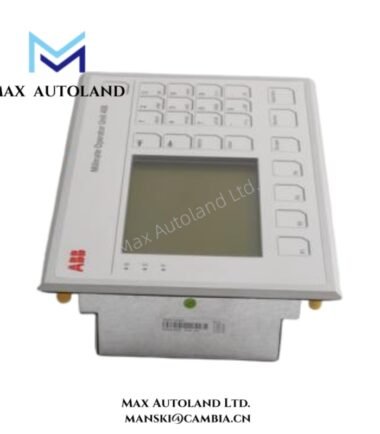

ABB PXAH401 3BSE017235R1 Operator Interface Modules

Overview

The ABB PXAH401 3BSE017235R1, also cataloged as the PXAH401 excitation unit operator module, serves as the primary control interface used to execute excitation system operator-level command handling and signal coordination across ABB generator excitation architectures.

Configured for excitation control interaction and operator command processing in ABB excitation systems, the ABB PXAH401 3BSE017235R1 (PXAH401 operator module) provides direct physical/electrical execution of HMI-to-excitation control signal exchange and system parameter adjustment routing.

Hardware Specifications

Excitation System Control and Signal Coordination

The PXAH401 operates within ABB excitation control architectures where system bus communication governs deterministic exchange between operator interfaces and excitation control logic. Moreover, bus-level communication scheduling defines synchronization between command inputs and excitation response cycles.

In addition, the module processes operator-level setpoint adjustments and control commands, then routes them through the excitation control chain. As a result, excitation reference values remain aligned with system feedback signals during dynamic operating conditions.

Furthermore, the module supports structured interface separation between operator control layer and excitation regulation layer. This separation reduces signal interference between user commands and control loop execution.

At the system level, PXAH401 integrates with ABB excitation platforms where internal communication networks handle real-time parameter transfer. However, the module itself focuses on command interface execution and operator signal mediation rather than direct power regulation.

Frequently Asked Questions (FAQ)

Q: Does PXAH401 support hot-swap replacement during system operation?
A: Hot-swap capability depends on the excitation cabinet and system architecture. The module itself does not define independent hot-swap functionality.

Q: Does PXAH401 process excitation power output directly?
A: No. The module handles operator-level commands only and does not interface with power stage conversion elements directly.

Q: Is firmware required for PXAH401 operation?
A: Firmware handling is managed by the excitation system controller. The module operates as an interface node within the system architecture.

Field Installation Guidelines

Install the PXAH401 module in a de-energized excitation cabinet unless the system explicitly supports live insertion. Ensure correct seating in the designated slot to maintain stable system bus continuity.

Maintain proper shielding of all communication and control wiring. Terminate cable shields at a single-point grounding reference to reduce electromagnetic coupling within the excitation cabinet.

Route operator interface wiring separately from power and excitation feedback circuits to avoid noise injection into low-level control paths. Follow ABB cabinet wiring standards for terminal tightening and grounding practices.

All unused interface channels must be properly isolated or logically disabled according to system design rules to prevent floating control inputs.
