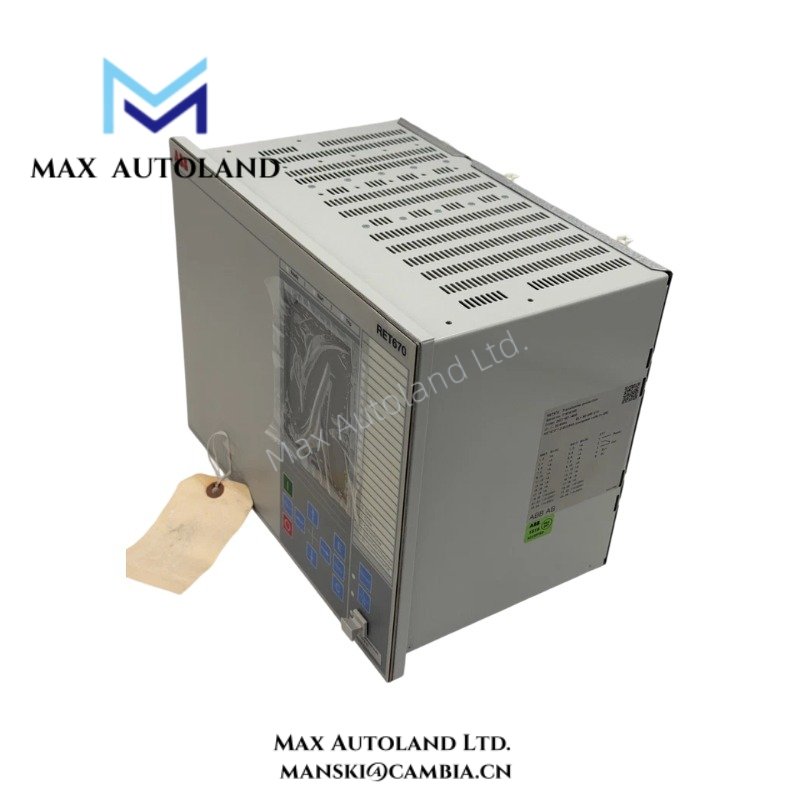

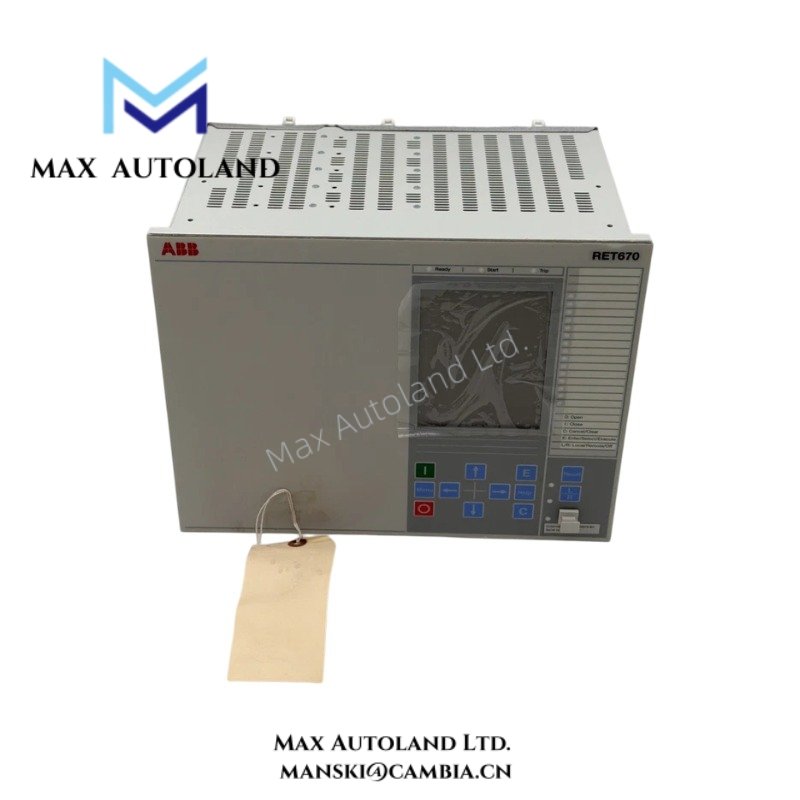

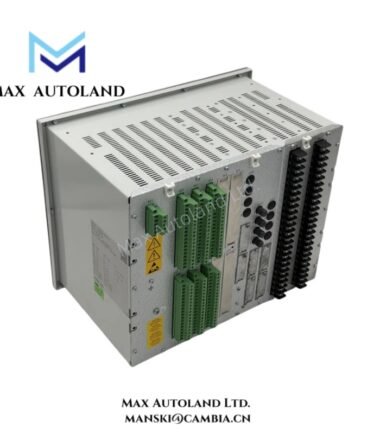

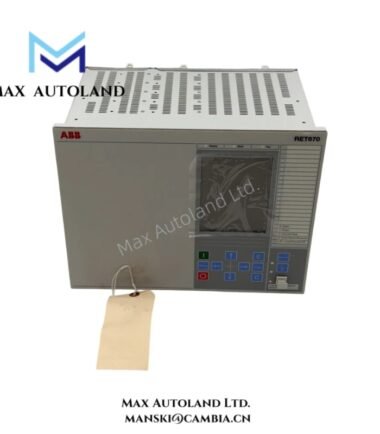

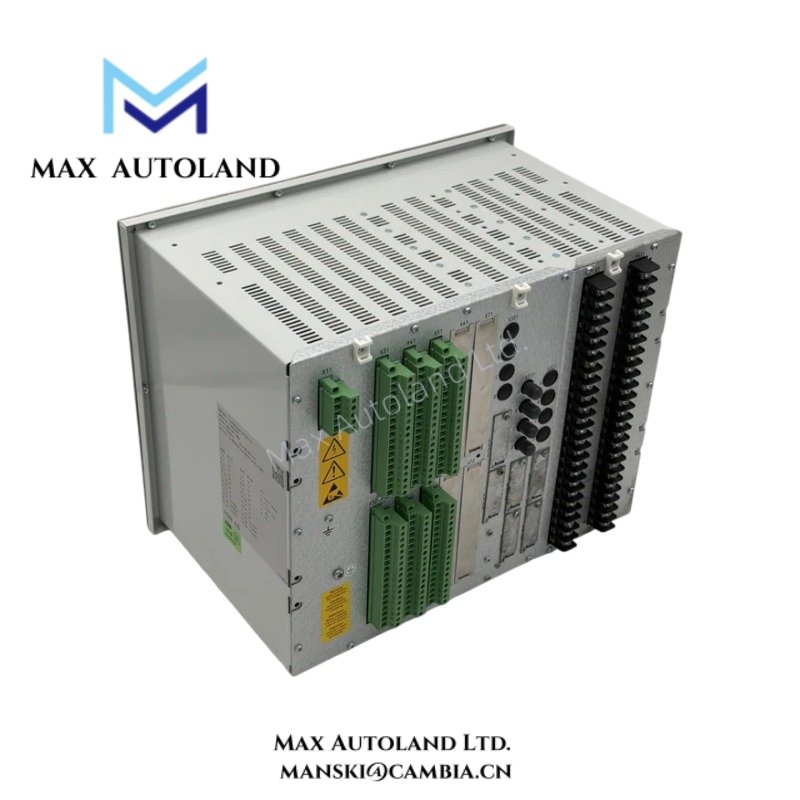

ABB Feeder Protection and Control RET670 1MRK002246-BD

Suffix Breakdown & Model Matrix

The designation 1MRK002246-BD identifies a configured RET670 ordering variant within the ABB Relion 670 series. No public suffix decomposition for the “-BD” extension is explicitly defined in the supplied reference data.

Hardware Specifications

Deterministic Network Integration and Firmware Compatibility

RET670 devices operate in substation automation environments that require deterministic signal exchange among protection, control, and station-level functions. In this architecture, the device manages IEC 61850 object handling, GOOSE message transfer, and coordinated event processing to maintain predictable communication behavior.

In addition, firmware management requires strict alignment between the installed hardware revision and the active engineering project baseline. Before engineers deploy configuration transfers, logic modifications, or communication dataset changes into energized protection schemes, they should confirm compatibility within the applicable ABB engineering environment.

Frequently Asked Questions

Q: Does the RET670 support hot-swap replacement during energized operation?
A: Hot-swap capability depends on the protection panel architecture, wiring segregation method, and site maintenance procedure. In most protection systems, technicians do not treat RET670 removal or insertion during energized operation as an unrestricted maintenance action.

Q: Are firmware revisions interchangeable across all RET670 hardware configurations?
A: No. Each firmware revision must match the installed hardware platform, configuration database, and engineering software environment. Therefore, engineers should verify revision compatibility before they perform firmware loading, project migration, or configuration restoration.

Q: How should communication wiring be handled for IEC 61850 integration?
A: For stable network performance, installers should route Ethernet communication conductors separately from trip circuits, switching conductors, and high-current power wiring. Furthermore, technicians should apply shield termination and grounding practices according to the substation EMC design standard.

Field Installation Guidelines

Install the RET670 assembly inside a vibration-controlled protection panel and maintain adequate clearance for airflow and service access. At the same time, keep CT/VT secondary circuits, trip outputs, auxiliary supply conductors, and Ethernet communication cables physically separated to reduce electromagnetic coupling.

For cable management, technicians should terminate shields according to the site grounding philosophy and avoid multi-point bonding unless the installation standard explicitly requires it. Before commissioning begins, engineers should verify CT polarity, differential protection zone allocation, binary I/O assignment, and communication dataset consistency between the RET670 configuration and the station network.
