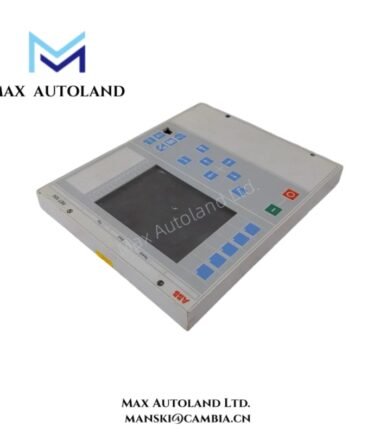

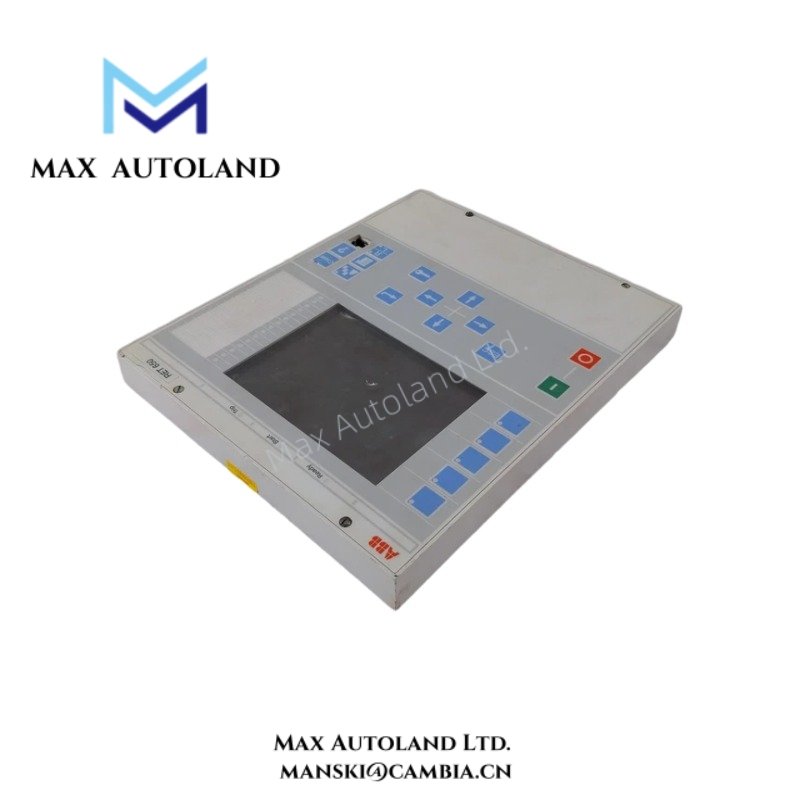

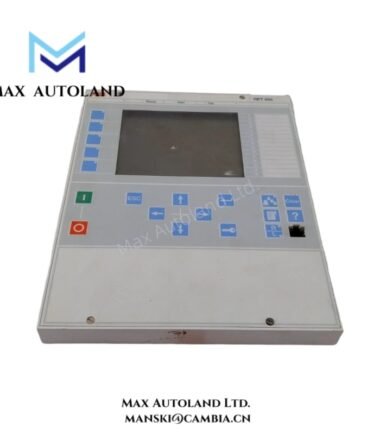

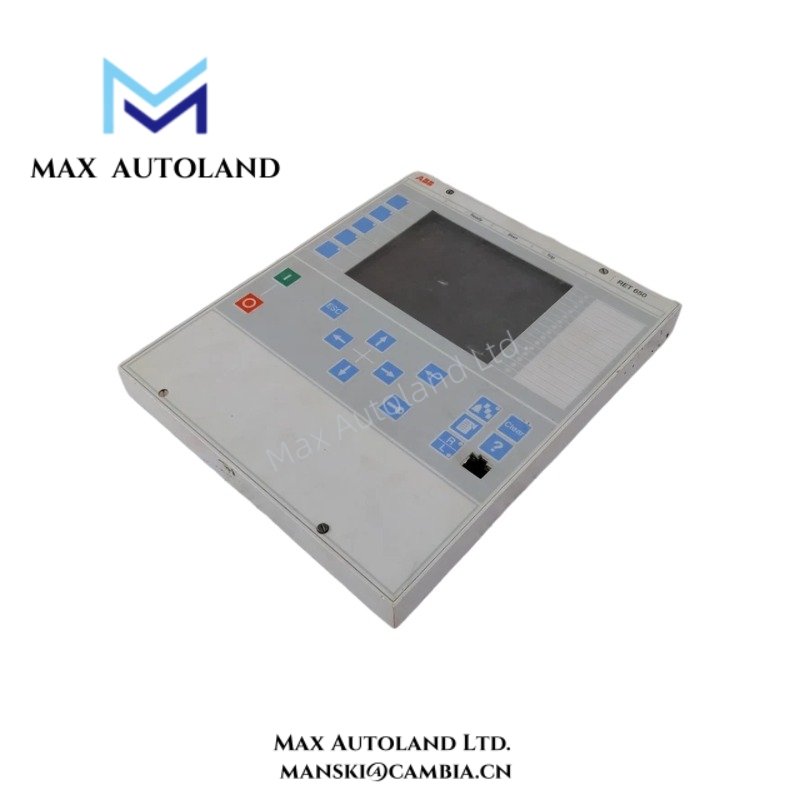

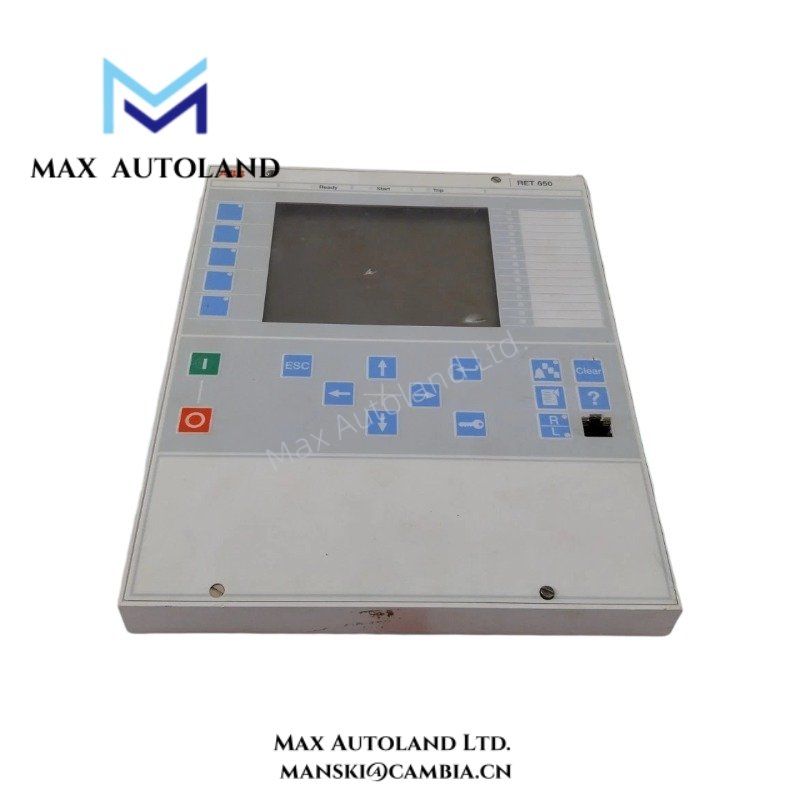

ABB Feeder Protection and Control RET650 1MRK008516-BA

Specification

Profinet Deterministic Networks and Firmware Compatibility

The RET650 platform operates within digital substation architectures requiring deterministic data transfer and synchronized event processing. Communication behavior depends on configured protocol stacks and station bus integration.

Within Relion 650 deployments, firmware compatibility must be verified before parameter migration, application upload, or configuration restoration. Protection settings, communication mappings, and logical node structures should remain aligned with the installed firmware revision and engineering tool environment.

I/O density scaling depends on the selected hardware configuration. Expansion of binary inputs, binary outputs, and communication resources affects application scope, signal mapping, and backplane resource allocation.

Frequently Asked Questions

Q: Does the RET650 support hot replacement during energized operation?
A: Protection relay replacement procedures depend on panel design, auxiliary supply isolation practice, and station operational rules. Configuration backup and communication verification should be completed before device exchange.

Q: Are firmware upgrades interchangeable across all RET650 configurations?
A: Firmware compatibility depends on hardware revision, installed options, and engineering project version. Validation of configuration files and communication definitions is required before firmware transition.

Q: What communication consideration applies when integrating the RET650 into IEC 61850 environments?
A: Logical node mapping, GOOSE messaging configuration, time synchronization method, and network engineering parameters must match the station architecture and system integration plan.

Field Installation Guidelines

Use shielded communication wiring where required by station design rules and maintain segregation between protection signal wiring and high-energy power conductors.

Verify auxiliary power polarity, terminal tightening condition, and grounding continuity before energization.

During panel commissioning, confirm communication addressing, protection setting upload integrity, binary I/O mapping, and event recording functionality against the engineered configuration set.
