Overview

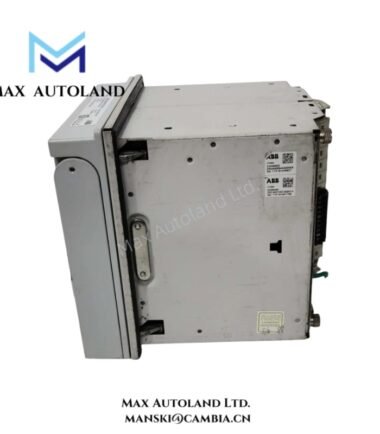

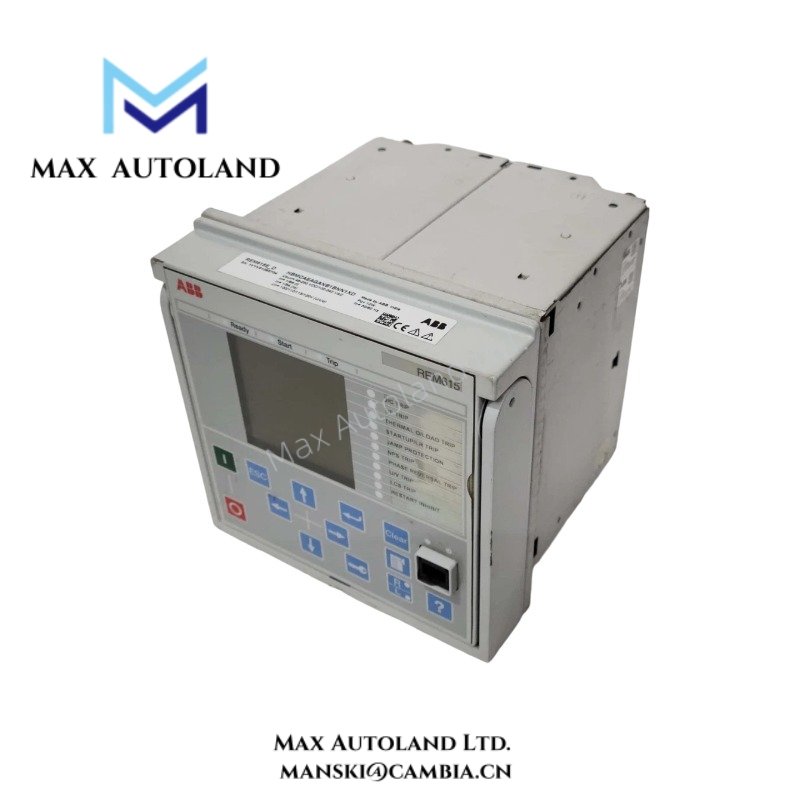

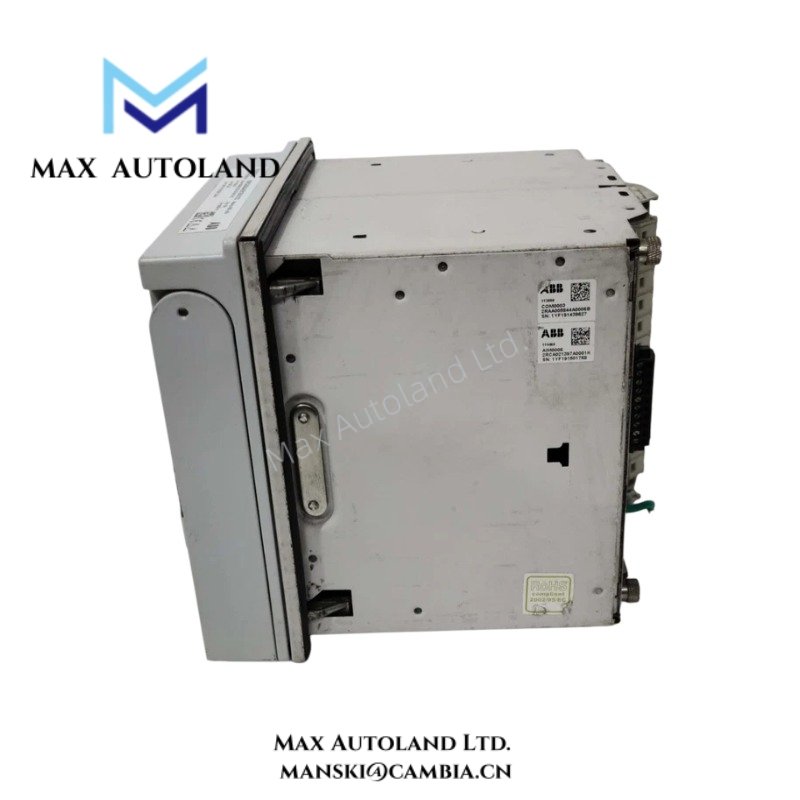

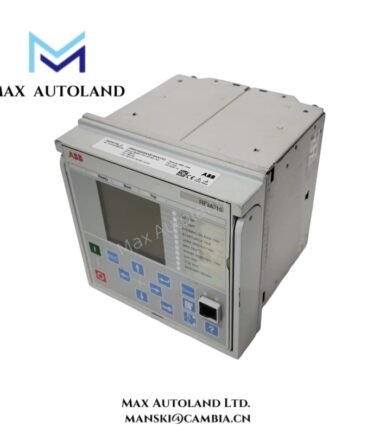

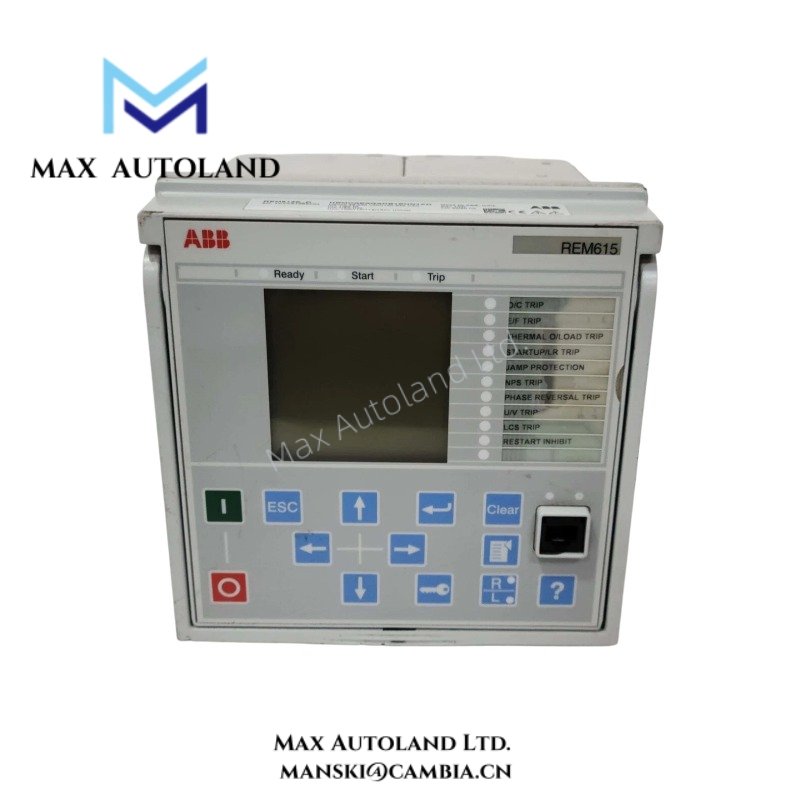

ABB REM615C is a dedicated feeder protection and control relay designed for modern distribution automation systems.
Moreover, it delivers reliable protection, precise control, and real-time monitoring for medium voltage feeder applications.
In addition, ABB REM615C supports advanced communication capabilities, enabling seamless integration into digital substation environments.
Functional Highlights
The relay provides comprehensive feeder protection functions with high-speed fault detection and selective tripping performance.
Moreover, it enhances system reliability by combining protection, control, and monitoring in a single intelligent device platform.
Therefore, engineers achieve faster commissioning and improved operational efficiency across complex distribution networks.
In addition, the device supports flexible configuration and adaptive protection settings for dynamic network conditions.
For instance, it allows easy integration with SCADA systems, improving visibility and remote operation capabilities significantly.
Specification
| Category | Specification |
|---|---|
| Model | ABB REM615C |
| Order Code | HCMBCCAHABB2BNN11E |
| Product Type | Feeder protection and control relay |
| Series | ABB Relion® 615 series platform |
| Application Scope | Medium voltage distribution feeder protection systems in utility and industrial networks |
| Protection Philosophy | Numerical protection with integrated control and monitoring functions |
| Protection Functions | Overcurrent protection (phase and ground), earth fault protection, thermal overload supervision, breaker failure protection |
| Protection Characteristics | Directional and non-directional protection elements with adaptive settings support |
| Control Functions | Circuit breaker control, interlocking logic, remote switching operations, bay-level automation |
| Monitoring Functions | Real-time measurements, status indication, condition monitoring, and diagnostics |
| Communication Protocols | IEC 61850, Modbus RTU, DNP3 |
| IEC 61850 Features | GOOSE messaging, horizontal communication, substation automation integration |
| SCADA Integration | Direct integration via multiple protocols for centralized monitoring systems |
| Peer-to-Peer Communication | Supported for fast inter-device protection signaling |
| Engineering Tool | ABB PCM600 IED Manager for configuration, parameterization, and logic design |
| Configuration Interface | Local HMI and PC-based engineering software |
| Mounting Type | Panel-mounted modular relay design for switchgear integration |
| Auxiliary Power Supply | 48–250 V DC wide-range input with stable substation operation |
| Power Consumption | Low-energy digital relay architecture optimized for continuous operation |
| Event Recording | Sequence of Events (SOE) with millisecond-level time stamping |
| Fault Recording | Detailed fault records for post-event analysis and diagnostics |
| Disturbance Recording | High-resolution waveform capture for transient fault analysis |
| Sampling Capability | High-speed sampling for accurate protection decision-making |
| Time Synchronization | SNTP, IRIG-B, and IEC 61850-based synchronization support |
| Operating Temperature Range | -25°C to +70°C industrial-grade environmental specification |
| Storage Temperature Range | -40°C to +85°C for logistics and long-term storage safety |
| Environmental Resistance | High immunity to electromagnetic interference and electrical noise |
| Installation Environment | Indoor substation panels and medium voltage switchgear rooms |
| Reliability Design | Designed for continuous operation in mission-critical power systems |
| Lifecycle Support | Long-term service support with ABB global protection system ecosystem |
FAQ
A1: It is mainly used for feeder protection, control, and monitoring in medium voltage distribution systems. Moreover, it ensures stable and reliable operation in utility and industrial networks.
Q2: Does ABB REM615C support IEC 61850 communication?
A2: Yes, it fully supports IEC 61850 communication. Therefore, it enables seamless integration into modern digital substation automation systems.
Q3: What protection functions are included in REM615C?
A3: It includes overcurrent protection, earth fault protection, thermal overload supervision, and breaker failure protection. In addition, these functions improve system safety and fault isolation speed.
Q4: Can ABB REM615C be integrated with SCADA systems?
A4: Yes, it integrates with SCADA systems through multiple communication protocols. Moreover, it supports real-time data exchange for efficient remote monitoring and control.
Q5: What engineering tool is used for configuration?
A5: Engineers use ABB PCM600 software for configuration and parameter management. Therefore, it simplifies setup and reduces commissioning time significantly.
Q6: Where is ABB REM615C typically applied?
A6: It is widely applied in utilities, industrial plants, and renewable energy distribution systems. In addition, it supports smart grid and feeder automation applications.
