Overview

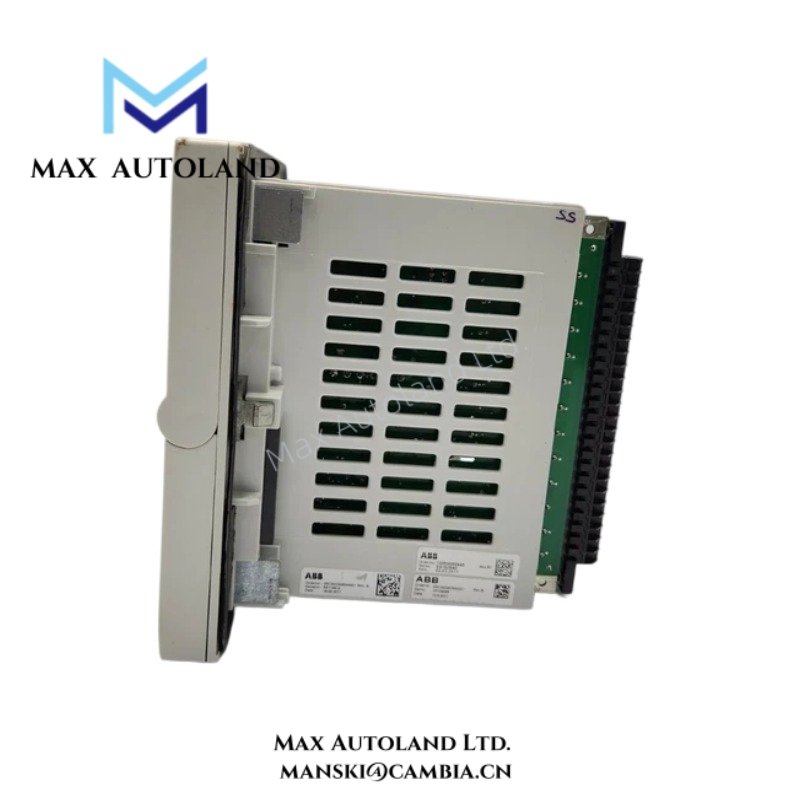

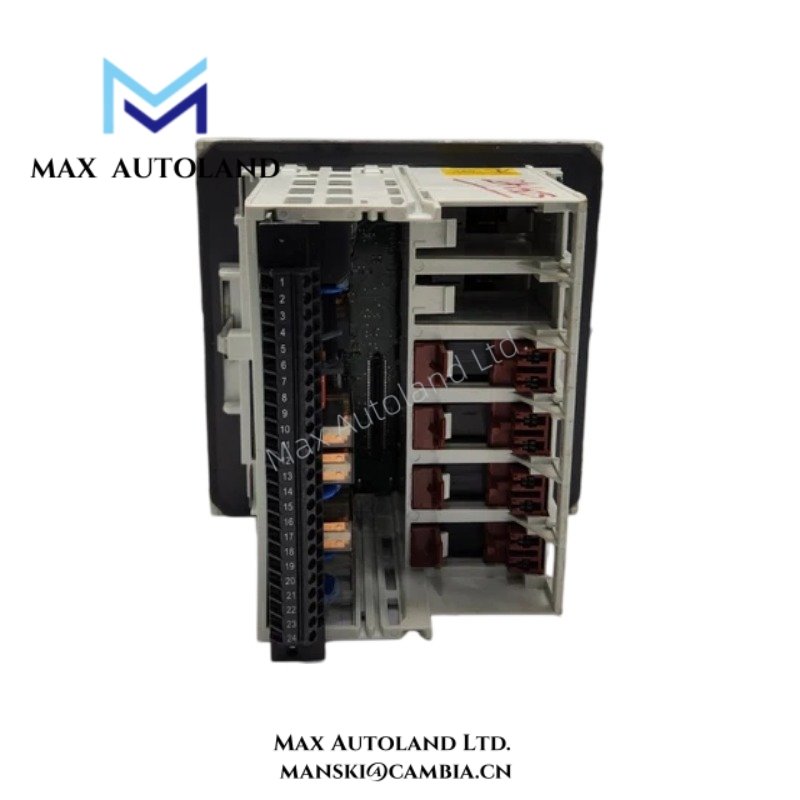

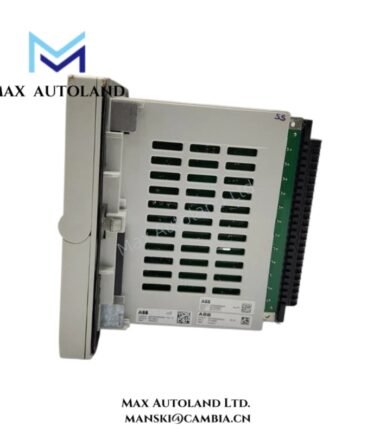

ABB REM610 is a dedicated motor protection and control relay designed for industrial motor management applications.
Moreover, it provides reliable protection, control, and monitoring functions for low and medium voltage motor systems.
In addition, ABB REM610 ensures safe motor operation and reduces downtime in critical industrial processes.
Functional Highlights
The relay delivers comprehensive motor protection with accurate fault detection and fast tripping performance.
Moreover, it integrates control, measurement, and supervision functions into a compact and intelligent device platform.
Therefore, operators achieve improved motor reliability and extended equipment lifetime in demanding environments.
In addition, it supports flexible parameter settings for different motor types and operating conditions.
For instance, engineers can easily configure protection levels based on load characteristics and startup behavior, improving operational precision.
Specification
| Category | Specification |
|---|---|
| Model | ABB REM610 |
| Product Type | Motor protection and control relay |
| Application Scope | Low and medium voltage motor protection systems in industrial and utility environments |
| Protection Philosophy | Numerical motor protection with integrated control, protection, and monitoring functions |
| Protection Functions | Overcurrent protection, earth fault protection, thermal overload protection, motor stall protection |
| Motor-Specific Protection | Locked rotor protection, start-up supervision, restart inhibit logic, phase loss protection |
| Protection Characteristics | Adaptive thermal model, multi-stage protection elements, fast and selective fault detection logic |
| Control Functions | Motor start/stop control, local/remote operation, basic interlocking functions |
| Motor Control Capability | Direct motor control with continuous operational status supervision |
| Measurement Functions | Current, voltage, power, energy, and motor load condition monitoring |
| Monitoring Capability | Continuous motor condition supervision and diagnostic evaluation |
| Communication Protocols | IEC 61850, Modbus RTU, DNP3 |
| IEC 61850 Features | GOOSE messaging, peer-to-peer communication, substation automation integration |
| SCADA Integration | Full compatibility with SCADA systems for centralized monitoring and control |
| Peer-to-Peer Communication | Supported for fast protection signaling between intelligent electronic devices |
| Engineering Tool | ABB PCM600 protection and control IED manager |
| Configuration Interface | Local HMI and PC-based engineering software support |

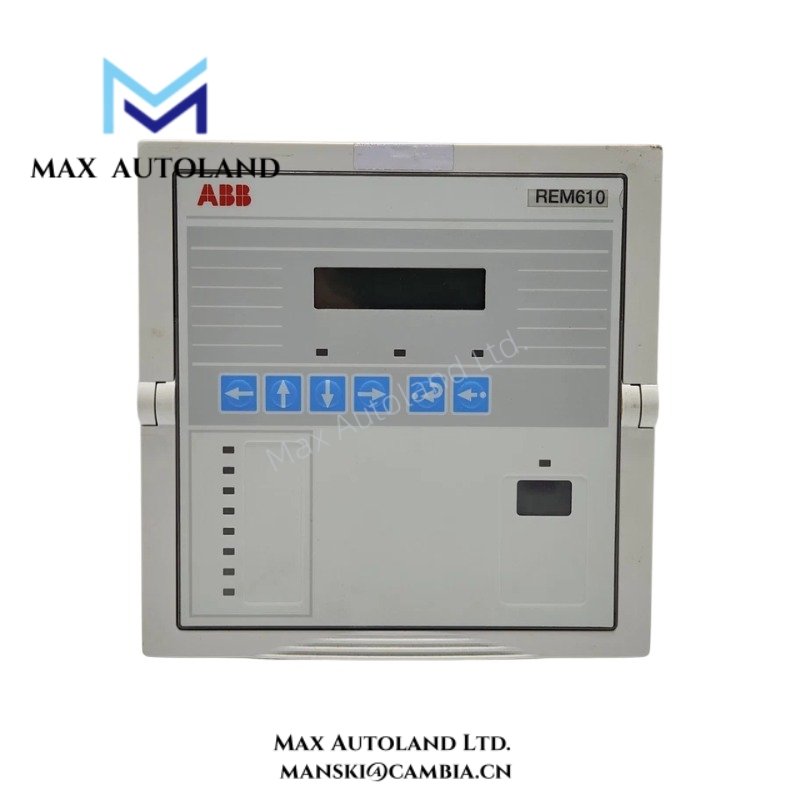

| HMI Interface | Local display with keypad-based navigation and system status indication |
| User Interface Type | Operator-friendly panel for quick access to alarms and settings |
| Mounting Type | Panel-mounted modular relay design for motor control center integration |
| Installation Environment | Industrial motor control centers and switchgear panels |
| Auxiliary Power Supply | 24–250 V DC wide-range input for flexible substation integration |
| Power Consumption | Low-power digital design optimized for continuous industrial operation |
| Event Recording | Sequence of Events (SOE) with precise time-stamped logging |
| Fault Recording | Detailed motor fault records for post-event analysis and troubleshooting |
| Disturbance Recording | High-resolution waveform capture for fault diagnostics and analysis |
| Sampling Performance | High-speed sampling for accurate motor protection decision-making |
| Time Synchronization | SNTP and IEC 61850-based synchronization support |
| Operating Temperature Range | -25°C to +70°C industrial-grade specification |
| Storage Temperature Range | -40°C to +85°C for logistics and long-term storage safety |
| Electromagnetic Compatibility | High immunity to industrial electrical noise and electromagnetic interference |
| Reliability Design | Engineered for continuous operation in mission-critical motor applications |
| Lifecycle Support | Supported within ABB Relion protection ecosystem for long-term service and upgrades |
FAQ
Q1: What is ABB REM610 mainly used for?
A1: It is mainly used for motor protection, control, and monitoring in low and medium voltage industrial systems. Moreover, it ensures safe motor operation while reducing unexpected downtime in critical processes.
Q2: Does ABB REM610 support IEC 61850 communication?
A2: Yes, it fully supports IEC 61850 communication. Therefore, it enables seamless integration into modern substation and industrial automation systems with improved interoperability.
Q3: What motor protection functions does REM610 include?
A3: It includes overcurrent protection, earth fault protection, thermal overload protection, motor stall protection, and phase loss protection. In addition, it provides locked rotor protection and start-up supervision for enhanced motor safety.
Q4: Can ABB REM610 control motor operations directly?
A4: Yes, it supports motor start/stop control, local/remote operation, and basic interlocking logic. Moreover, it ensures safe and coordinated motor operation across different control scenarios.
Q5: What engineering software is used for configuration?
A5: Engineers use ABB PCM600 software for configuration, parameter setting, and system management. Therefore, it simplifies commissioning and improves overall engineering efficiency.
Q6: Where is ABB REM610 typically applied?
A6: It is widely applied in industrial motor control centers, pumps, compressors, and conveyor systems. In addition, it is used in mining, oil and gas, and manufacturing industries for reliable motor protection.
