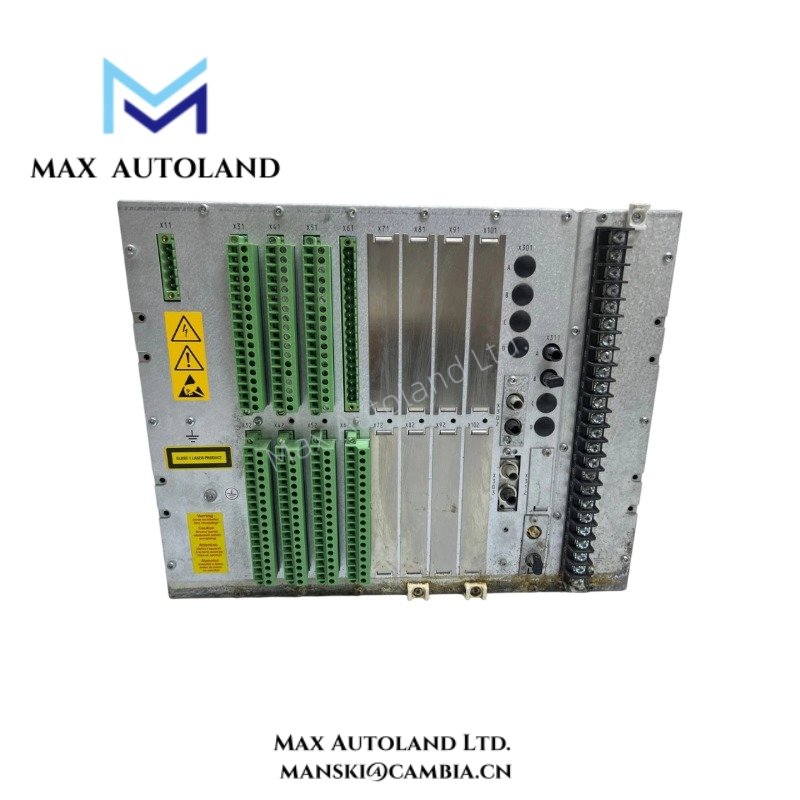

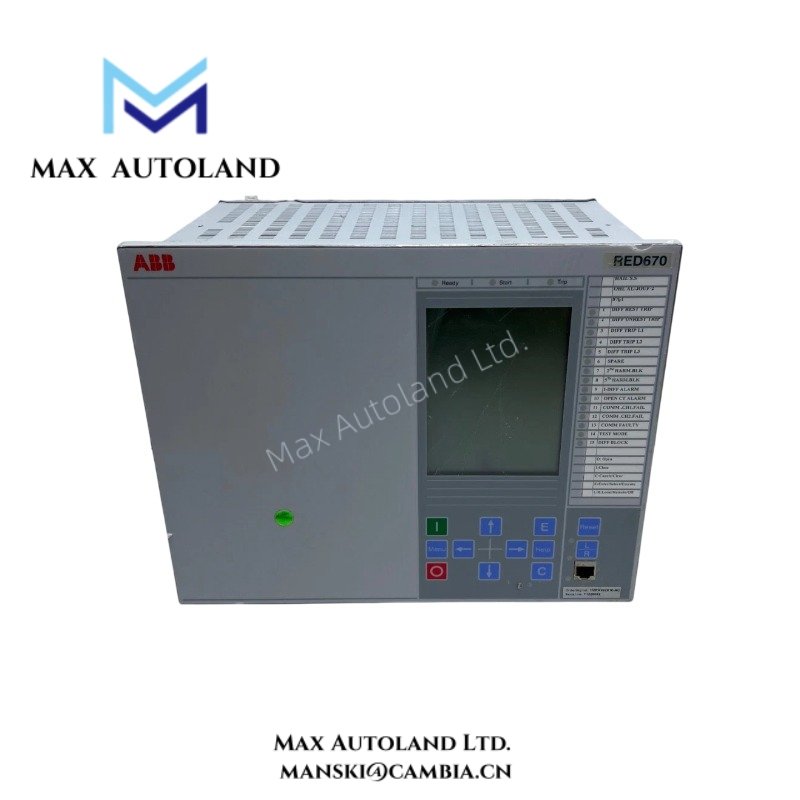

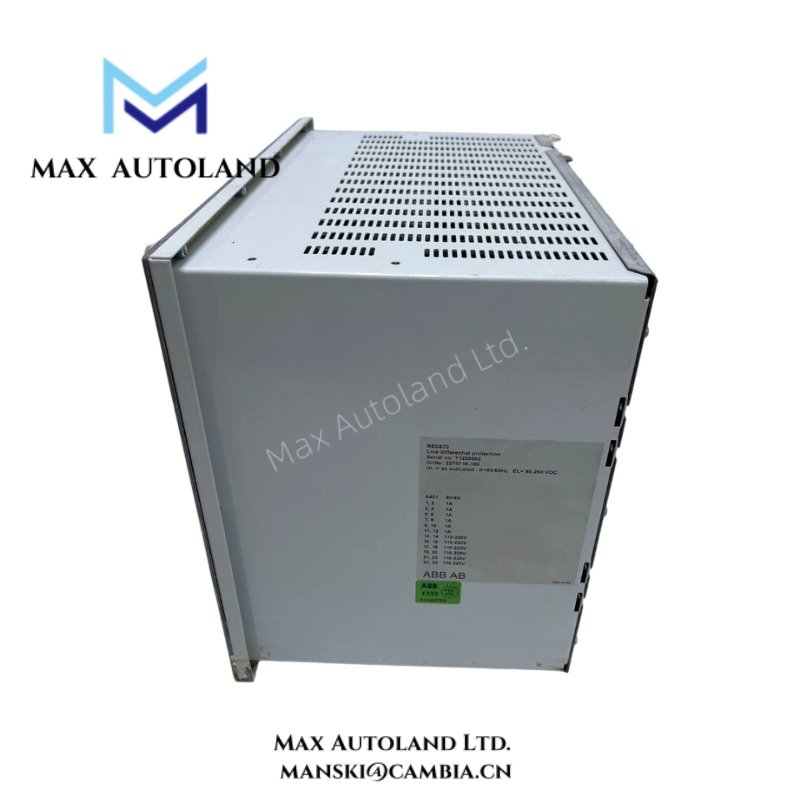

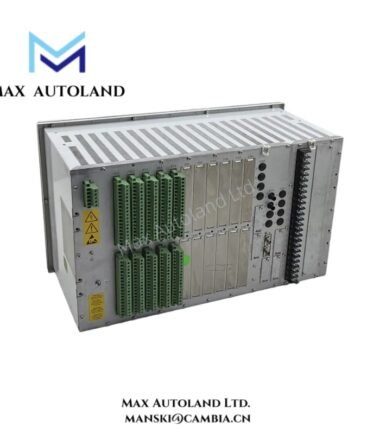

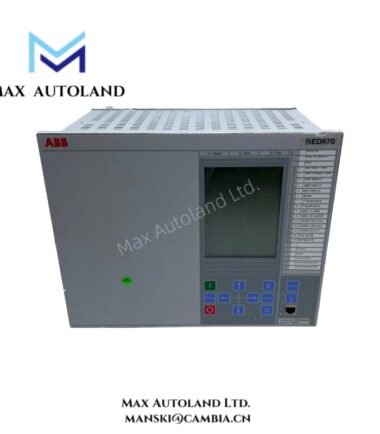

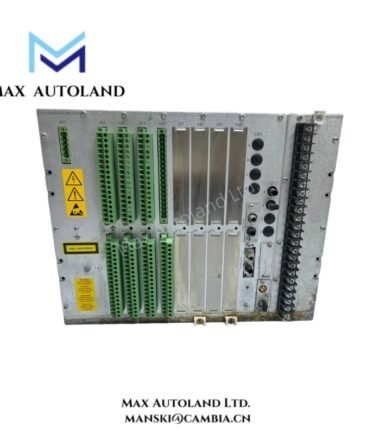

ABB Feeder Protection and Control RED670 1MRK002246-BC

Hardware Specifications

Firmware Flash Compatibility and Deterministic Communication Networks

Within ABB RED670 architectures, deterministic communication behavior depends on coordinated engineering between firmware revision levels, protection datasets, and communication mapping definitions. As a result, engineers must align IEC 61850 logical nodes, event structures, signal assignments, and protection application parameters across the active configuration environment.

Before initiating firmware flash activities, maintenance teams should verify compatibility between the target firmware package and the installed hardware revision. In parallel, engineers should validate configuration archives, communication datasets, and protection setting files. After configuration restoration, personnel should confirm binary I/O assignments, logical node mapping, and communication object consistency to maintain predictable protection and station bus behavior.

Frequently Asked Questions

Q: Does the RED670 permit firmware replacement during active protection operation?
A: Firmware management depends on the installed application logic, operational maintenance practice, and approved commissioning workflow. Therefore, technicians should complete version migration only after validating backups, compatibility conditions, and recovery procedures.

Q: Does configuration transfer automatically preserve communication datasets?
A: Dataset retention depends on the engineering toolchain and configuration handling sequence. After loading a configuration package, users should revalidate communication objects, logical node assignments, and signal routing integrity.

Q: Does the relay require wiring separation between protection communication and power conductors?
A: Yes. Installers should physically segregate communication cables, CT/VT measurement circuits, and auxiliary power wiring to reduce conducted interference and inductive coupling.

Field Installation Guidelines

Verify terminal labeling, CT polarity, VT assignment, binary input allocation, trip output wiring, and auxiliary power termination before energization.

Next, apply cable shield termination according to the substation grounding strategy. In addition, avoid extended parallel routing between communication conductors and switching power cables.

Before placing the relay into operational service, confirm configuration download completion, communication addressing, trip circuit continuity, disturbance recording behavior, and protection setting consistency against approved engineering documentation.
