Overview

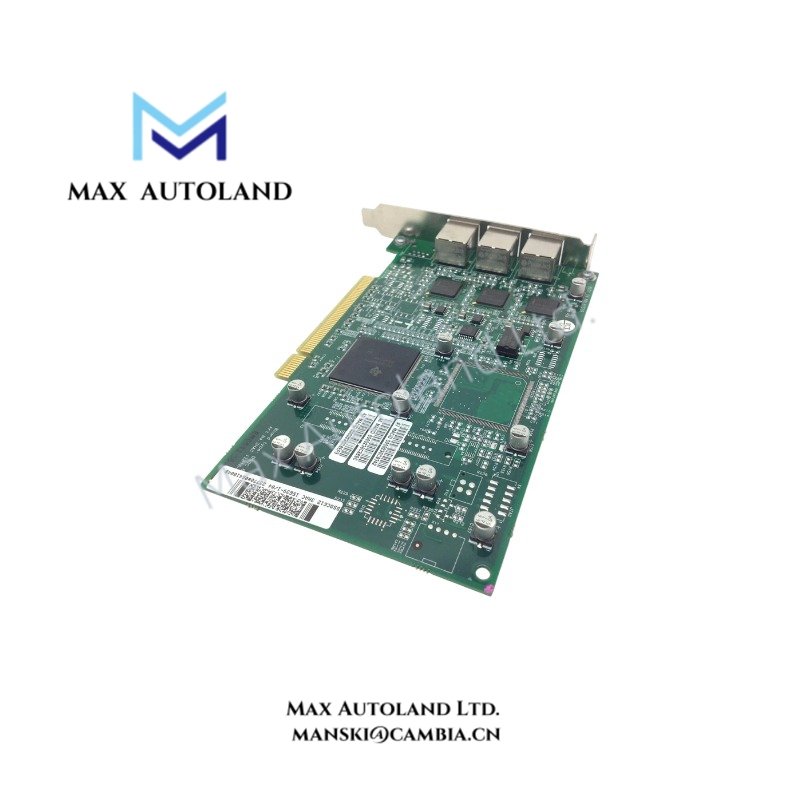

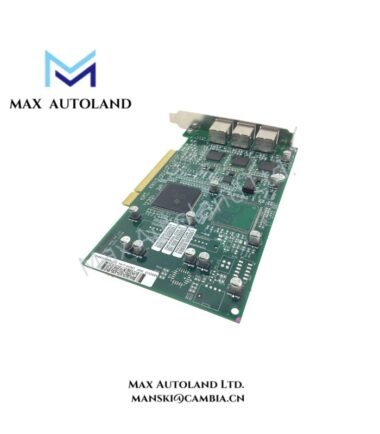

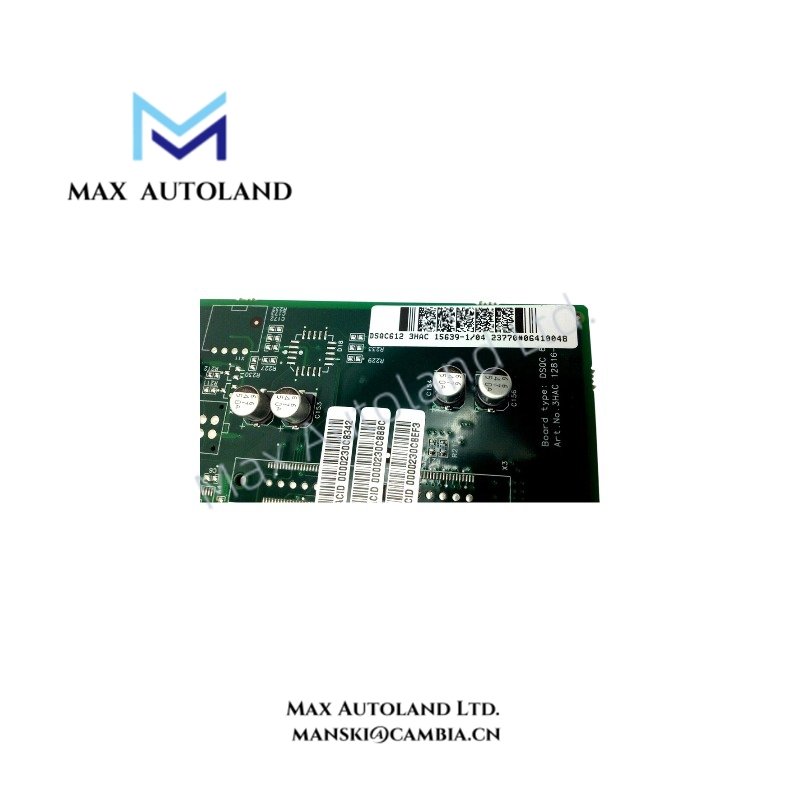

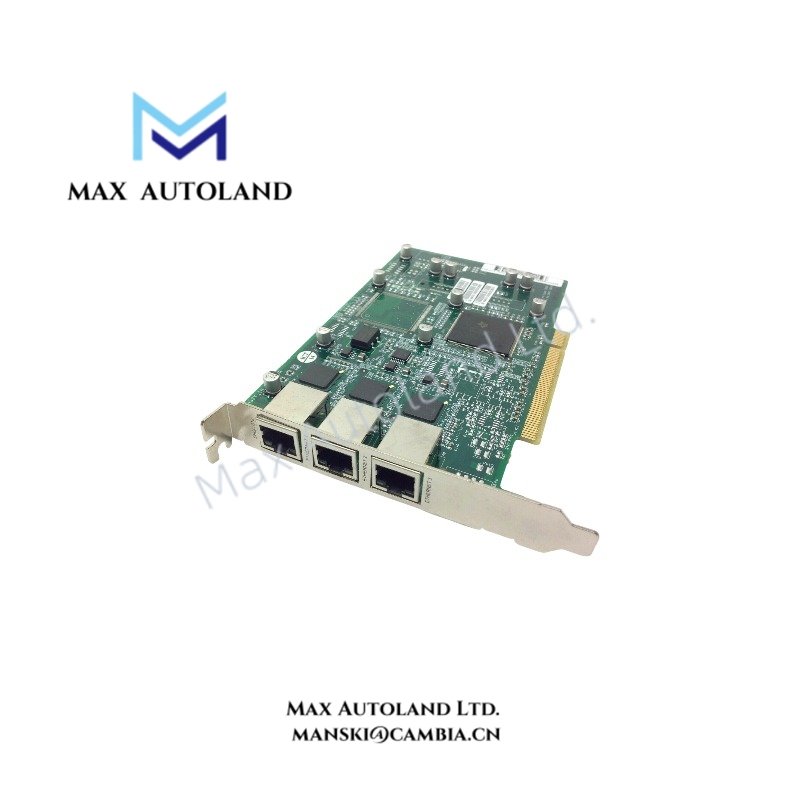

The ABB DSQC612 (3HAC15639-1), also cataloged as the DSQC612 Communication Interface Board, operates as a dedicated hardware component for real-time data communication between the IRC5 controller main computer unit and connected peripheral communication networks.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DSQC612 |
| Brand | ABB |
| Origin | Sweden / Estonia |
| Weight | Approx. 0.45 kg |
| Dimensions | Approx. 150 mm x 120 mm x 30 mm |
| Operating Temp | 0 deg C to +55 deg C |
| Power Consumption | Internal controller backplane supply, value defined by controller configuration |
| Product Type | Communication Interface Board |
| Part Number | 3HAC15639-1 |
| Controller Compatibility | ABB IRC5 Controller Series and selected S4C+ variants |
| Mounting Method | Plug-in installation inside controller cabinet |
| Communication Function | Controller CPU and peripheral network data exchange |
ABB Industrial Controller Communication Features
The ABB DSQC612 provides physical and electrical communication between the IRC5 controller processing unit and external interface networks. It operates through the controller backplane architecture, allowing configured communication channels to exchange control data, status information, and diagnostic signals.
The board supports ABB controller firmware integration and requires correct software parameter configuration for assigned communication functions. In addition, firmware flash compatibility must match the target IRC5 controller hardware revision to maintain proper system recognition.
The DSQC612 applies ABB industrial control design principles, including backplane bus communication velocity management and deterministic controller data handling. Therefore, installation requires verification of controller generation, software version, and paired hardware modules before replacement.
Frequently Asked Questions
Q: Is the DSQC612 a standalone communication module with external field wiring terminals?
A: No. The DSQC612 is an internal controller communication board installed inside the ABB robot controller system. External communication interfaces depend on the controller configuration and connected interface modules.
Q: Does the DSQC612 require firmware compatibility checking before installation?
A: Yes. The board firmware and hardware revision must match the ABB IRC5 controller software environment to ensure correct initialization and communication functions.
Q: Can the DSQC612 be installed in a hot-swap configuration?
A: No. The board is designed for internal controller installation. Power isolation and controller shutdown procedures should be completed before removal or replacement.
Field Installation Guidelines
- Disconnect controller power before accessing the internal rack or backplane assembly.
- Confirm the DSQC612 part number and hardware revision before installation.
- Insert the board into the designated controller slot and verify mechanical alignment with the backplane connector.
- Maintain proper grounding between the controller cabinet and connected communication equipment.
- Route communication cables separately from high-current motor power cables to reduce electrical interference.
- Verify controller software configuration after installation and check diagnostic messages through the ABB robot system interface.
