Overview

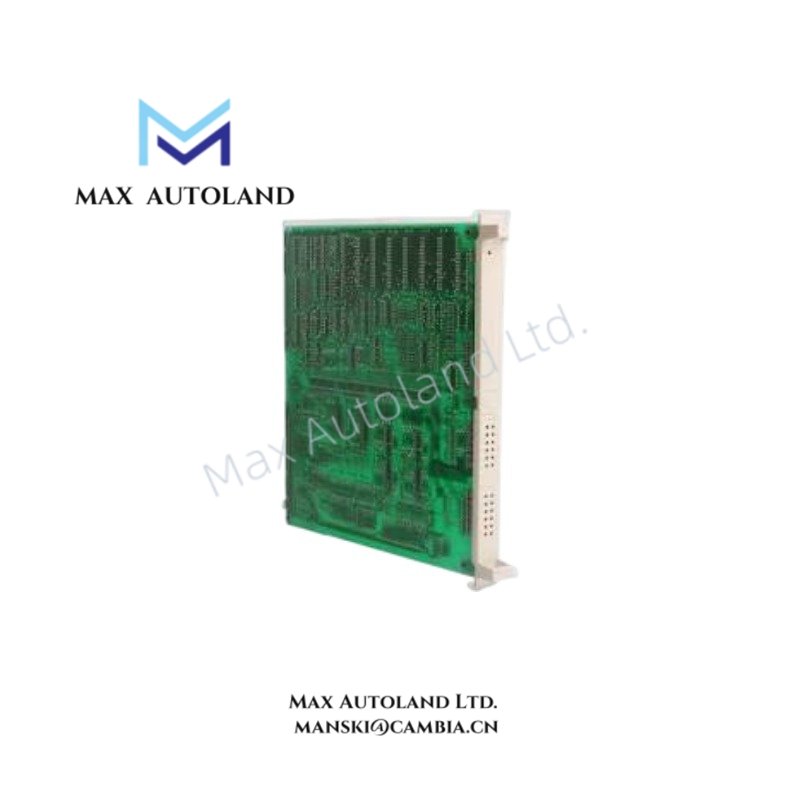

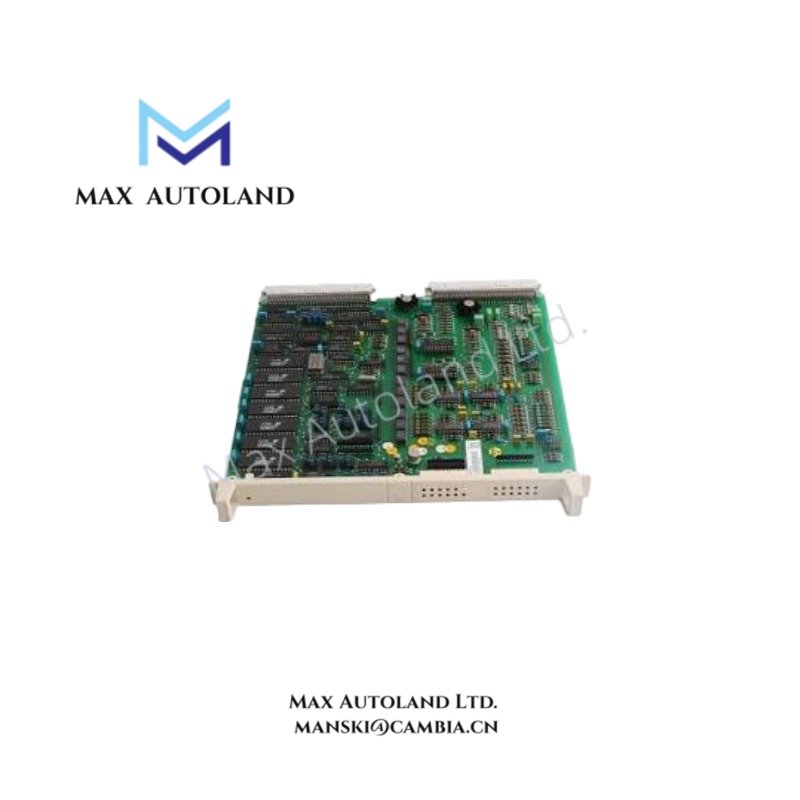

The ABB DSDP150 also cataloged as the 57160001-GF Pulse Encoder Input Module, operates as a dedicated hardware component for pulse acquisition, counting, and position feedback processing within ABB PLC backplane control systems. The ABB DSDP150 (57160001-GF Pulse Encoder Input Module) provides direct electrical capture and conditioning of high-speed encoder pulse trains for deterministic processing across PLC/DCS I/O architectures.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DSDP150 |
| Brand | ABB |
| Origin | Sweden |
| Weight | 0.38 kg |
| Dimensions | 2 x 25 x 24.5 cm (shipping size) |
| Functional Type | Pulse counting and positioning input module |
| Spare Model | 57160001-GF |
| Signal Interface | Incremental pulse encoder inputs |
| System Integration | ABB PLC backplane I/O architecture |
Backplane Communication and High-Speed Pulse Acquisition Behavior
Within ABB industrial automation platforms, pulse encoder modules such as DSDP150 are integrated into deterministic backplane communication structures supporting synchronized I/O sampling. Signal acquisition is processed through internal counter logic optimized for high-frequency pulse trains from incremental encoders.
Backplane transfer timing is aligned with cyclic PLC scan execution, allowing stable position reconstruction under variable rotational speeds. Electrical input conditioning includes noise suppression for long cable runs and industrial EMI environments. Firmware compatibility is tied to ABB controller generations supporting legacy I/O module addressing schemes and backplane mapping consistency.
Frequently Asked Questions
Q: Does the DSDP150 support hot-swap insertion in live backplane systems?
A: Hot-swap capability depends on the host ABB rack system. Electrical backplane isolation must be verified before insertion to prevent counter register corruption.
Q: What type of encoder signals can be processed?
A: The module is designed for incremental pulse encoder inputs, typically A/B phase signals with optional reference index input depending on system configuration.
Q: How is backplane load managed during high-frequency pulse acquisition?
A: Load is distributed through ABB rack communication cycles, with internal buffering used to prevent pulse loss during peak transition events.
Field Installation Guidelines
Ensure the module is inserted into a powered-down or backplane-isolated slot unless the system explicitly supports live insertion. Verify correct rack addressing alignment before commissioning. Shielded twisted pair cabling is recommended for encoder signal lines, with shield termination at a single-point ground reference to minimize ground loop interference.
Cable routing should be separated from high-voltage switching conductors and VFD output lines. Maintain minimum bend radius consistent with industrial encoder cable specifications to avoid signal distortion. All terminal connections must be mechanically secured to prevent micro-disconnection under vibration.
