ABB Bailey Infi 90 and Net 90 NKTU01-10 Termination Unit Cable

Overview

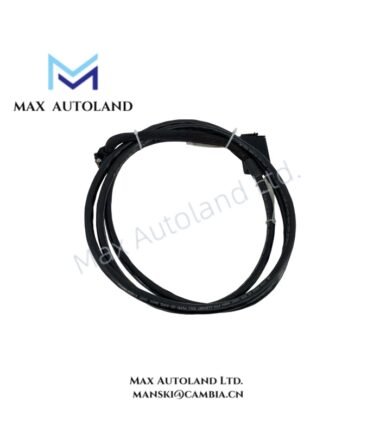

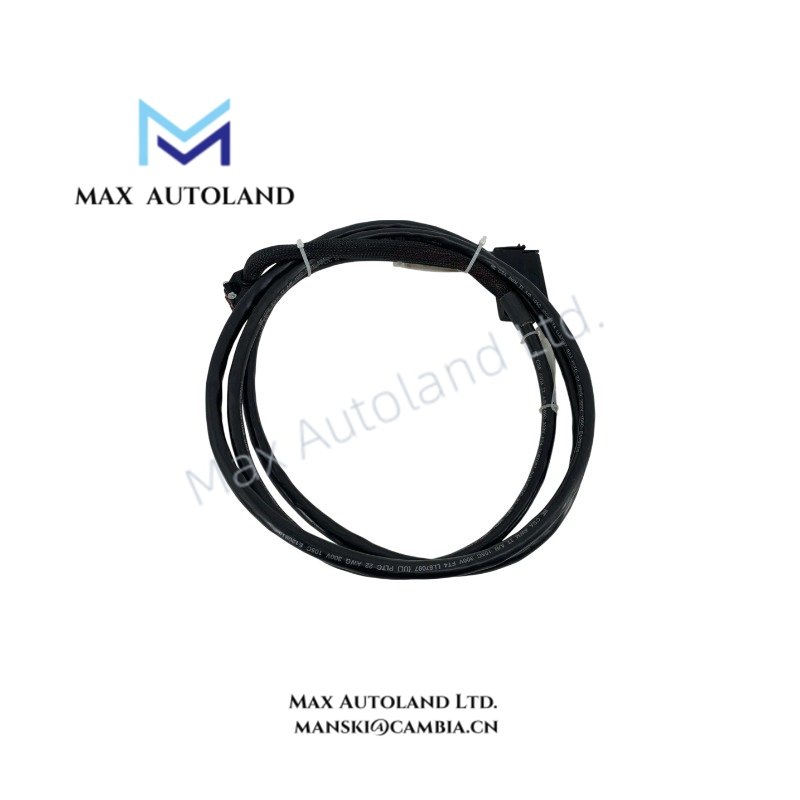

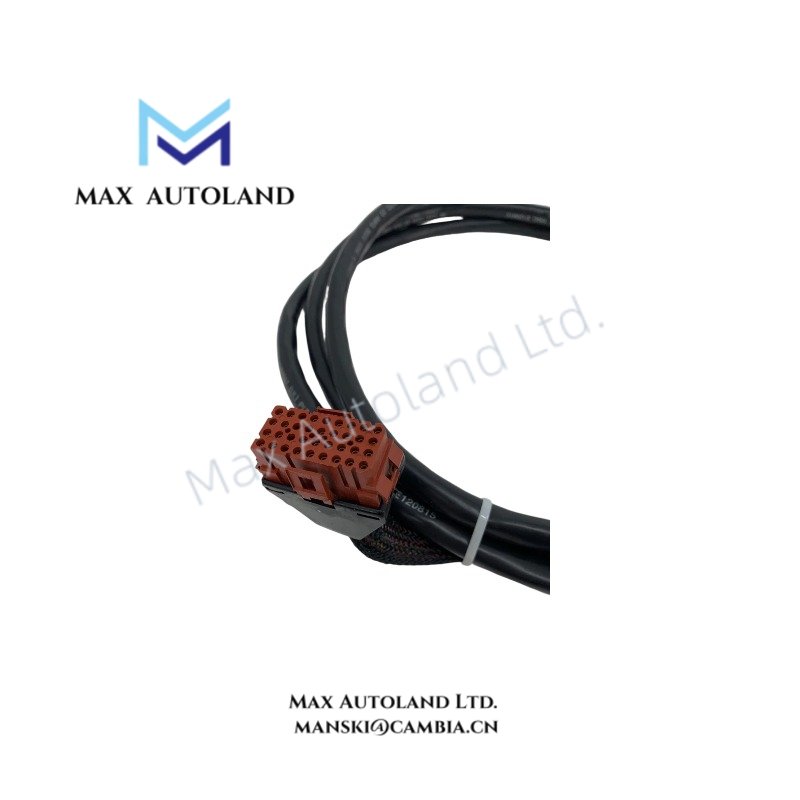

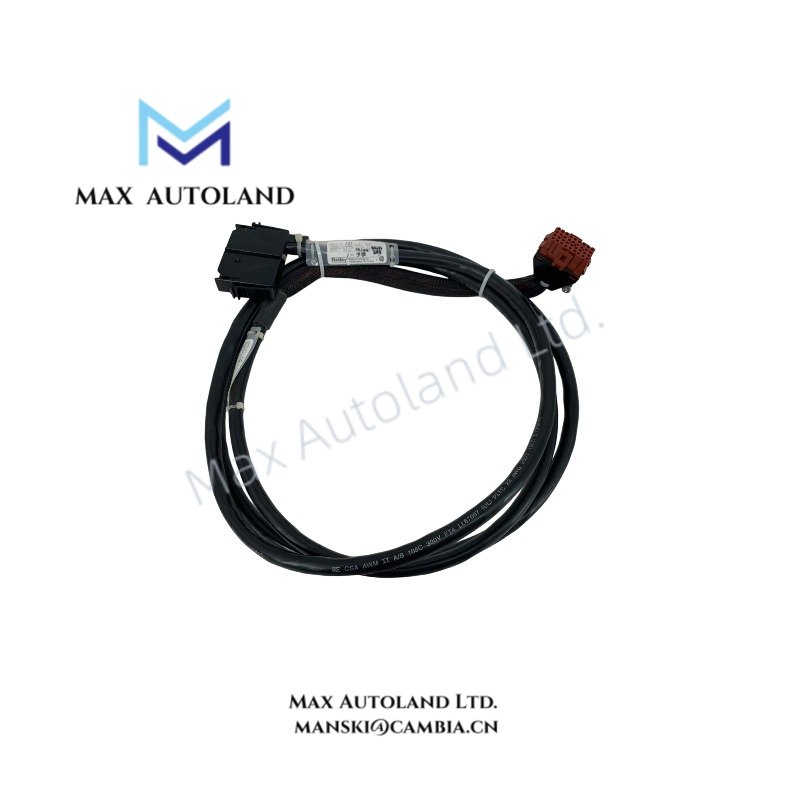

Configured for signal interconnection between I/O modules and termination units in industrial control architectures, the ABB NKTU01-10 (NKTU01-10 I/O Module to Termination Unit Cable) provides direct physical/electrical execution for point-to-point termination loop continuity within ABB I/O subsystem wiring networks.

Suffix Breakdown & Model Matrix

• NKTU: Cable assembly designation for I/O module to termination unit linkage
• 01: Internal series identifier for termination loop configuration
• 10: Length designation corresponding to 10 ft cable assembly

Hardware Specifications

Industrial Control & ABB Backplane Integration Characteristics

Deterministic I/O Signal Routing and System-Level Communication Integrity

Within ABB industrial control architectures, cable assemblies such as NKTU01-10 function as passive interconnect media supporting deterministic signal transfer between I/O modules and termination units. The physical routing design maintains electrical continuity required for stable backplane-adjacent signal distribution, ensuring consistent execution of module-to-terminal mapping across distributed control environments.

Signal integrity is dependent on controlled impedance behavior across the cable length, with shielding and conductor layout optimized for low cross-talk susceptibility in dense cabinet wiring configurations. Firmware-level system recognition is not applicable; however, correct physical layer installation remains critical for backplane communication stability in PLC/DCS topologies involving Profinet or equivalent industrial Ethernet segmentation.

ABB Platform Wiring Architecture Compatibility Notes

ABB modular control systems may utilize standardized termination unit layouts where cable assemblies serve as fixed interconnect layers between field I/O and control chassis. The NKTU01-10 operates strictly at physical layer 1, without protocol interpretation, supporting direct electrical continuity for digital and analog signal paths routed through termination hardware blocks.

Frequently Asked Questions

Q1: Does the NKTU01-10 support hot-swap during system operation?
A1: No. As a passive termination cable, disconnection under energized conditions may introduce signal discontinuity across I/O channels.

Q2: Is shielding continuity maintained across both ends of the cable?
A2: Shield continuity is maintained through the cable assembly design; proper cabinet grounding is required at termination points.

Q3: Does this cable require firmware or configuration matching?
A3: No firmware interaction exists. Electrical continuity depends solely on correct mechanical installation and pin-to-pin alignment.

Field Installation Guidelines

• Ensure system power is isolated before installation or removal
• Verify correct alignment between I/O module connector and termination unit interface
• Maintain minimum bend radius consistent with industrial PVC insulated cable practices
• Ensure shield termination is bonded to cabinet ground at designated grounding points
• Avoid routing parallel to high-noise power conductors to minimize induced coupling
• Confirm full seating of connectors to prevent intermittent contact resistance
