Overview

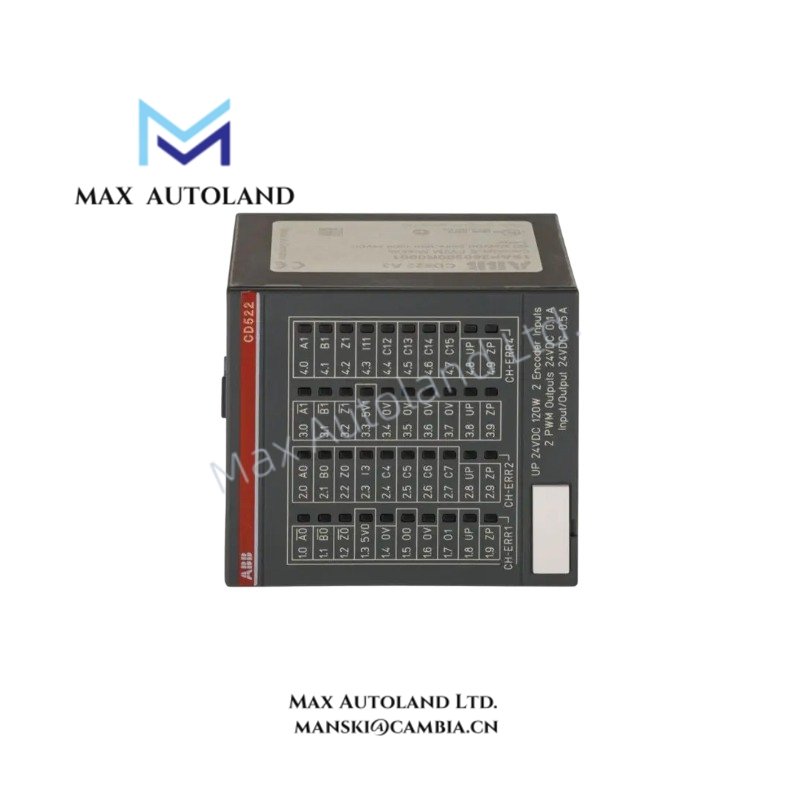

Configured for discrete signal acquisition and output switching in ABB Advant OCS control architectures, the ABB CD522 (CD522 Digital Input/Output Module) provides direct physical/electrical execution. The module is associated with ABB control platforms and interfaces field-level digital signals through the system I/O structure for monitoring and control functions.
Suffix Breakdown & Model Matrix
No official suffix matrix or variant breakdown is provided in the available data for CD522. The documented catalog references are:
| Parameter | Specification |
|---|---|
| Model | CD522 |
| Alternate Part Numbers | 1SAP 260 300 R0001 |
| Product Type | Digital Input/Output Module |
| Brand | ABB |
| Product Family | ABB Advant AC500 |
| Control Platform Association | ABB Advant OCS |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | CD522 |
| Brand | ABB |
| Origin | Not specified |
| Product Family | ABB Advant AC500 |
| System Association | ABB Advant OCS |
| Module Type | Digital Input/Output Module |
| Alternate Part Number | 1SAP 260 300 R0001 |
| Dimensions | 2.8 in x 3.0 in x 2.5 in (7.0 cm x 7.6 cm x 6.4 cm) |
| Weight | 0 lbs 4.8 oz (0.1 kg) |
| Operating Temp | Not specified |
| Power Consumption | Not specified |
| Mounting Method | Not specified |
| Signal Category | Digital Inputs and Outputs |
Backplane Communication and I/O Density Considerations
Within ABB controller environments, digital I/O modules exchange process image data through the controller backplane communication structure. System performance is influenced by controller scan execution, backplane update mechanisms, and configured I/O density. When integrating the CD522 module, firmware compatibility between the controller CPU, engineering software, and installed I/O hardware should be verified before commissioning or replacement activities.
For mixed I/O installations, channel allocation and address mapping should be validated during system configuration to prevent overlap between digital input and digital output assignments. Backplane communication status indicators and controller diagnostics should be reviewed following installation or maintenance procedures.
Frequently Asked Questions
Q: Does the CD522 support hot-swapping during operation?
A: Available documentation supplied here does not specify hot-swap capability. Module replacement procedures should follow the controller and system maintenance instructions applicable to the installed ABB platform.
Q: Are firmware compatibility checks required when replacing a CD522 module?
A: Yes. Compatibility between the controller firmware, engineering tools, and installed I/O modules should be confirmed before module replacement or system startup.
Q: What should be verified after installation of a digital I/O module?
A: Verify module recognition by the controller, I/O addressing, field wiring continuity, channel diagnostics, and correct input/output status transitions under operational testing.
Field Installation Guidelines
- Isolate control power according to plant lockout and tagout procedures before installing or removing the module.
- Confirm terminal assignments against the approved control system drawings prior to energization.
- Route digital signal wiring separately from high-current motor and drive power cables where practical.
- Terminate cable shields according to site grounding standards to minimize electrical noise coupling.
- Verify proper module seating within the rack or mounting assembly before applying power.
- Inspect connectors and terminals for mechanical damage, loose conductors, or contamination during maintenance intervals.
- Perform controller diagnostics and functional I/O verification after installation or replacement activities.
