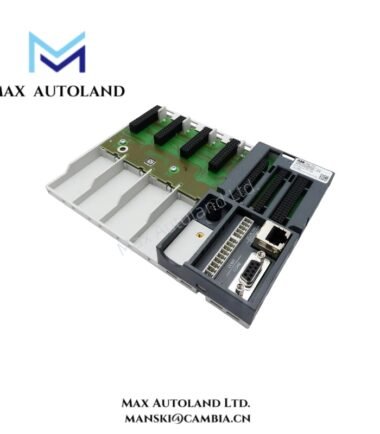

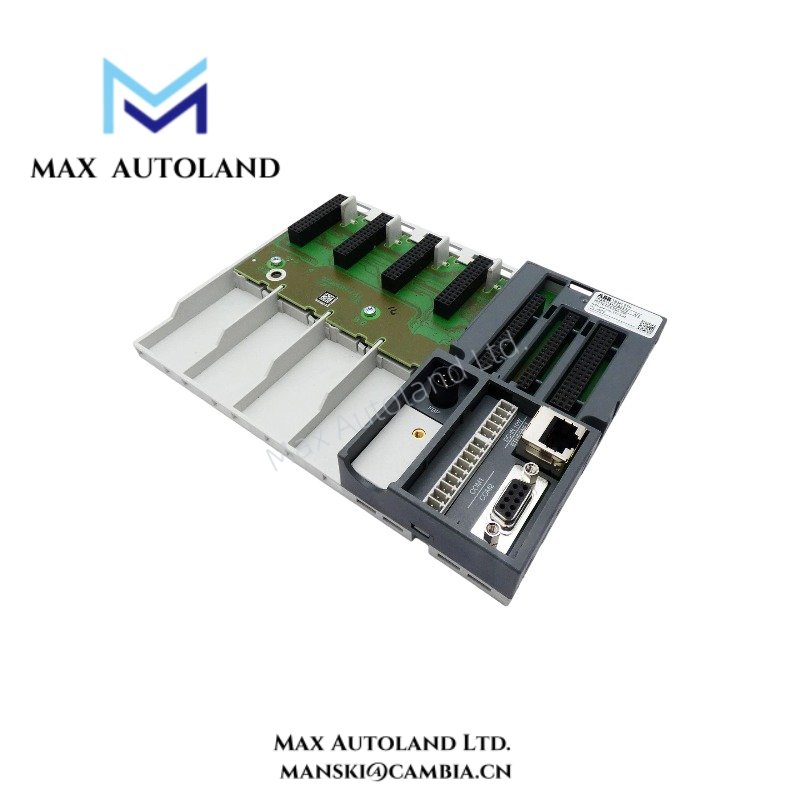

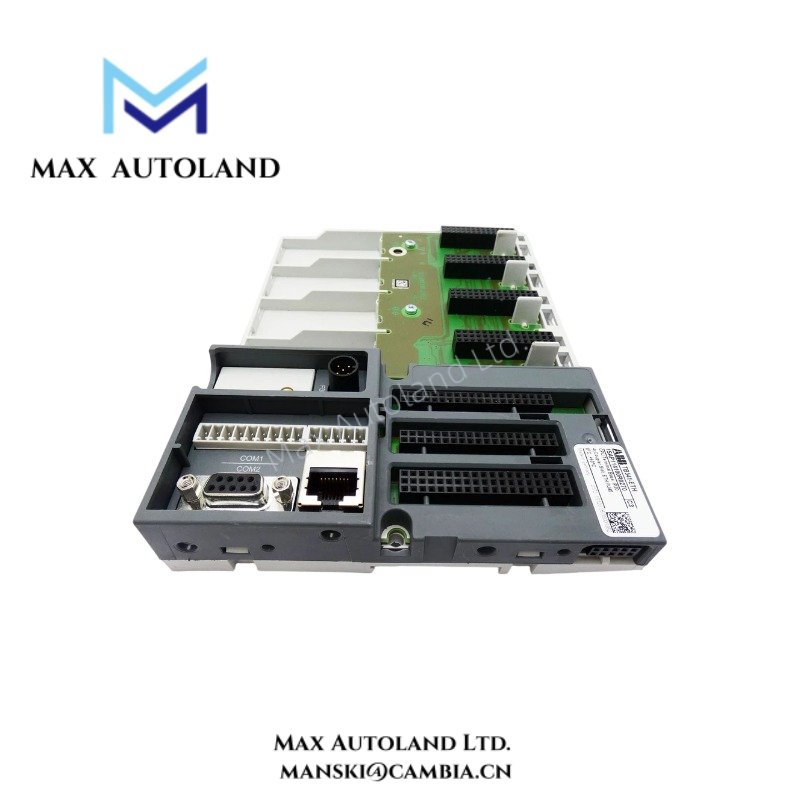

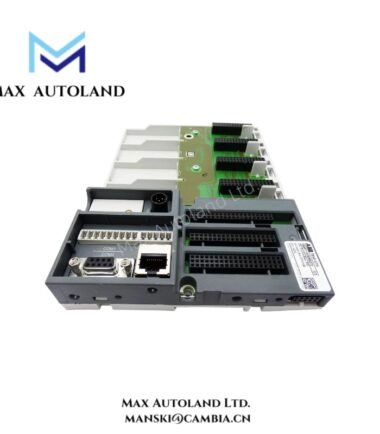

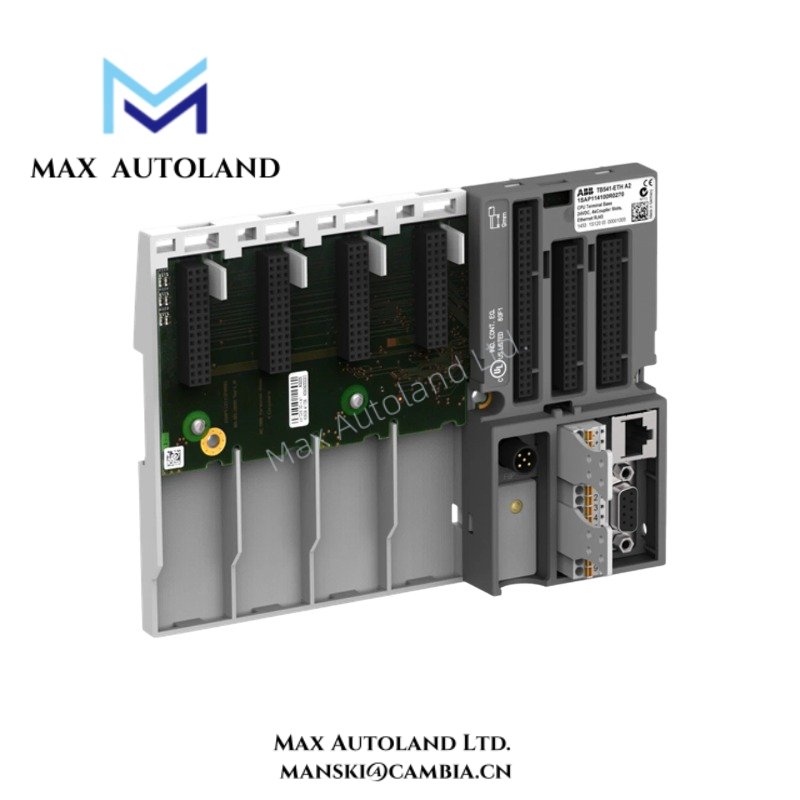

ABB Advant OCS/800xA TB541-ETH Communication Interface Modules

Overview

Configured for Ethernet-based fieldbus communication in ABB control system architectures, the ABB TB541-ETH (TB541 Ethernet Bus Base Module) provides direct physical/electrical execution. The module functions as a communication base unit for Ethernet-connected I/O assemblies and supports integration within ABB automation platforms through standardized bus interfaces.

Hardware Specifications

I/O Density Scaling and Network Integration

The TB541-ETH provides the physical infrastructure required for Ethernet-connected I/O assemblies within ABB automation systems. The module establishes communication paths between connected field modules and the associated control architecture through the integrated bus interface.

Furthermore, engineers can expand I/O capacity by adding compatible field modules without modifying the primary controller hardware configuration. As a result, the platform supports scalable I/O deployment while maintaining deterministic communication across Ethernet-based network segments. In addition, the bus base architecture preserves compatibility with supported ABB distributed I/O hardware families.

Frequently Asked Questions

Q: Does the TB541-ETH perform control processing functions?

A: No. The module operates as a communication and mounting base for connected I/O hardware. Control execution remains within the associated controller platform.

Q: Can technicians replace the module while the system remains energized?

A: Available documentation does not explicitly define hot-swap capability. Therefore, technicians should follow the maintenance procedures specified for the installed control system.

Q: Does the TB541-ETH require separate network grounding practices?

A: Yes. Engineers should apply shielding and grounding practices specified by site standards and Ethernet installation guidelines to minimize communication interference.

Field Installation Guidelines

• First, install the module on a properly grounded DIN rail.
• Next, verify mechanical engagement before connecting field wiring.
• Additionally, route Ethernet cables separately from high-voltage conductors.
• Maintain recommended cable bend radius throughout the installation.
• Furthermore, terminate cable shields according to site grounding requirements.
• After installation, verify network link status and communication diagnostics.
• Finally, document network addresses and cabinet locations for future maintenance activities.
