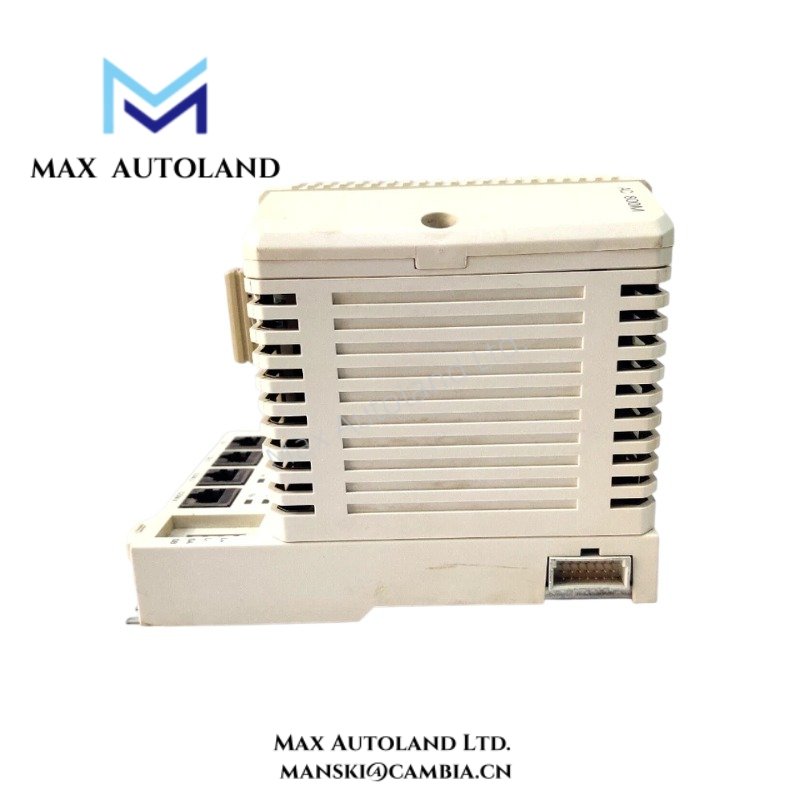

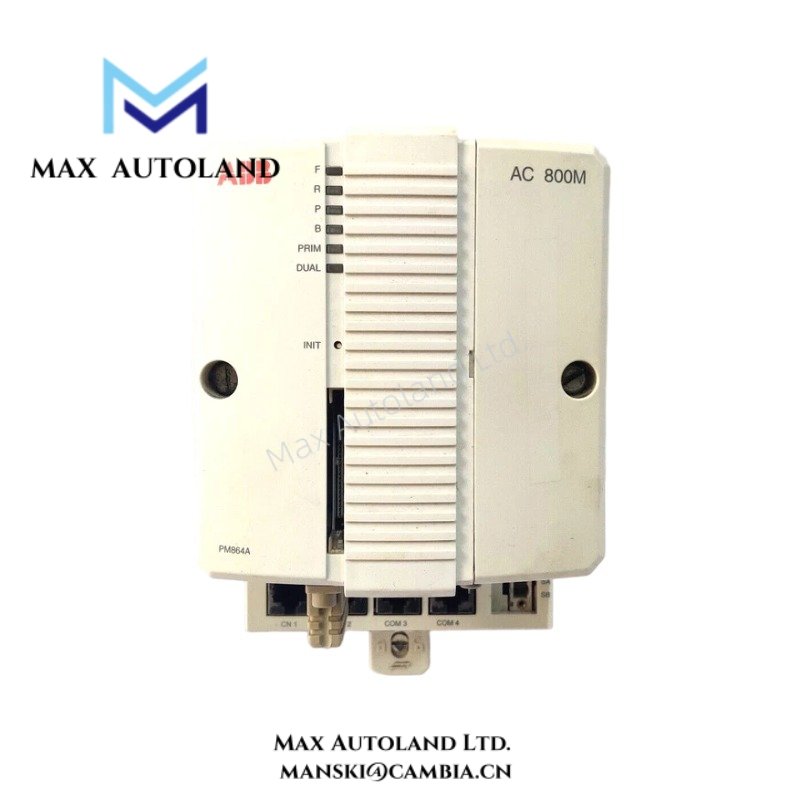

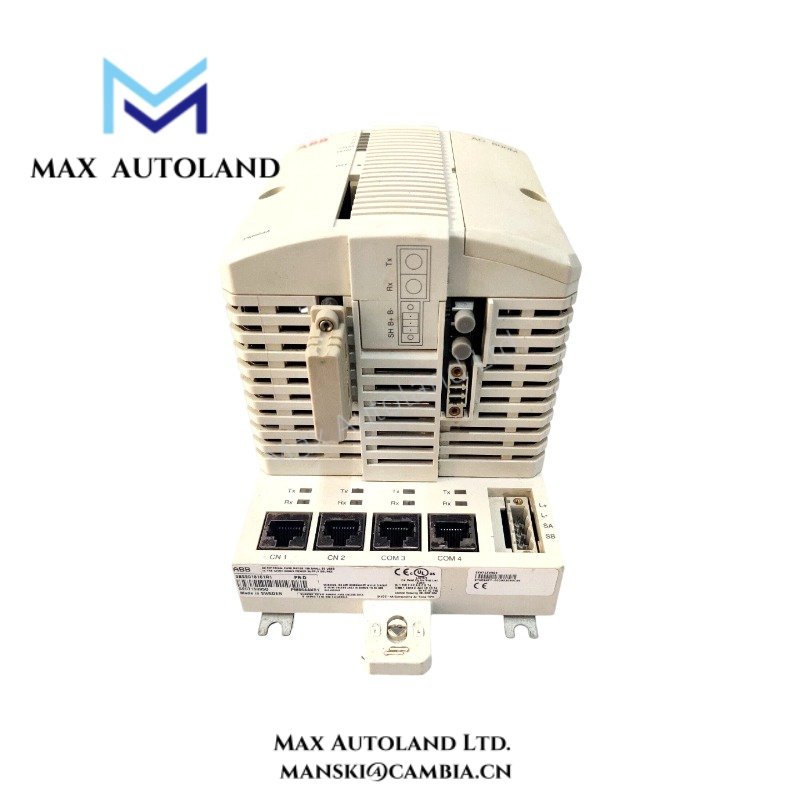

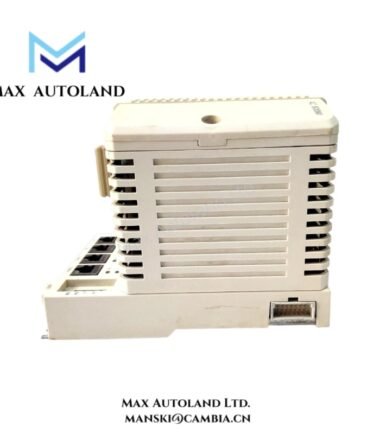

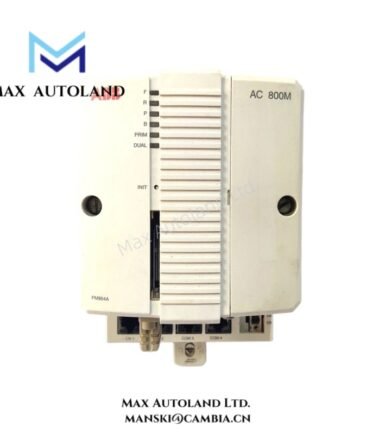

ABB Advant OCS/800xA PM864AK01 3BSE018161R1 Processor Unit

Specification

Backplane Bus Communication and Firmware Flash Compatibility

The PM864AK01 exchanges execution data, controller diagnostics, memory transactions, and I/O updates through the AC 800M internal backplane structure. Consequently, deterministic controller behavior depends on synchronized interaction between CPU resources, communication interfaces, and connected subsystem modules.

In addition, firmware flash compatibility must match the installed Control Builder release and 800xA system revision. Mismatched firmware environments can restrict controller initialization, interrupt hardware recognition, or block application download procedures during commissioning and maintenance activities.

Controller lifecycle management therefore requires coordinated validation of processor firmware, engineering software revision, and platform hardware level before deployment or replacement.

Frequently Asked Questions

Q: Does the PM864AK01 support redundant controller configurations?

A: The processor unit operates within AC 800M controller architectures that support redundancy arrangements. However, redundancy behavior depends on controller topology, installed firmware revision, and engineering configuration.

Q: Can technicians replace the processor unit while the system remains energized?

A: Maintenance personnel must evaluate controller status, redundancy availability, and process operating conditions before replacement. Uncontrolled live removal can interrupt controller execution, communication continuity, or I/O synchronization.

Q: Are firmware revisions interchangeable across all AC 800M processor variants?

A: No. ABB validates firmware compatibility against specific controller generations, engineering tool revisions, and supported AC 800M platform releases.

Field Installation Guidelines

Verify processor keying, controller base compatibility, and approved firmware alignment before inserting the module into the target AC 800M controller assembly.

Apply ESD handling controls during unpacking, transport, and installation. Also confirm cabinet grounding integrity, backplane seating condition, and protective bonding continuity before energizing the controller.

Route Ethernet, serial communication, and power conductors through separated cable paths. This arrangement reduces electromagnetic coupling into controller communication channels and backplane signal paths.

After installation, check status LEDs, controller startup behavior, communication establishment, application loading state, and I/O synchronization status before returning the control node to operational service.
