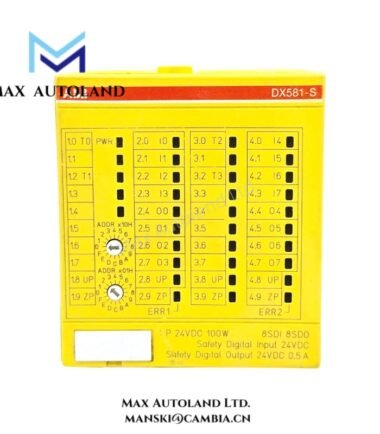

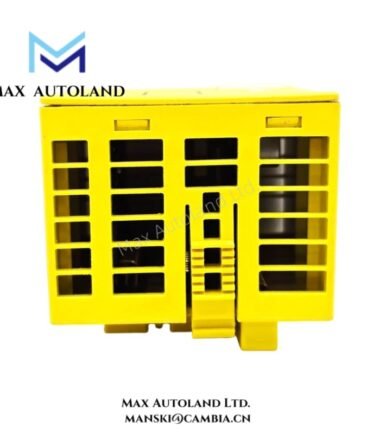

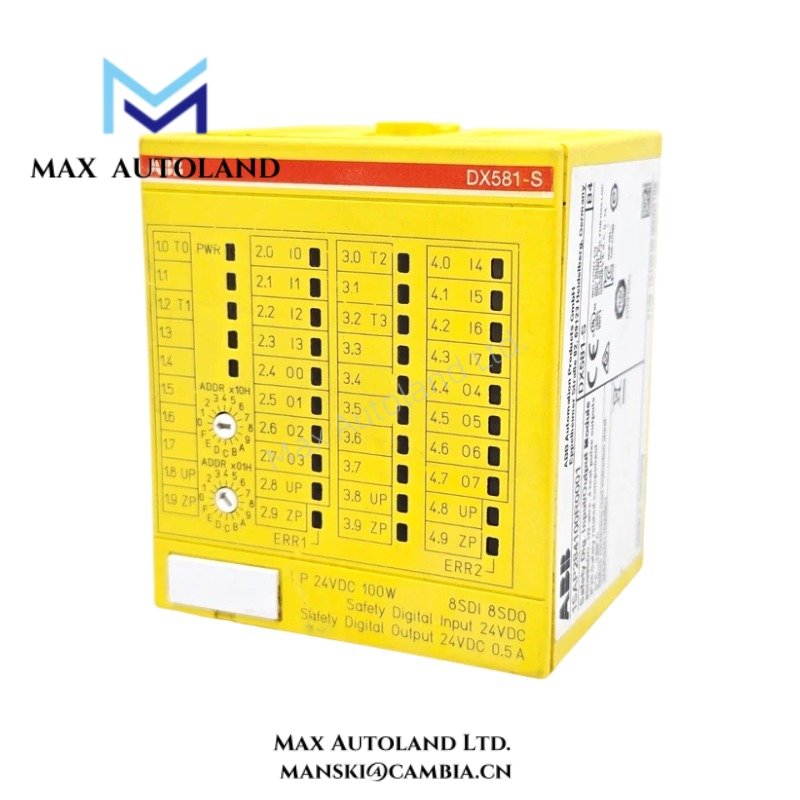

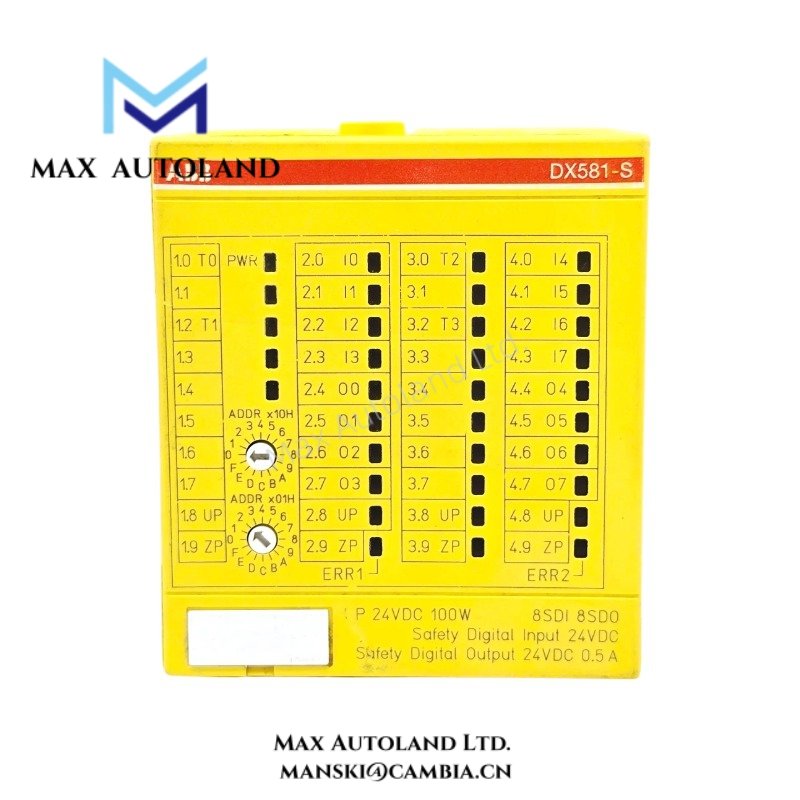

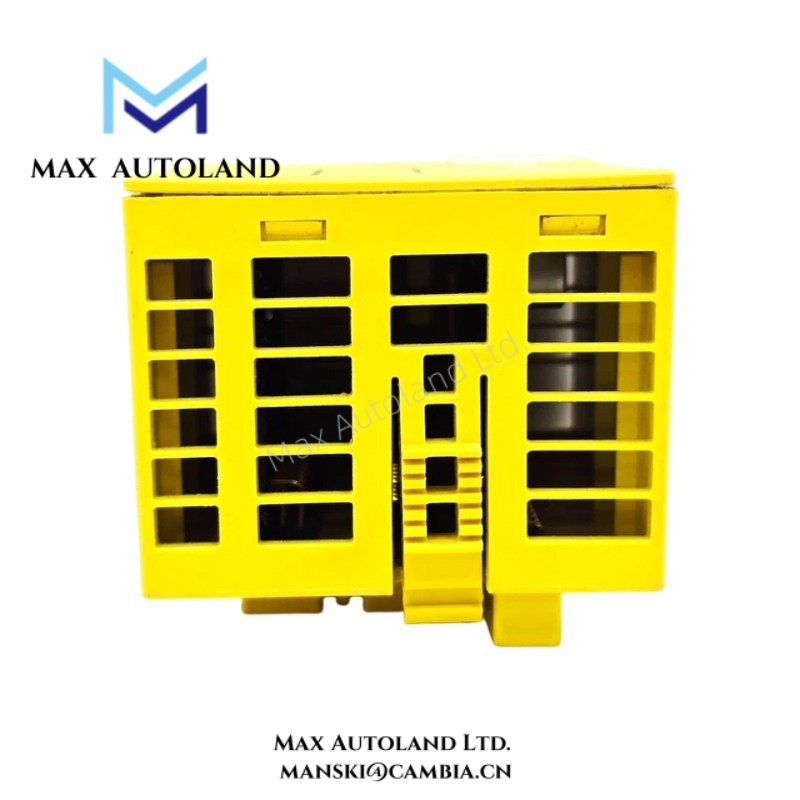

ABB Advant OCS/800xA DX581-S 1SAP284100R0001 Safety Dig.I/O Moudle

Hardware Specifications

Safety Digital I/O Signal Processing and Diagnostic Execution

The DX581-S executes safety-oriented discrete signal processing through internally monitored input and output channels. Each channel evaluates state transitions and continuously applies diagnostic supervision to detect wiring faults, short-circuit conditions, and inconsistent signal behavior.

At the same time, the module separates safety-relevant data paths from standard control execution through internal logic partitioning. It samples input signals using synchronized scan cycles that align with controller task execution, and it drives output channels with controlled switching behavior based on predefined safety response states.

In addition, the diagnostic subsystem continuously validates channel integrity during runtime operation. It records deviation conditions and updates module status registers, which the AC500 controller environment reads for safety logic handling.

Frequently Asked Questions

Q: Can DX581-S channels be hot-swapped during operation?
A: The system does not support unrestricted hot-swap operation. Instead, replacement requires a defined maintenance state because the module remains tightly coupled with safety channel synchronization and backplane timing.

Q: Does each channel operate independently in safety mode?
A: The module processes signal acquisition on a per-channel basis. However, it evaluates diagnostics and safety response behavior at module level to maintain consistent safety state management.

Q: How does the module handle wiring faults on input lines?
A: The diagnostic system detects open circuit, short circuit, and signal inconsistency conditions. It then updates channel status bits, which the controller uses to execute the corresponding safety reaction logic.

Field Installation Guidelines

Install the DX581-S module into the designated AC500 backplane slot and secure it with the mechanical locking mechanism. Ensure full seating of the module to maintain stable backplane communication and synchronized diagnostic execution.

Route digital field wiring separately from high-voltage switching conductors to reduce electromagnetic coupling. In addition, use shielded cabling where required by site EMC standards, and terminate cable shields using a single-point grounding strategy.

Before commissioning, verify channel mapping consistency, safety configuration download integrity, and controller-to-module data alignment. Finally, confirm all diagnostic indicators and validate safety state transitions under controlled test conditions.
