Overview

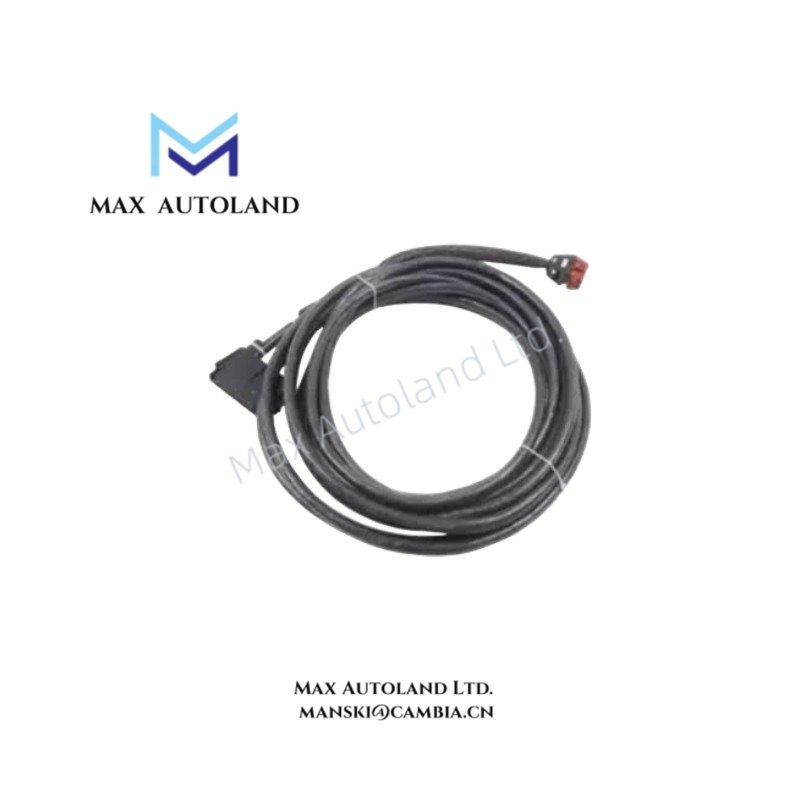

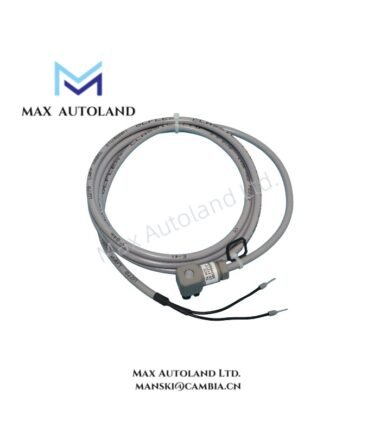

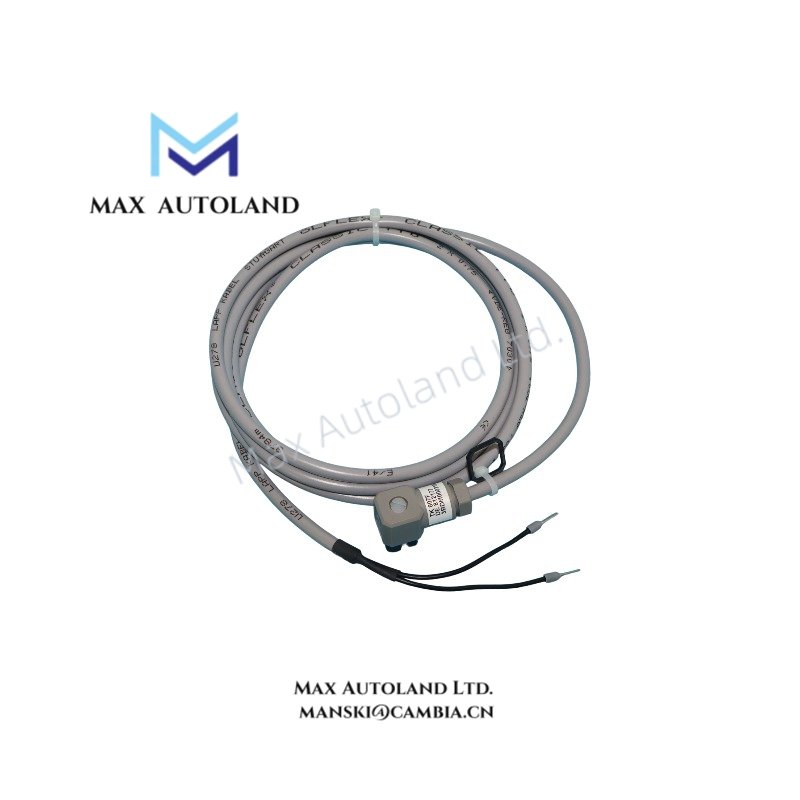

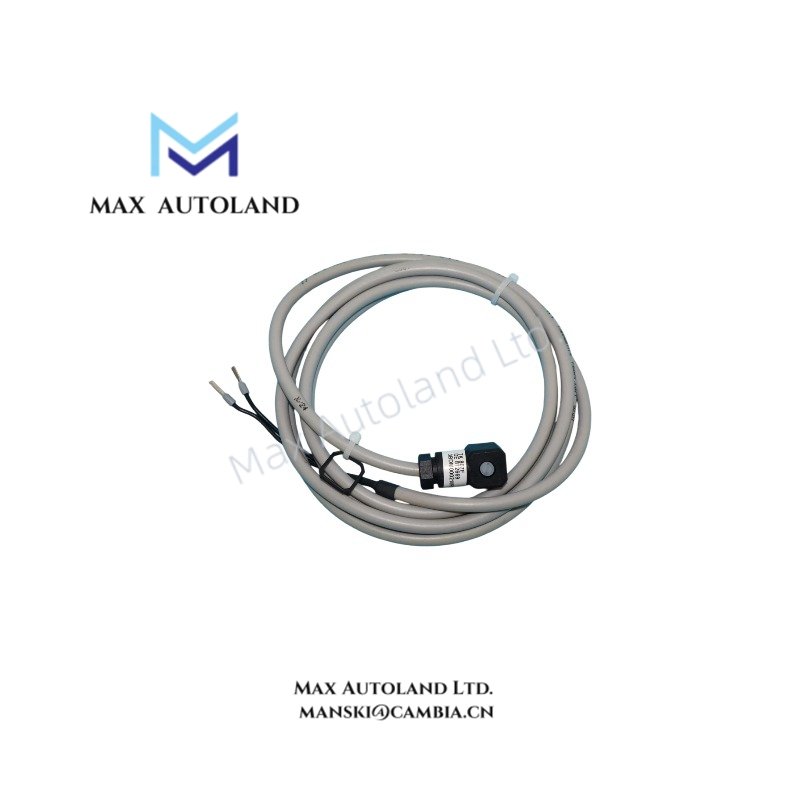

Configured for power distribution and interconnectivity in ABB Advant-800xA system configurations, the ABB 3BDM000210R1, also cataloged as the TK 807F Supply Cable, provides direct physical/electrical execution. This hardware component interfaces directly with the SA 811F power supply module, establishing a dedicated electrical path for line voltage delivery.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | TK 807F |
| Spare Model / Product ID | 3BDM000210R1 |
| Brand | ABB |
| Series | Advant-800xA / Freelance |
| Application | Dedicated supply cable for SA 811F |
| Input Voltage Rating | 115 / 230 VAC |
| Termination Type | Wire-end ferrules |
| Cable Length | 2 m |
| Dimensions | 6.0 in x 1.5 in x 6.0 in (15.2 cm x 3.8 cm x 15.2 cm) |
| Weight | 0 lbs 6.4 oz (0.2 kg) |
| Tariff Code | 8544429000 |
| Origin | Germany |
Deterministic Network and I/O Density Scaling
The TK 807F supply cable complies with the deterministic performance baselines required by the Advant-800xA and Freelance controller architectures. In high-density I/O configurations where backplane bus communication velocity requires strict power stabilization, the low-impedance connection provided by the 3BDM000210R1 ensures negligible voltage drop under maximum load. This power consistency prevents local module resets and eliminates transient communication latency spikes across Profinet and EtherNet/IP deterministic networks connected to the controller node.
Frequently Asked Questions
Q: Can the TK 807F cable be hot-swapped while the SA 811F module is under load?
A: No. Hot-swapping the supply cable while the circuit is energized is prohibited. Power must be isolated upstream before disconnecting or servicing the 115 / 230 VAC line connection to prevent electrical arcing and damage to the power supply terminals.
Q: What is the mechanical benefit of the pre-installed wire-end ferrules on this cable?
A: The factory-crimped wire-end ferrules ensure optimal surface contact within the screw or spring-clamp terminals of the SA 811F module. This termination method prevents wire fraying, minimizes contact resistance, and mitigates the risk of thermal failure under continuous current draws.
Field Installation Guidelines
- Power Isolation: Ensure all primary AC supply lines are locked out and tagged out (LOTO) prior to landing the ferrules onto the terminal blocks.
- Routing and Separation: Route the 115 / 230 VAC supply cable away from low-voltage DC signals and communication buses (e.g., Profinet, Profibus DP) to eliminate electromagnetic interference and cross-talk.
- Bend Radius Compliance: Maintain a minimum bend radius of at least 10 times the outer cable diameter during installation to prevent mechanical stress on the inner conductors and insulation layers.
- Grounding: Verify that the protective earth (PE) path is properly bonded to the central cabinet ground bar in accordance with standard industrial wiring practices.
