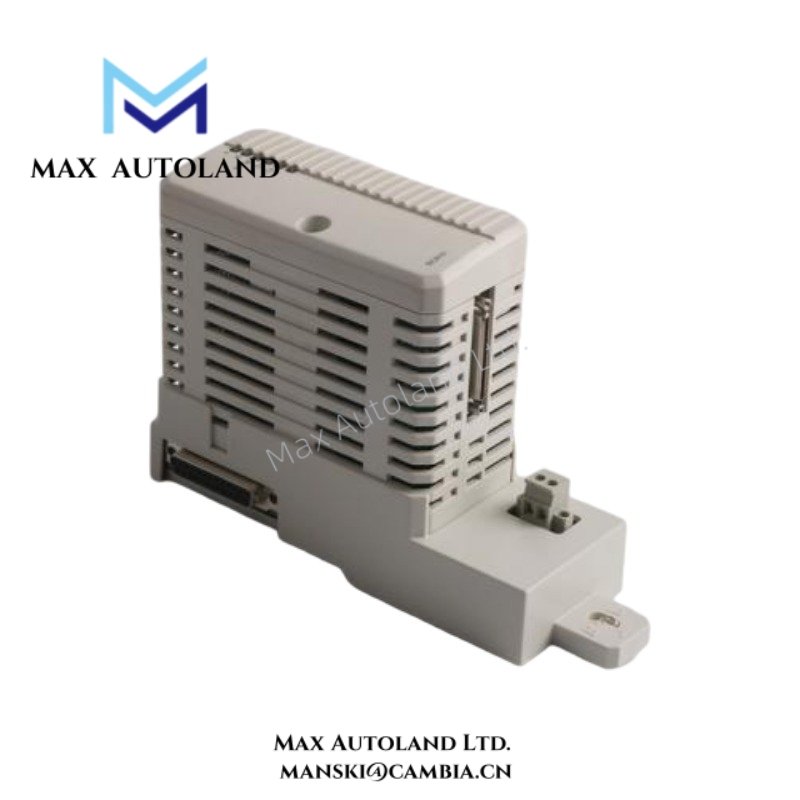

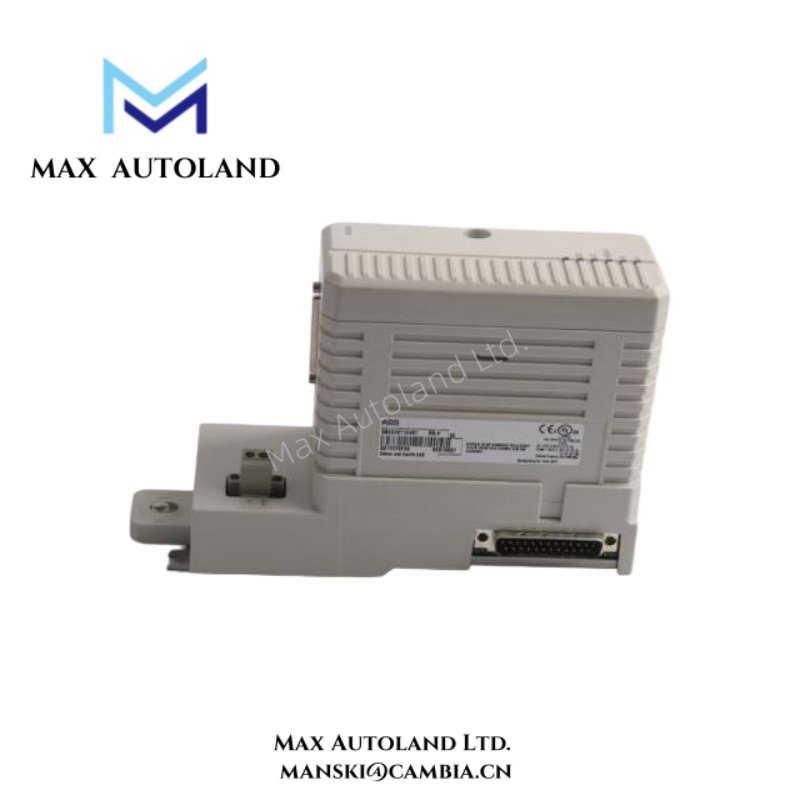

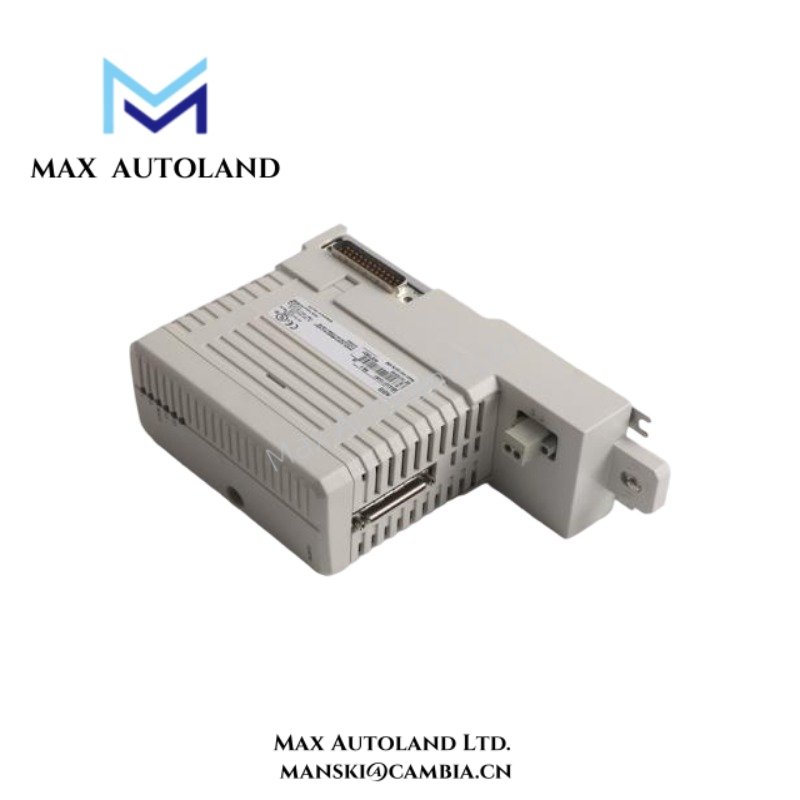

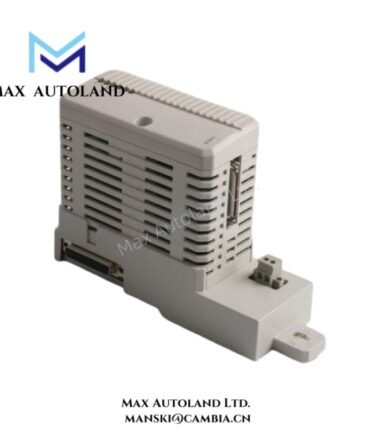

ABB AC 800M BC810 Communication Bus Couplers

Overview

Configured for backplane communication bridging within ABB S800 I/O architectures, the ABB BC810 (BC810) serves as a communication bus coupler module used to execute deterministic data exchange between controller interfaces and distributed I/O station backplane segments across AC 800M system platforms. The module provides electrical and logical coupling between redundant communication paths and I/O node structures.

Hardware Specifications

Configured for deterministic communication routing between controller bus structures and S800 I/O station backplane segments in ABB AC 800M architectures, the ABB BC810 (BC810 Communication Interface Module) provides direct electrical and logical coupling between station-level backplane domains and controller-side communication layers. It maintains synchronized data transfer alignment between I/O update cycles and controller scan execution timing.

Hardware Specifications

ABB AC 800M Backplane Synchronization Behavior

The BC810 operates inside the ABB AC 800M communication hierarchy as a station-level bus interface element. It links controller communication paths with S800 I/O backplane segments and preserves deterministic timing alignment across distributed I/O nodes.

Moreover, ABB AC 800M systems implement synchronized bus arbitration across controller and station domains. The BC810 participates in this mechanism by stabilizing signal routing between backplane segments and maintaining predictable data phase alignment during scan execution cycles.

In addition, the module enables scalable I/O expansion by separating station backplane timing from controller network timing. This separation allows multiple S800 I/O clusters to operate under unified controller logic without requiring modifications to core application execution.

Frequently Asked Questions (FAQ)

Q: Does the BC810 support hot-swap replacement in an active S800 station?
A: The BC810 does not support live insertion under standard operating conditions. Operators must isolate station power or perform controlled shutdown before replacement to prevent backplane signal disturbance.

Q: How does the BC810 influence communication timing in AC 800M systems?
A: The module maintains a fixed coupling path between controller bus and station backplane, while overall timing remains governed by AC 800M scan cycles and system bus synchronization logic.

Q: Does the BC810 introduce deterministic latency in I/O communication?
A: The module does not define fixed latency. Communication delay depends on station configuration, controller cycle time, and total I/O load distribution.

Field Installation Guidelines

Install the BC810 into a compatible ABB S800 I/O station while ensuring correct mechanical alignment with the backplane connector rail. First, verify slot assignment according to system configuration data, since incorrect placement can interrupt bus synchronization across the station.

Next, connect the module with controlled insertion force and confirm full engagement of the edge connector. In addition, maintain a clean connector interface to avoid contact resistance or intermittent signal paths.

Ensure continuous protective grounding across the I/O station chassis. Moreover, bond cabinet earth to the station ground reference point to reduce noise coupling across communication lines.

Route backplane communication wiring separately from high-energy switching conductors. This separation reduces electromagnetic coupling and preserves signal integrity across the station-level bus structure.

Finally, verify system synchronization after installation by checking controller-to-station communication status during the next execution cycle.
