Overview

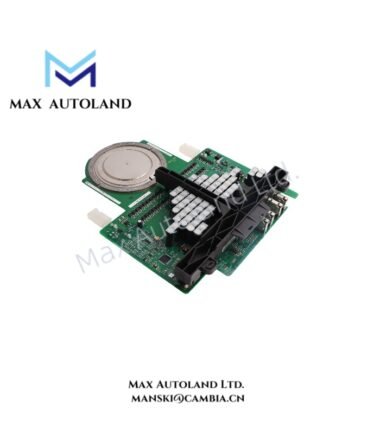

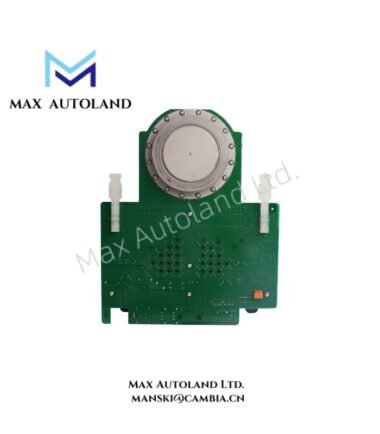

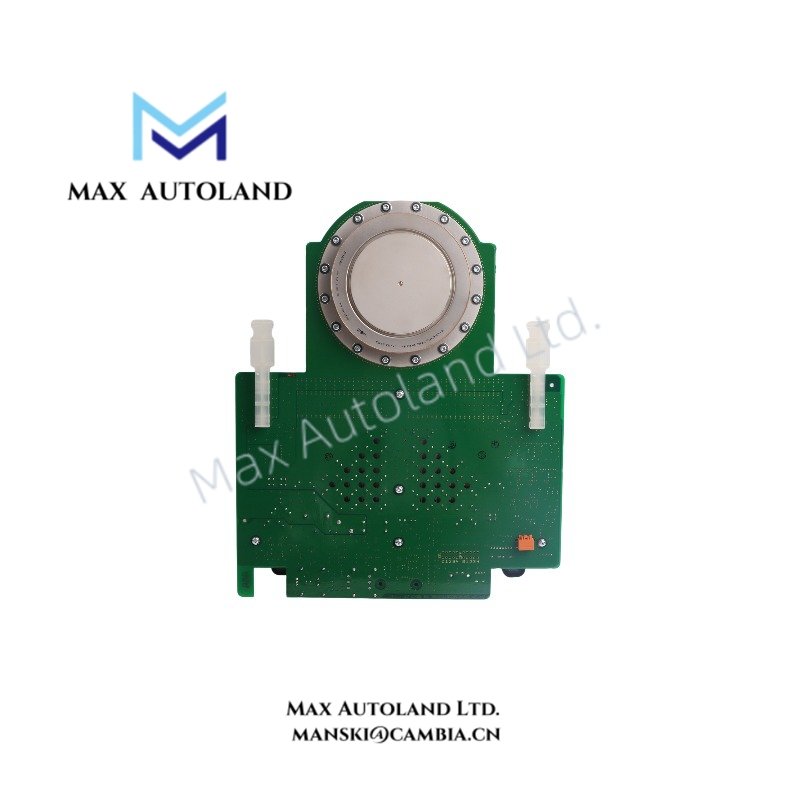

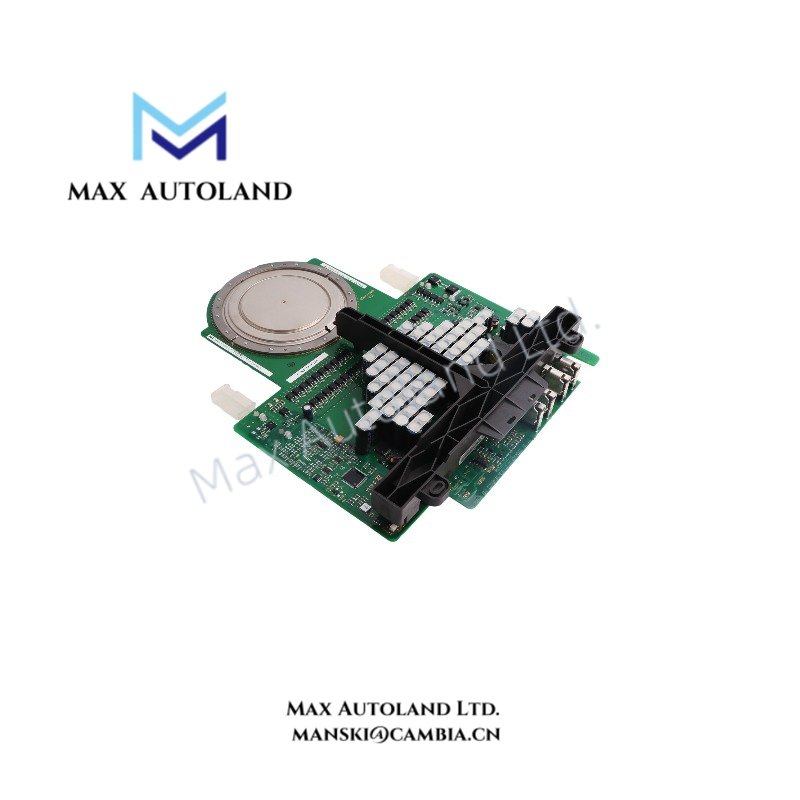

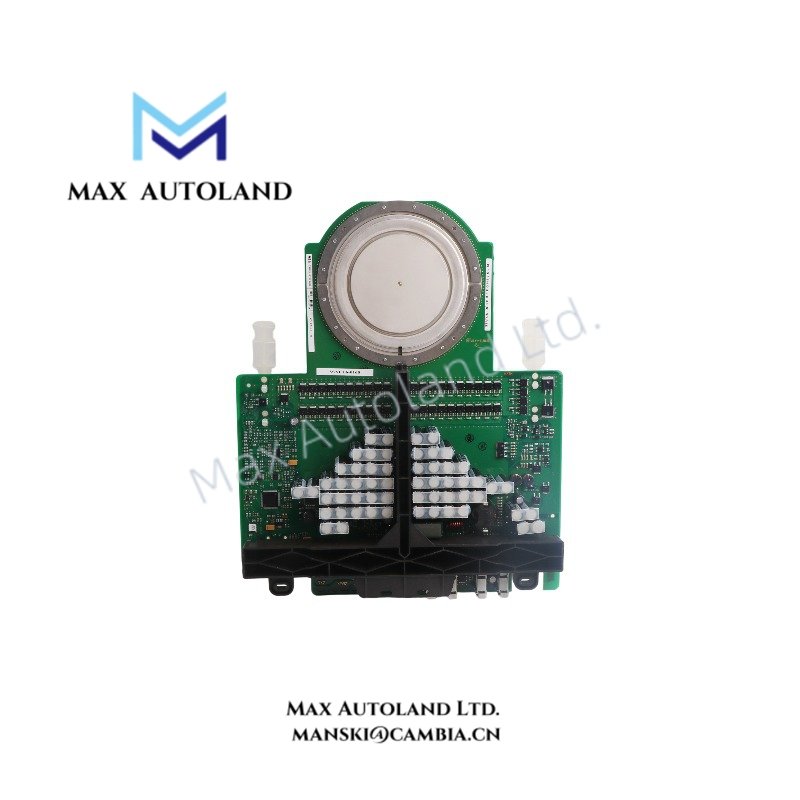

Configured for high-current switching execution in ABB ACS6000 and ACS1000 medium voltage drive platforms, the ABB 3BHE009681R0101 / 3BHB012961R0001 / 5SHX2645L0002 (5SHX2645L0002 IGCT Module Assembly) provides direct electrical power conversion control through integrated gate commutation technology.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 5SHX2645L0002 / 3BHB012961R0001 / 3BHE009681R0101 |
| Brand | ABB |
| Origin | Switzerland / Sweden |
| Component Type | Integrated Gate-Commutated Thyristor (IGCT) Module Assembly |
| Application Platform | ABB ACS6000 and ACS1000 Medium Voltage Drives |
| Weight | 2.66 kg |
| Dimensions | 292 x 352 x 65 mm |
| Operating Temp | -40 deg C to +125 deg C junction temperature |
| Power Consumption | Determined by converter operating conditions and switching load |
| Peak Blocking Voltage | Up to 4500 V |
| Controllable Turn-Off Current | 2645 A |
| Average On-State Current | Approximately 350 A |
| Non-Repetitive Surge Current | Up to 8000 A (8.3 ms) |
| On-State Voltage Drop | <= 1.5 V |
| Cooling Method | Water-cooled or forced-air stack cooling |
Industrial Drive Semiconductor Control Features
The ABB 5SHX2645L0002 IGCT module executes high-power switching functions inside ABB medium voltage converter systems. The device combines thyristor-based low conduction loss characteristics with transistor-like turn-off control behavior.
In addition, the integrated gate unit provides direct control of the IGCT switching process. The low-inductance gate drive structure supports fast commutation and reduces switching energy during converter operation.
Furthermore, ABB drive platforms use firmware flash compatibility and converter control coordination to manage semiconductor firing sequences, protection monitoring, and power stage synchronization. The module operates as a power switching element within the converter backplane control architecture.
The IGCT assembly supports multi-level converter structures, including neutral-point-clamped topologies. Therefore, it can handle high voltage conversion tasks in motor drive and power conversion systems where controlled switching and thermal management are required.
Frequently Asked Questions
Q: What is the main switching function of the ABB 5SHX2645L0002?
A: The module performs high-power AC/DC and DC/AC converter switching by controlling IGCT turn-on and turn-off operations inside ABB medium voltage drive power stages.
Q: Does the 5SHX2645L0002 include an integrated gate driver?
A: Yes. The assembly includes gate control components designed for direct IGCT switching management and converter synchronization.
Q: What cooling method does this IGCT assembly require?
A: The module requires converter stack cooling methods such as water cooling or forced-air cooling according to the installed ABB drive configuration.
Field Installation Guidelines
- Install the IGCT module according to the ABB converter service manual and mechanical stack assembly procedure.
- Verify the mounting surface condition before installation to maintain proper thermal transfer between the semiconductor package and cooling structure.
- Use appropriate torque settings for power terminals and mechanical fastening points according to ABB technical documentation.
- Keep gate control wiring separated from high-current power conductors to reduce electrical interference.
- Connect grounding paths according to industrial drive cabinet standards and maintain proper shielding for control cables.
- Inspect cooling channels, heat sink surfaces, and contact interfaces before energizing the converter system.
- Confirm converter protection parameters and gate control signals before returning the power stage to operation.
