Overview

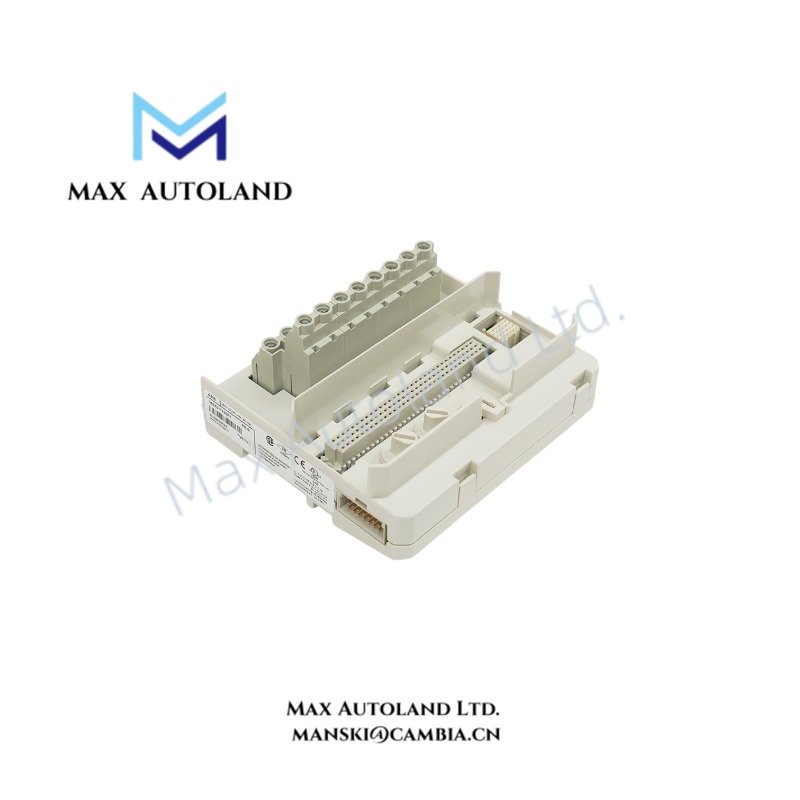

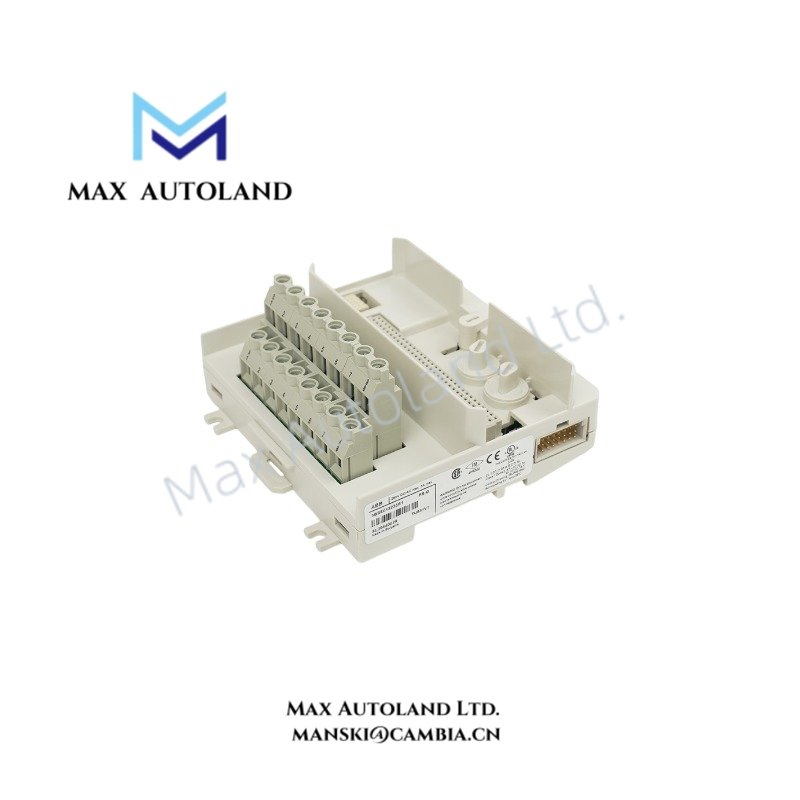

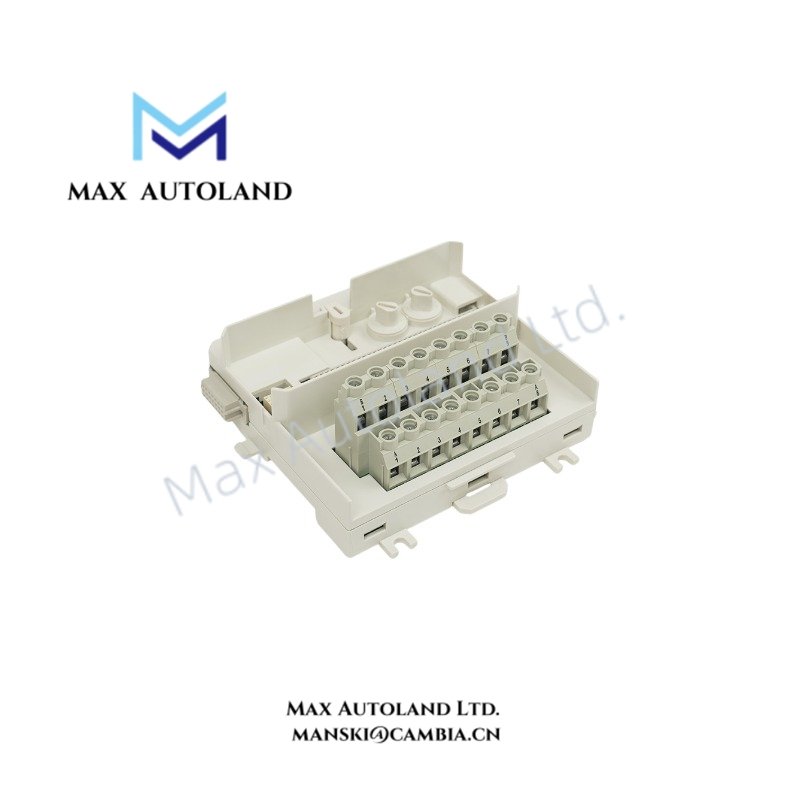

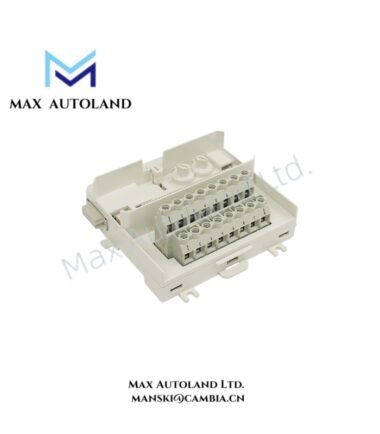

The ABB 3BSE008530R1, also cataloged as the TU831 Extended MTU Module, operates as a dedicated hardware component for signal terminal connection and electrical interface management within the ABB S800 I/O system.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | ABB 3BSE008530R1 / TU831 |
| Brand | ABB |
| Product Type | Extended MTU Module |
| System Compatibility | ABB S800 I/O system |
| Origin | Sweden |
| Weight | 0.228 kg |
| Dimensions | Not specified |
| Operating Temp | Not specified |
| Power Consumption | Passive MTU, no external power consumption specified |
| Signal Terminals | 2 x 8 signal terminals |
| Rated Isolation Voltage | 250 V |
| Previous Exchange Number | 7650 055-546 / 7650 055-687 |
| Mounting Type | Module termination unit interface |
Backplane Bus Communication and I/O Density Scaling
The TU831 Extended MTU Module supports physical signal termination for ABB S800 I/O configurations. The unit provides 2 x 8 signal terminals and maintains the electrical connection between field wiring and the associated I/O module.
Because ABB S800 I/O systems use modular backplane bus communication, the MTU transfers module-related signals through the defined termination structure. The TU831 design supports I/O density scaling by providing organized terminal access while maintaining a compact installation arrangement.
Frequently Asked Questions
Q: What is the primary function of the ABB TU831 MTU module?
A: The TU831 provides signal terminal connection and electrical termination between field wiring and ABB S800 I/O modules.
Q: Does the TU831 require an external power supply?
A: No external power consumption is specified. The TU831 functions as a passive module termination unit.
Q: What terminal configuration does the TU831 provide?
A: The TU831 provides 2 x 8 signal terminals with a rated isolation voltage of 250 V.
Field Installation Guidelines
Install the ABB TU831 on the designated ABB S800 I/O mounting arrangement according to system configuration requirements.
Verify terminal assignments before connecting field conductors. Maintain correct wire routing practices to prevent signal interference between low-level I/O circuits and higher-energy conductors.
Use appropriate shielding and grounding methods for connected instrumentation cables. Connect cable shields according to the plant grounding standard and avoid creating unintended ground loops.
Inspect terminal tightness and conductor placement during commissioning. Confirm that the connected I/O module matches the configured MTU arrangement before applying system power.
