Overview
Specification
| Parameter | Specification |
|---|---|

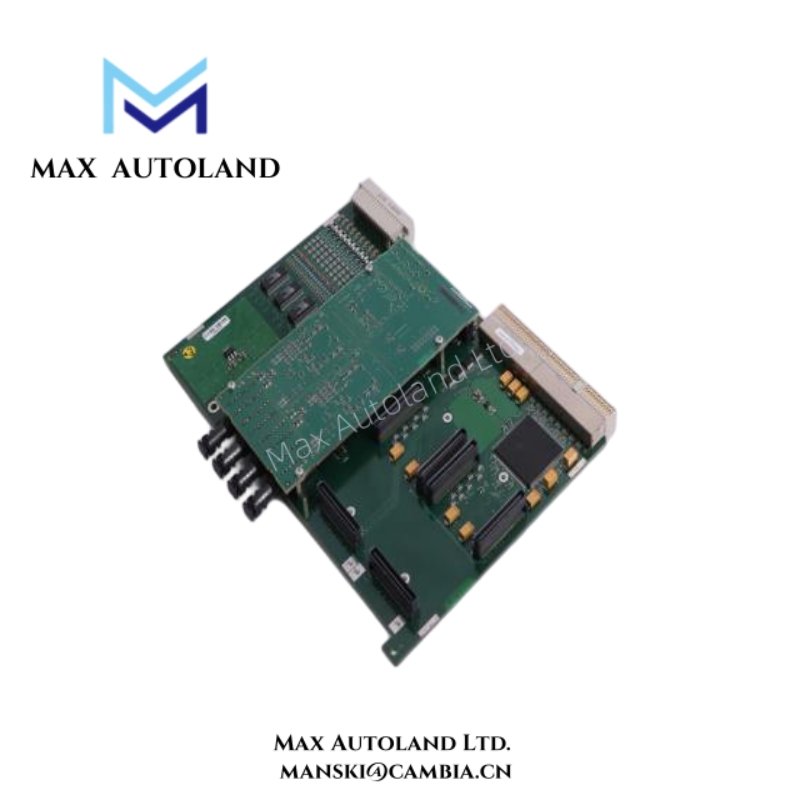

| Model Number | 1MRK002133-ABR02 |
| Module Type | PC Board / Control Interface |
| Power Supply | 24–48 VDC |
| Power Consumption | Typical: 6 W / Maximum: 8 W |
| Digital Inputs | 16 channels, 24 VDC compatible |
| Digital Outputs | 16 channels, 24 VDC, 0.5 A per channel |
| Analog Inputs | 4 channels, 0–10 VDC / 0–20 mA configurable |
| Analog Outputs | 4 channels, 0–10 VDC / 0–20 mA configurable |
| Communication Interfaces | RS-485, Modbus, compatible with fieldbus systems |
| Isolation | Galvanic isolation between I/O and control circuits |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity (Non-condensing) | 10–95% RH |
| Protection Rating | IP20 (rack-mounted) |
| Mounting | DIN rail or panel mount |
| Dimensions (WxHxD) | 120 mm × 100 mm × 40 mm |
| Weight | Approx. 0.85 kg |
| LED Indicators | Power, status, and I/O activity |
| Compliance | CE, UL, RoHS |
| Response Time | Digital input <1 ms / Output <2 ms |
| MTBF | >100,000 hours |
FAQ
A1: Yes, it is fully compatible with ABB PLC modules and standard I/O configurations.
Q2: Can the module operate in high-humidity environments?
A2: Yes, it supports up to 95% non-condensing humidity while maintaining performance.
Q3: What communication protocols are supported?
A3: RS-485 and Modbus, compatible with standard fieldbus communication systems.
Q4: How long is the expected lifespan?
A4: The MTBF is over 100,000 hours under normal operating conditions.
