Overview

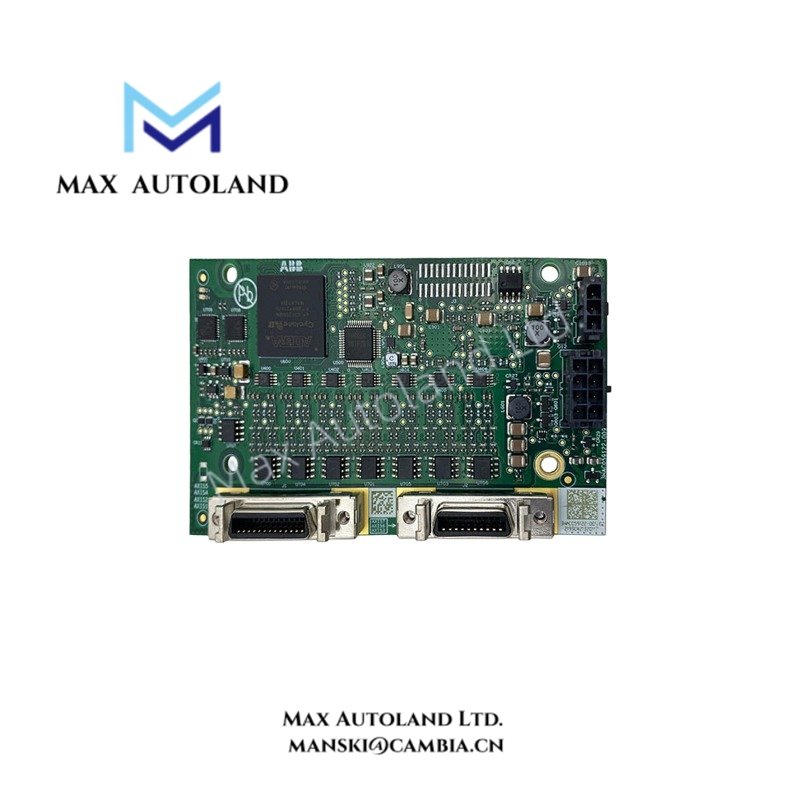

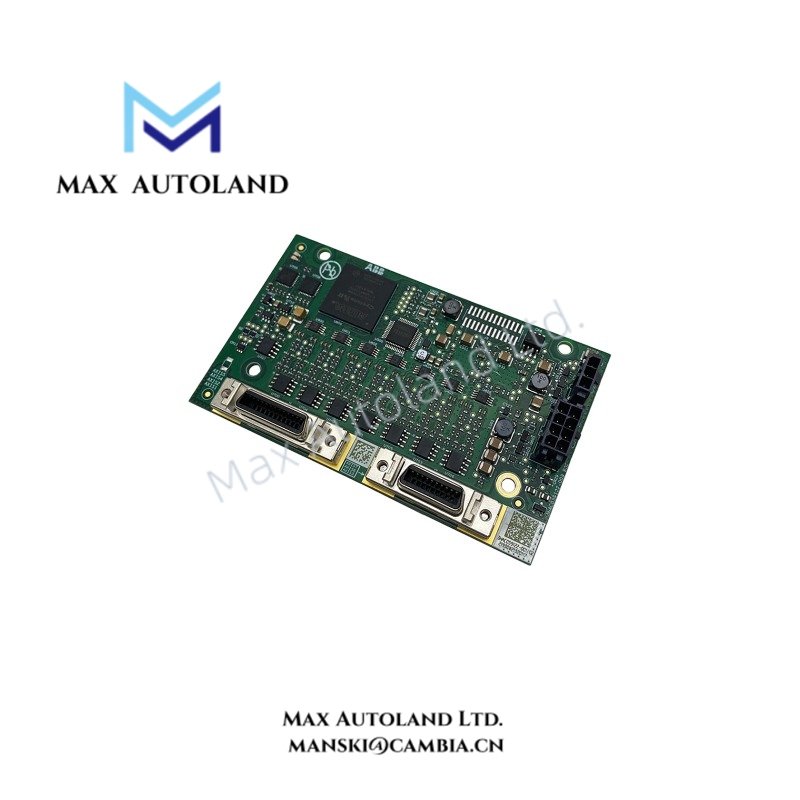

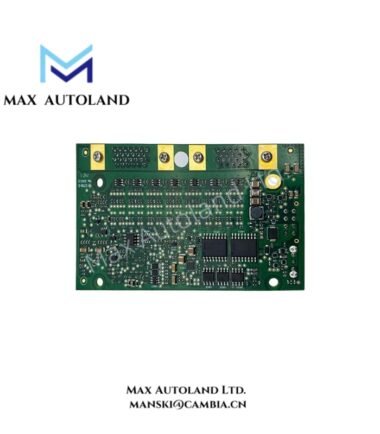

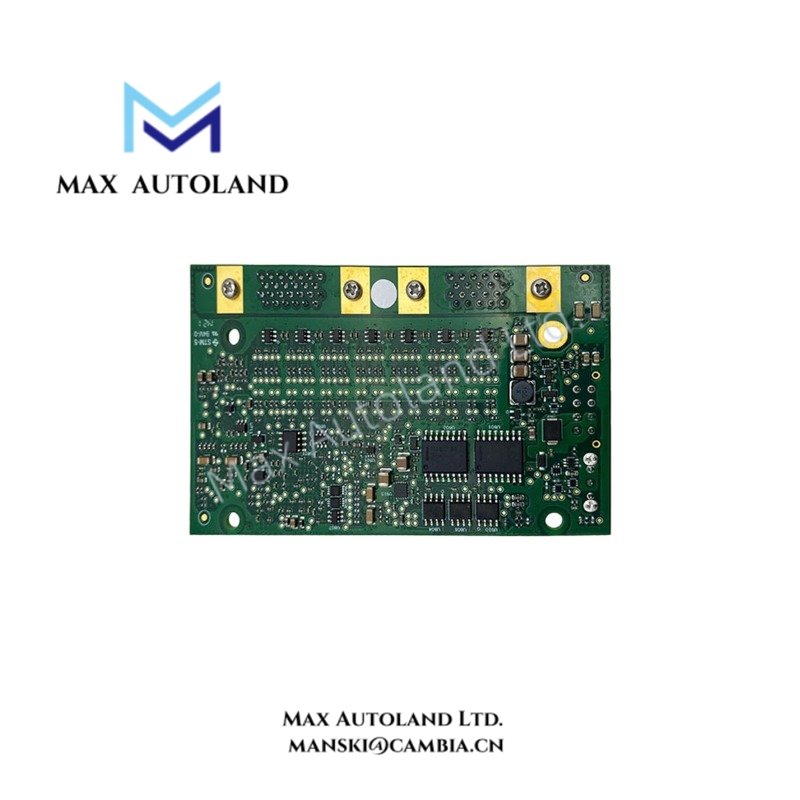

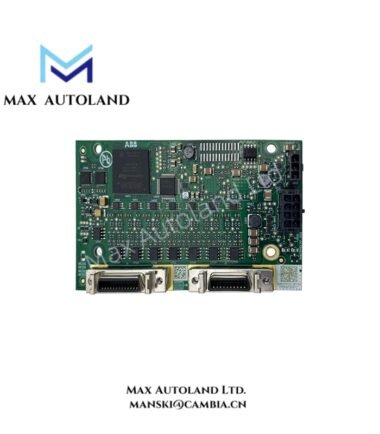

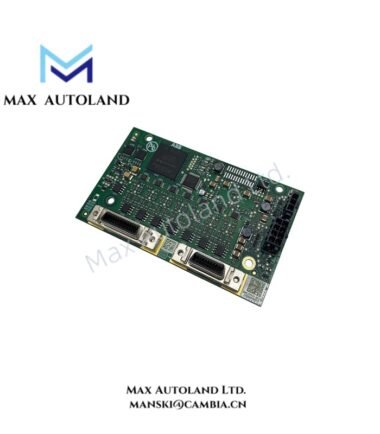

The ABB 3HAC059122-001, also identified as the DSQC3026 measurement module, is described as a robot feedback interface for processing position data from axis measurement devices. The supplied information associates this component with ABB industrial robot systems. However, the exact module function, controller compatibility, and electrical interface require confirmation against ABB documentation.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DSQC3026 |
| Part Number | 3HAC059122-001 |
| Brand | ABB |
| Product Type | Serial Measurement Board (SMB), as described in the supplied information |
| Weight | Approx. 2.5 kg, unverified |
| Dimensions | Approx. 200 x 150 x 50 mm, unverified |
| Operating Temp | -10 to +60 deg C, unverified |
| Power Consumption | Not specified |
| Supply Voltage | 24 VDC, unverified |
| Feedback Interface | Serial encoder or resolver data, unverified |
| Robot Controller Compatibility | Exact controller generation not confirmed |
Robot Position Feedback and Interface Verification
A robot measurement board typically processes feedback from axis measurement devices and supplies position information to the robot control system. The exact signal format, connector pinout, measurement resolution, and data interface depend on the installed hardware configuration.
Before integrating the DSQC3026, verify the part number against the ABB spare-parts catalog and the applicable robot electrical documentation. Do not assume that the listed 24 VDC supply, temperature range, dimensions, or weight represent confirmed specifications for this exact part.
Frequently Asked Questions (FAQ)
Q: Is the DSQC3026 compatible with all ABB IRC5 and OmniCore controllers?
A: Compatibility has not been established for all IRC5 or OmniCore configurations. Check the robot model, controller generation, and approved spare-part references before installation.
Q: Can the module retain robot axis position data after power loss?
A: This behavior has not been verified for the specified part number. Confirm the measurement system architecture and position-retention method in the applicable ABB technical documentation.
Q: Can the module be replaced while the robot controller is energized?
A: Hot-swap capability has not been confirmed. Isolate power and follow the ABB maintenance procedure unless the documentation explicitly permits energized replacement.
Field Installation Guidelines
- Verify the complete part number and hardware revision before installation.
- Disconnect power according to the applicable robot maintenance procedure.
- Inspect connectors, terminals, and cable insulation for mechanical damage.
- Route feedback cables separately from motor power cables where practicable to reduce electrical interference.
- Follow the manufacturer’s requirements for cable shielding, grounding, and connector assembly.
- Confirm controller compatibility and parameter configuration before restoring operation.
- Perform the prescribed axis calibration and feedback checks after replacement.
- Do not apply power until the connector pinout and supply requirements have been verified.
