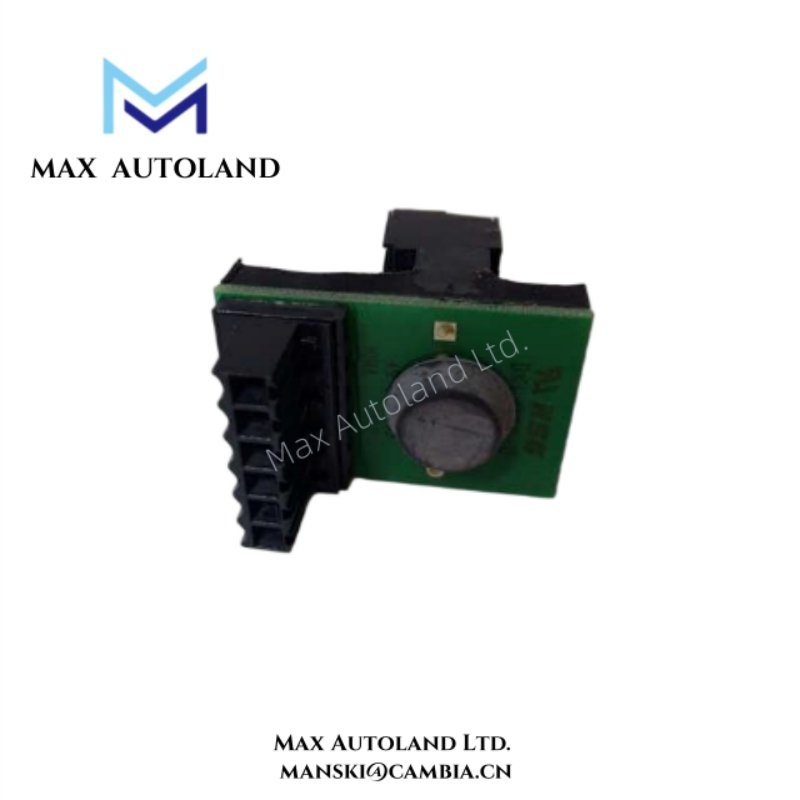

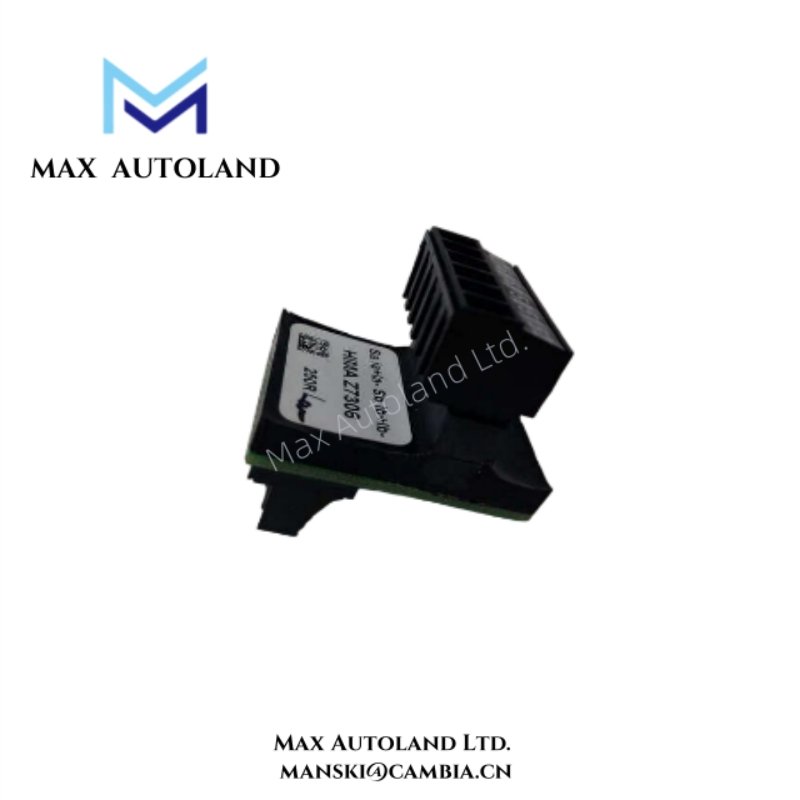

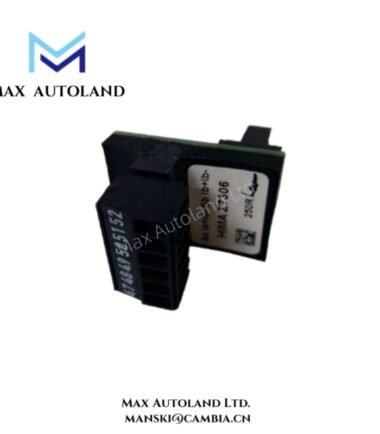

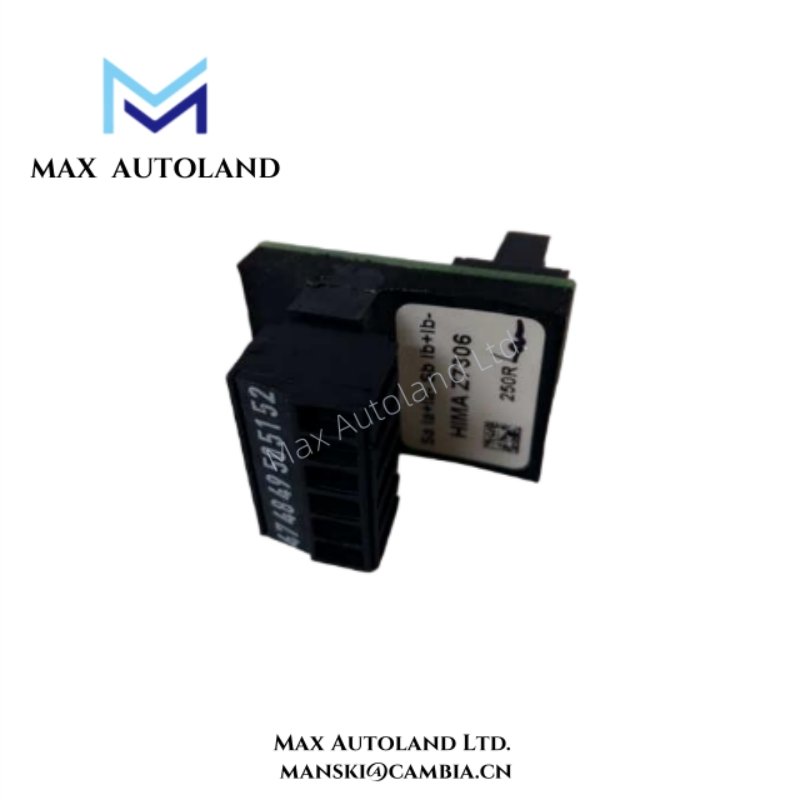

Overview
It supports accurate current signal handling, which is essential for reliable monitoring and diagnostic functions.
Moreover, the adapter ensures stable electrical characteristics, helping maintain predictable behavior in safety-related circuits.
Engineers commonly use this shunt adapter to support measurement integrity in demanding industrial environments.
Specification
| Parameter | Specification |
|---|---|
| Model | Z7306 |
| Alternative Designation | Z 7306 |
| Manufacturer | HIMA |
| Product Type | Shunt Adapter |
| Primary Function | Current signal shunting and adaptation |
| Nominal Voltage | 24 V DC systems |
| Shunt Resistance | Defined internal resistance (HIMA specified) |
| Signal Type | Analog current signals |
| Mounting Location | Control or safety cabinet |
| Connection Method | Plug-in or terminal-based connection |
| Compatible Systems | HIMA safety and control systems |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Relative Humidity | Up to 95%, non-condensing |
| Housing | Compact industrial-grade module |
| Compliance | HIMA industrial and safety standards |
FAQ
A1: It provides controlled shunting for current signals within HIMA safety and control systems.
Q2: Which systems commonly use the Z7306 adapter?
A2: It integrates with HIMA safety and control platforms used in industrial automation environments.
Q3: Is the Z7306 suitable for continuous industrial operation?
A3: Yes, it supports continuous operation with stable electrical characteristics.
Q4: Does the shunt adapter affect signal accuracy?
A4: No, it is designed to maintain predictable and defined signal behavior.
