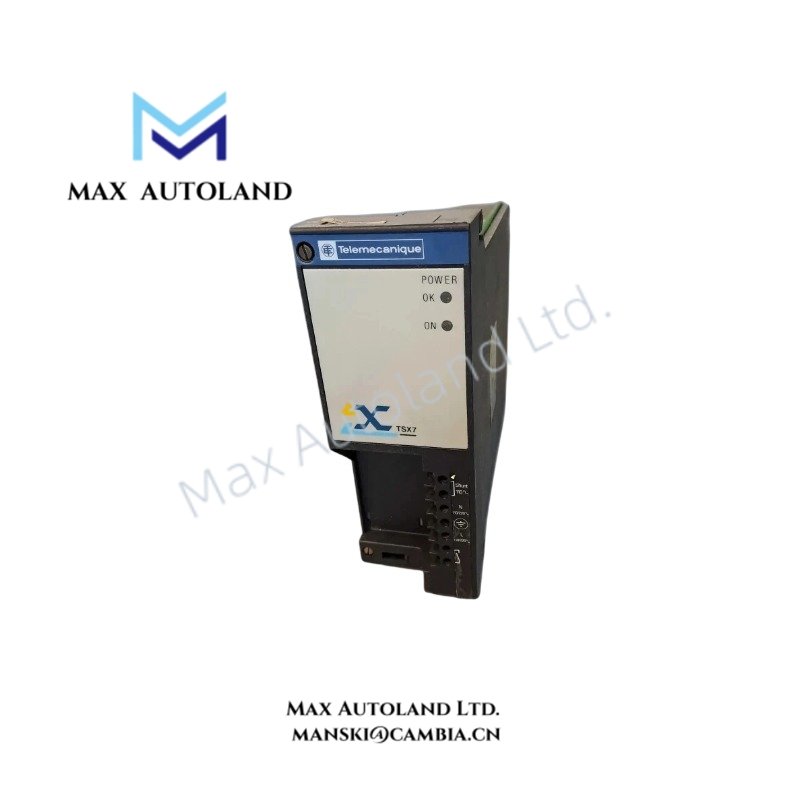

The Schneider Electric TSX-SUP-702, also cataloged as the TSXSUP702 Power Supply Module, operates as a dedicated AC power conversion component for supplying regulated power within Modicon automation system platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | TSXSUP702 / TSX-SUP-702 |
| Brand | Schneider Electric |
| Origin | Not specified |
| Product Type | Power Supply Module |
| Product Line | Modicon Automation Platform |
| Power Supply Type | AC power supply |
| Input Voltage | 220 to 240 VAC |
| Power Consumption | 65 W |
| Weight | 2.7 kg (shipping specification); 1.81 kg listed unit weight |
| Dimensions | 25.20 cm W x 19.30 cm H x 14.20 cm D |
| Operating Temp | 0 to 60 deg C |
| Operating Humidity | 80% RH, non-condensing |
| Storage Humidity | 80% RH, non-condensing |
| Maximum Operating Altitude | 1000 m above sea level without derating |
PLC Backplane and Firmware Compatibility Characteristics
The TSXSUP702 is a Schneider Electric Modicon power module designed for PLC rack power distribution. Within Modicon architectures, power supply modules provide the electrical conversion interface required by processor and I/O assemblies. System integration requires verification of rack compatibility, backplane power demand, and installed hardware configuration.
Industrial PLC platforms using Schneider Electric architecture require correct firmware and hardware compatibility between processors, communication modules, and I/O density configurations. Power module selection affects available rack loading capacity and the operating stability of connected automation modules.
Frequently Asked Questions
Q: What input voltage range does the TSXSUP702 support?
A: The TSXSUP702 operates from a 220 to 240 VAC input supply according to the provided technical specifications.
Q: Can the TSXSUP702 be installed in any Modicon rack configuration?
A: Installation must be verified against the applicable Modicon platform rack configuration, processor type, and total module power requirements.
Q: Does the TSXSUP702 support operation in high humidity environments?
A: The module is specified for operation and storage at up to 80% RH without condensation.
Field Installation Guidelines
- Install the TSXSUP702 in the designated Modicon rack position according to the applicable system hardware manual.
- Verify AC supply wiring polarity, protective grounding, and terminal connections before energizing the module.
- Maintain separation between AC power wiring and low-level signal cables to reduce electrical interference.
- Connect the protective earth conductor according to industrial control cabinet grounding practices.
- Confirm cabinet ventilation requirements to maintain the specified operating temperature range.
- Inspect connectors, mounting hardware, and backplane contacts before installation to prevent intermittent electrical connections.
