Overview
Specification
| Parameter | Specification |
|---|---|

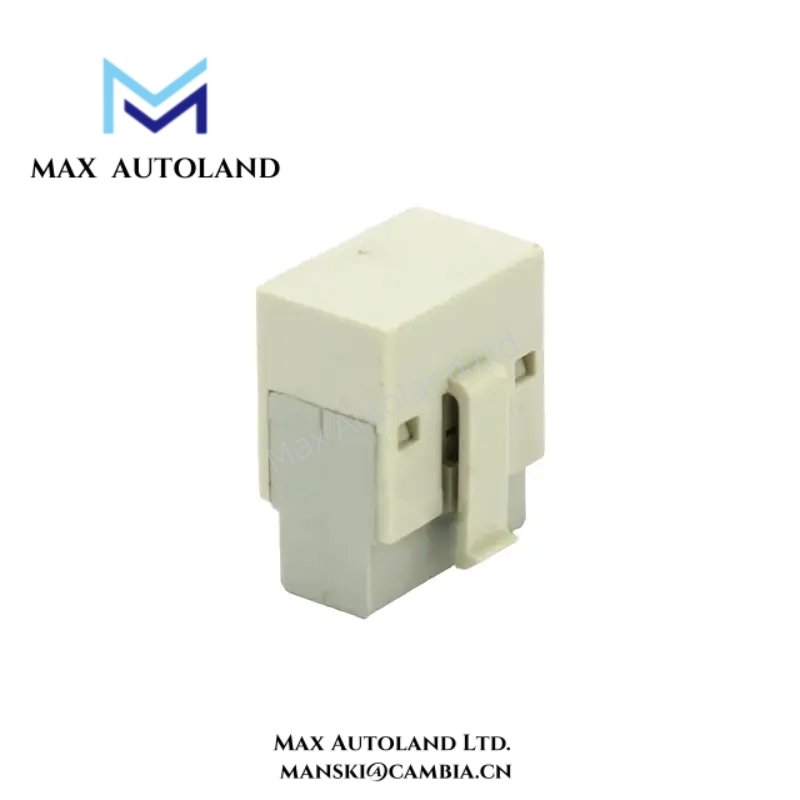

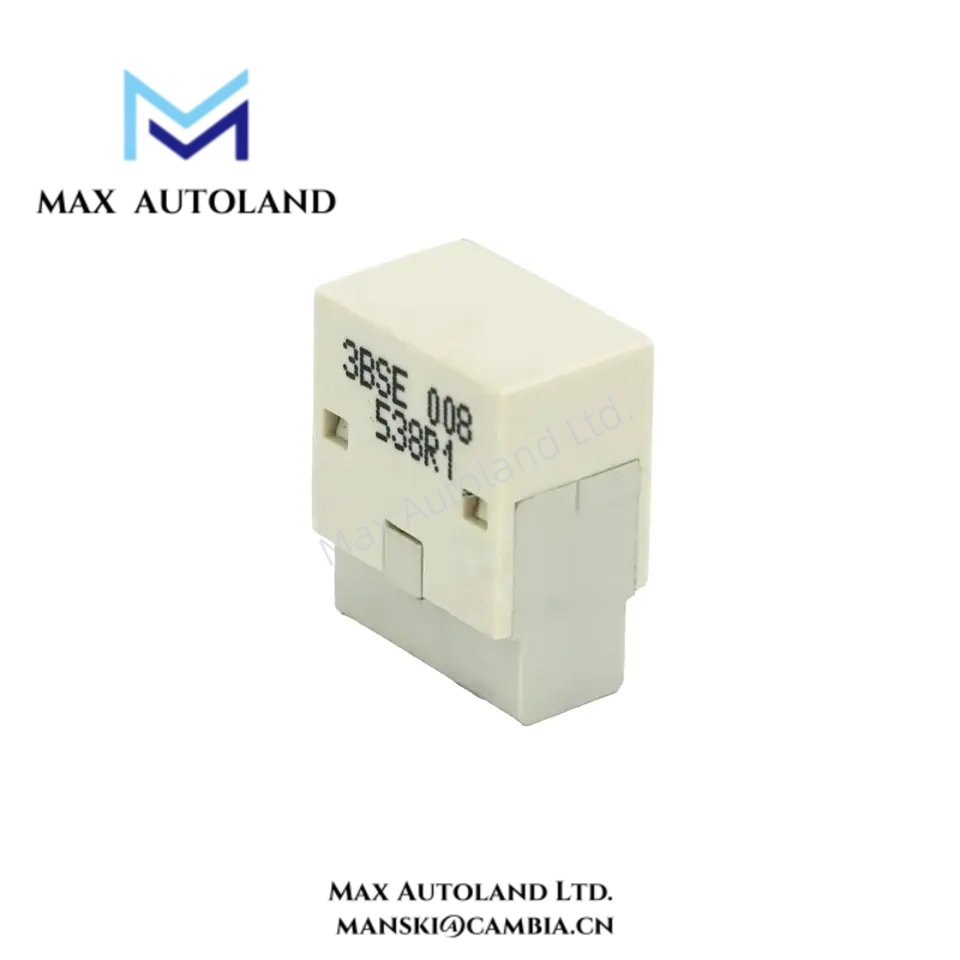

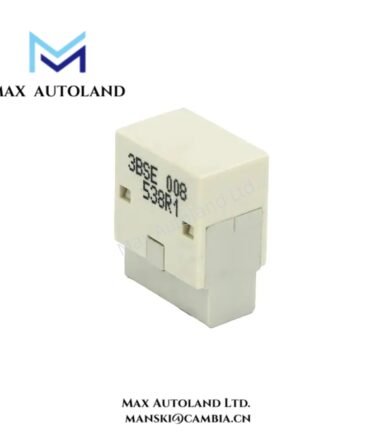

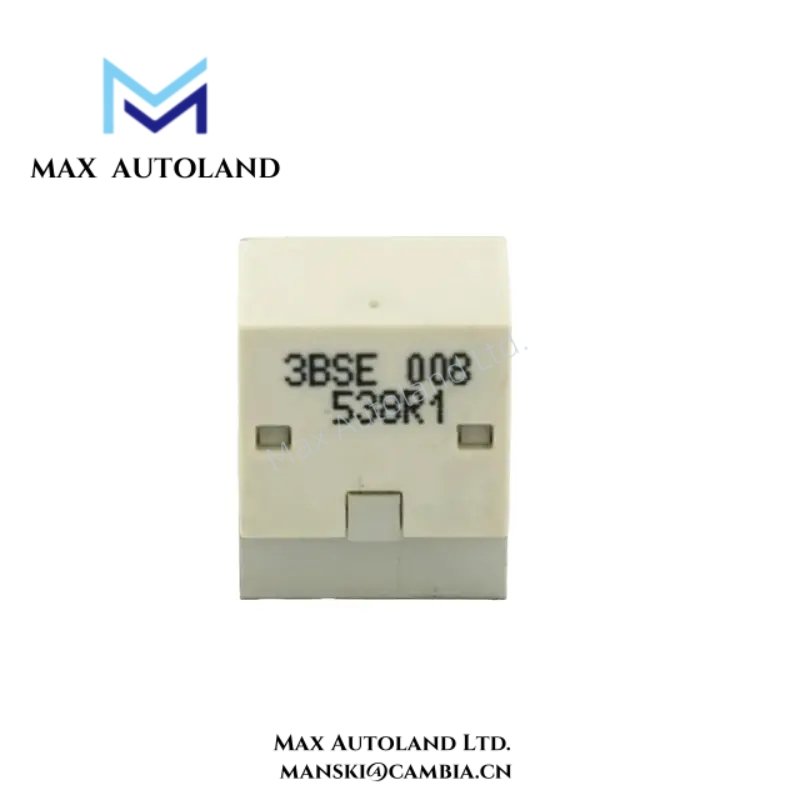

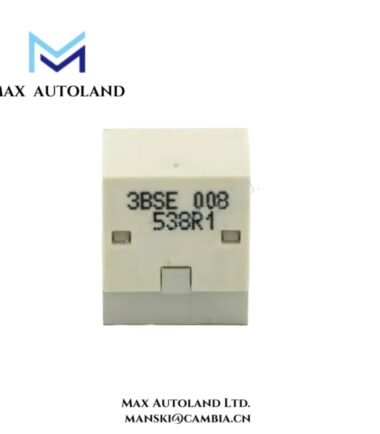

| Product Name | ABB TB807 Modulebus Terminator |
| ABB Type Designation | TB807 |
| Ordering Number | 3BSE00853R1 |
| Module Type | Passive Modulebus Terminator |
| Function | Electrical termination of S800 I/O Modulebus |
| Supported Systems | ABB Advant OCS, ABB 800xA |
| Compatible I/O Family | S800 I/O |
| Electrical Design | Passive termination, no power supply required |
| Installation Location | End of Modulebus segment |
| Configuration Required | None |
| Mechanical Design | Plug-in terminator module |
| Weight | Approx. 0.05 kg |
| Environmental Compliance | RoHS exempt according to ABB documentation |
| Operating Environment | Industrial control cabinets |
| HS Code | 85389091 |
FAQ
A1: TB807 provides correct electrical termination for the S800 I/O Modulebus, ensuring stable and reliable communication.Q2: Does the TB807 require power or configuration?
A2: No, TB807 is a passive device and operates without power, parameters, or software settings.
Q3: Which ABB systems support the TB807?
A3: TB807 supports ABB Advant OCS and ABB 800xA systems using S800 I/O modules.
Q4: Where should the TB807 be installed in the system?
A4: TB807 installs at the end of the Modulebus segment to prevent signal reflections.
Q5: Can TB807 resolve intermittent I/O communication faults?
A5: Yes, proper termination often eliminates unstable communication caused by missing or incorrect terminators.
