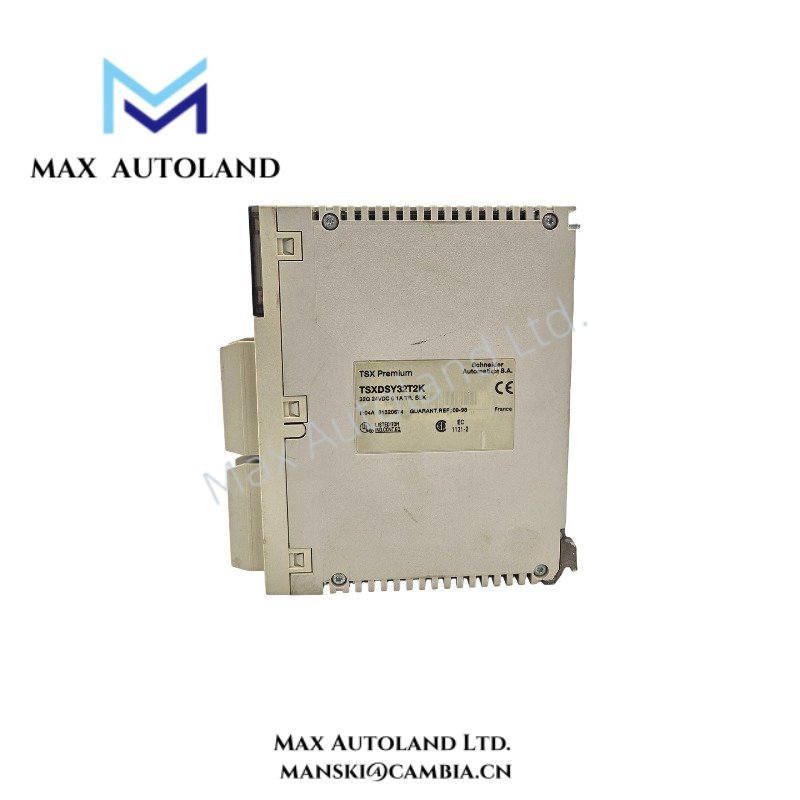

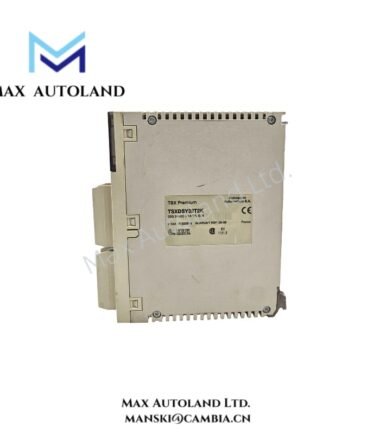

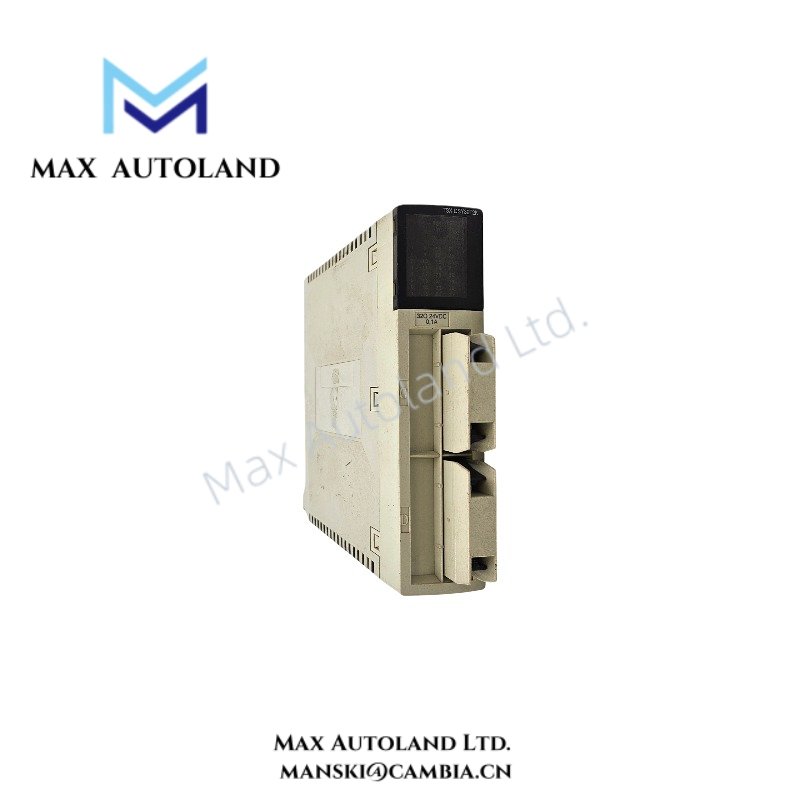

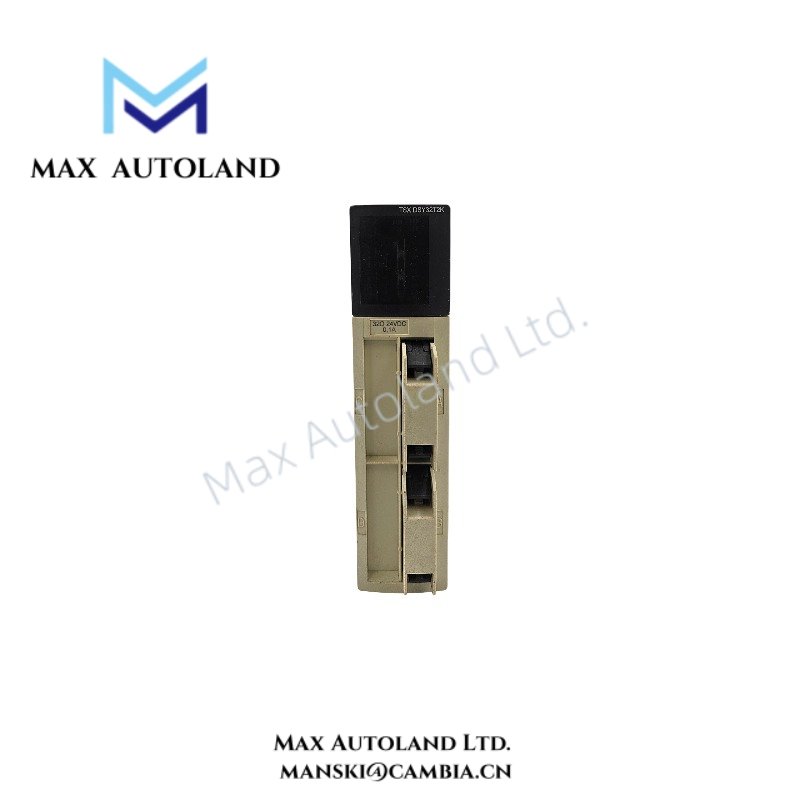

Schneider Electric TSXDSY32T2K TSX Micro PLC Discrete Output Module

Configured for discrete DC output switching in the TSX Micro PLC platform, the Schneider Electric TSXDSY32T2K (TSXDSY32 discrete output module) provides direct electrical execution. The module integrates 32 protected solid-state outputs operating at 24 V DC positive, with individual channel current up to 0.1 A and protection functions for overload, short circuit, reverse polarity, and overvoltage.

Suffix Breakdown & Model Matrix

The available documentation identifies TSXDSY32T2K as a complete catalog number. No official suffix decomposition or ordering matrix is specified in the provided technical data.

Hardware Specifications

I/O Density Scaling within TSX Micro PLC Systems

The TSXDSY32T2K increases digital output capacity by providing 32 discrete output channels within a single module. This output density allows multiple field actuators to be controlled while reducing occupied rack space compared with lower-density output modules.

Communication with the TSX Micro PLC backplane transfers output image data between the processor and the module. Output execution occurs locally within the module after the PLC updates the output memory. Protection circuitry, including automatic overload and short-circuit trip functions, limits fault propagation to the field wiring while maintaining backplane communication with the controller.

Frequently Asked Questions

Q: Does the TSXDSY32T2K support output paralleling for higher load current?
A: Yes. The module documentation specifies that outputs may be connected in parallel, with a maximum of three outputs operating together.

Q: What protection functions are integrated into the output channels?
A: Each module includes automatic overload protection, automatic short-circuit protection, reverse polarity protection using a reverse mounted diode, and overvoltage protection using transil diodes.

Q: Is the module designed for hot replacement while the PLC is energized?
A: The provided technical documentation does not specify hot-swap capability. Installation or replacement should follow the procedures defined for the TSX Micro PLC system with power isolated unless otherwise stated in the official system documentation.

Field Installation Guidelines

• Verify that the installed PLC rack and slot support the TSXDSY32T2K before module insertion.
• Remove system power prior to installation unless the host system documentation explicitly permits energized replacement.
• Confirm that the field supply matches the specified 24 V DC positive output rating.
• Keep output wiring separated from high-voltage or high-frequency power cables to minimize electrical interference.
• Connect cable shields according to the control cabinet grounding practice to reduce conducted noise.
• Ensure connected loads remain within the specified per-channel and total module current limits.
• Inspect field wiring for short circuits before energizing the output channels to prevent unnecessary protective trips.
