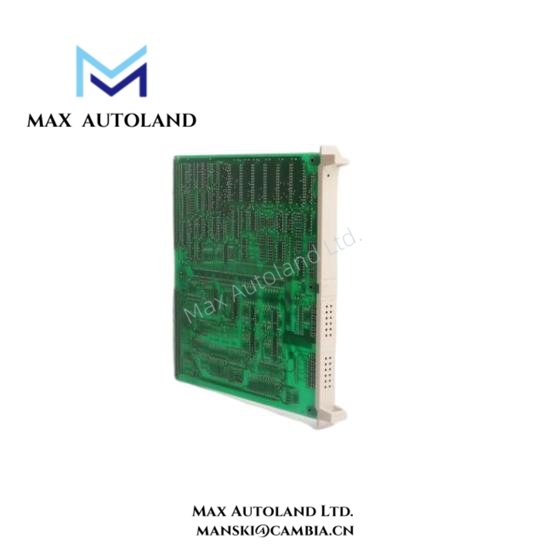

Overview
It connects incremental encoders directly to ABB Advant OCS and 800xA platforms for accurate motion-related measurements.
Moreover, the module delivers reliable high-speed signal processing, even within electrically noisy industrial environments.
Therefore, engineers rely on this unit to achieve stable positioning and speed feedback in critical control applications.
Designed for long-term industrial operation, the DSDP150 supports consistent performance across continuous-duty automation systems.
In addition, ABB manufacturing quality ensures predictable behavior throughout extended service lifecycles.
Specification
| Parameter | Description |
|---|---|
| Product Type | Pulse Encoder Input Unit |
| Manufacturer | ABB |
| Model Number | DSDP150 |
| Order Number | 57160001-GF |
| System Compatibility | ABB Advant OCS and ABB 800xA |
| Input Signal Type | Incremental encoder pulse signals |
| Supported Functions | Pulse counting, speed, and position measurement |
| Channel Design | Multi-channel encoder input processing |
| Signal Processing | High-speed digital pulse evaluation |
| Integration Method | ABB I/O system backplane mounting |
| Operating Mode | Continuous industrial operation |
| Application Focus | Motion feedback and positioning control |
| Mechanical Design | Compact module for control cabinet installation |
| Reliability Standard | Designed to ABB industrial quality requirements |
| Maintenance Requirement | No routine maintenance beyond standard inspections |
FAQ
A1: It processes pulse encoder signals to provide accurate speed and position feedback to control systems.
Q2: Which control systems support the DSDP150 input unit?
A2: It is designed for ABB Advant OCS and ABB 800xA automation platforms.
Q3: Can this module handle high-speed encoder signals?
A3: Yes, it supports high-speed pulse processing for precise motion measurement.
Q4: Is the DSDP150 suitable for continuous industrial operation?
A4: Yes, it is designed for continuous-duty use in industrial automation environments.
Q5: Does the module require regular maintenance?
A5: No routine maintenance is required beyond standard visual inspection during servicing.
