Overview
Specification
| Parameter | Description |
|---|---|

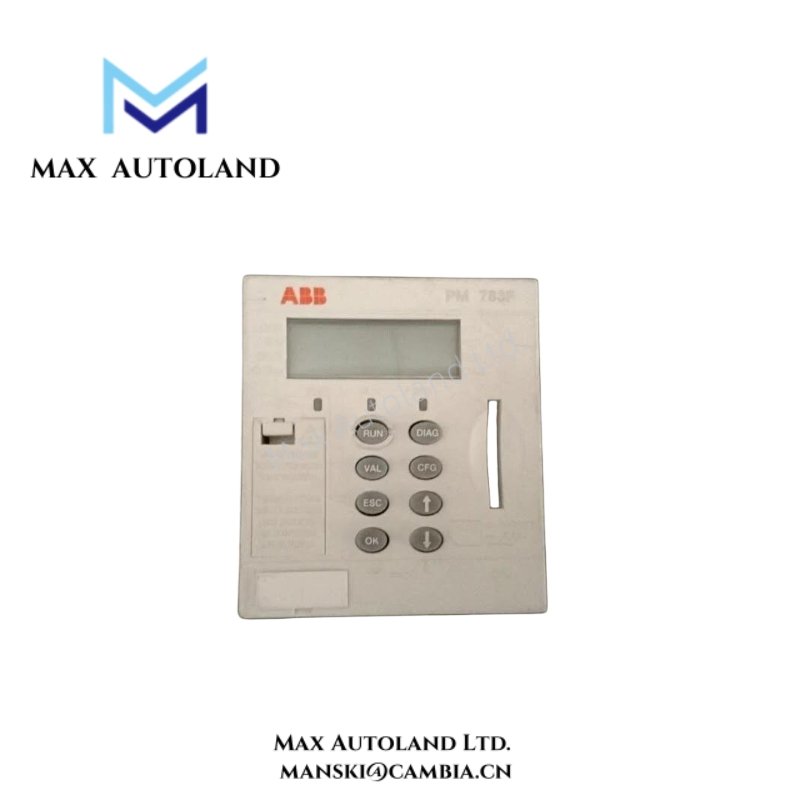

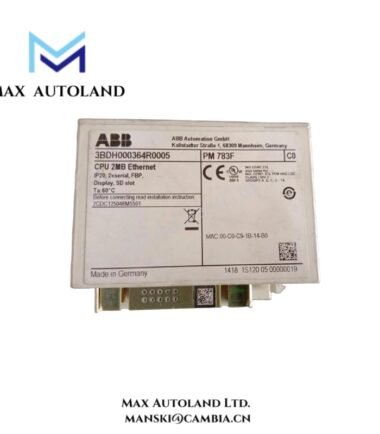

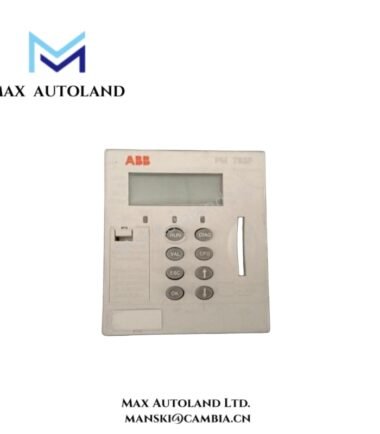

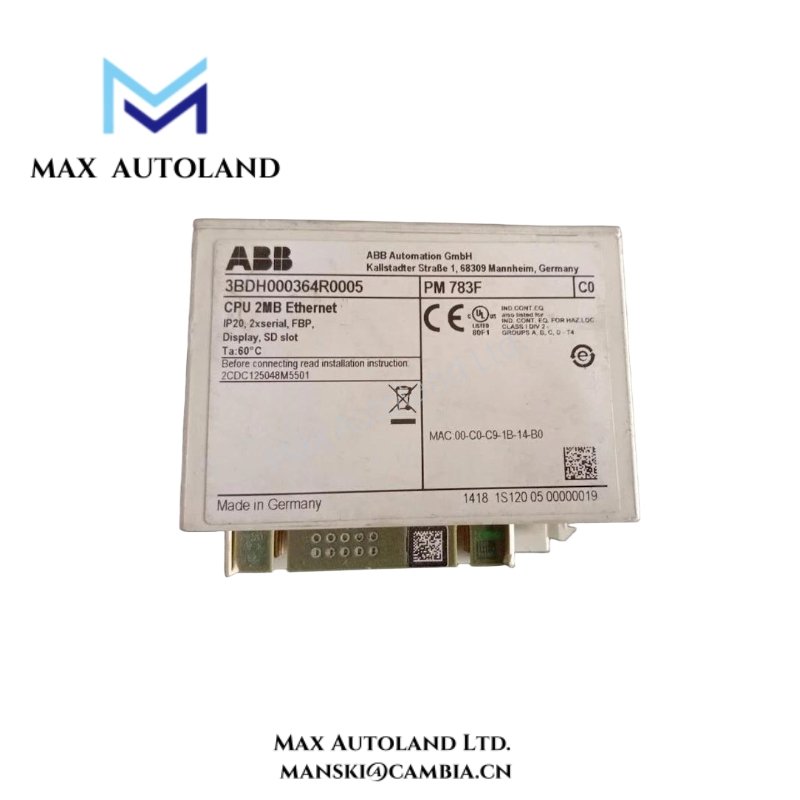

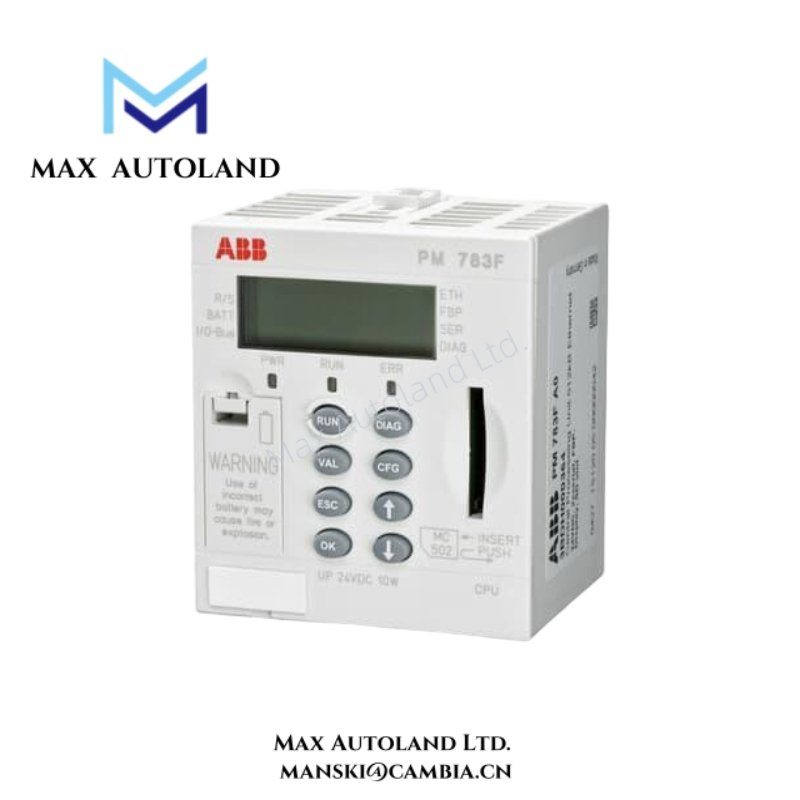

| Model | ABB PM783F |
| Order Number | 3BDH000364R0005 |
| Module Type | CPU Module / Central Processing Unit |
| Function | Logic processing, communication, and system coordination |
| Processor | High-performance ABB proprietary CPU |
| Memory | 512 MB RAM, 128 MB Flash |
| Communication Interfaces | RS-485, Ethernet, ABB proprietary bus |
| Input Voltage | 24 V DC ±10% |
| Power Consumption | 15 W typical, 20 W maximum |
| Operating Temperature | 0–55°C (32–131°F) |
| Storage Temperature | -20–70°C (-4–158°F) |
| Relative Humidity | 5–95% RH, non-condensing |
| Diagnostics | LEDs for power, CPU status, bus activity, and I/O status |
| Mounting | DIN rail or panel mounting, standard ABB footprint |
| Response Time | < 2 ms for digital inputs and outputs |
| Isolation | Galvanic isolation between input, output, and communication circuits |
| EMC Compliance | IEC 61000-6-2 / IEC 61000-6-4 standards |
| Maintenance | Minimal; periodic inspection of indicators and connectors recommended |
FAQ
A: It executes high-speed logic operations, communication, and system coordination for industrial automation.
Q2: Can it integrate with ABB UNITROL controllers?
A: Yes, it integrates seamlessly with ABB UNITROL and compatible peripheral modules.
Q3: What are the operating temperature and humidity ranges?
A: The module operates at 0–55°C with 5–95% non-condensing relative humidity.
Q4: How often does the PM783F require maintenance?
A: Minimal maintenance is needed; periodic inspection of LEDs and connectors is sufficient.
Q5: Does the CPU support real-time communication?
A: Yes, it supports RS-485, Ethernet, and ABB proprietary bus for real-time data exchange.
Q6: How does the module ensure reliable operation?
A: Robust design, diagnostic LEDs, and error detection features provide high uptime and reliability.
