Overview
Specification
| Parameter | Specification / Description |
|---|---|

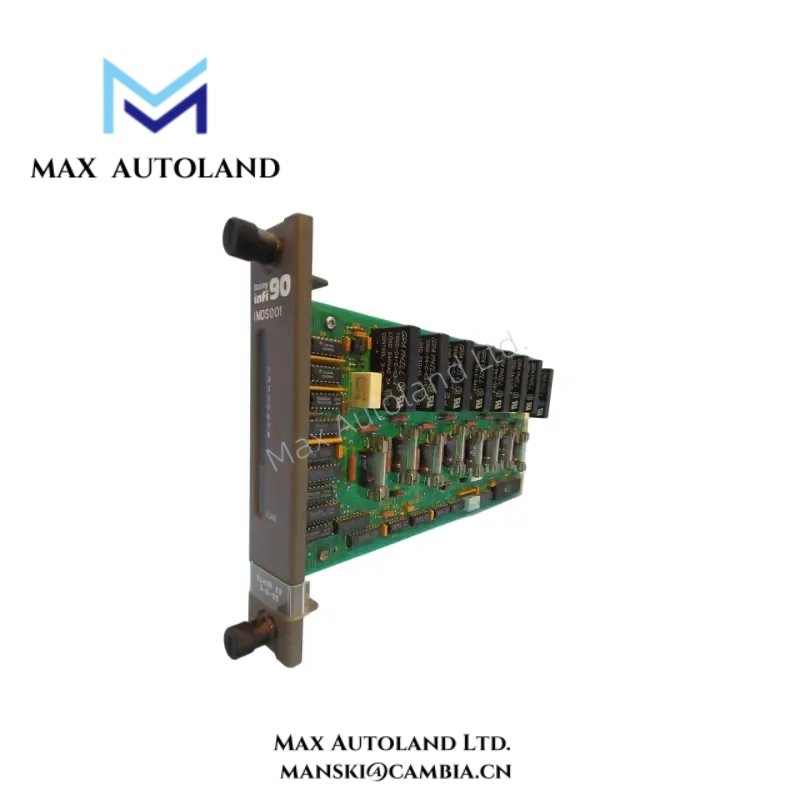

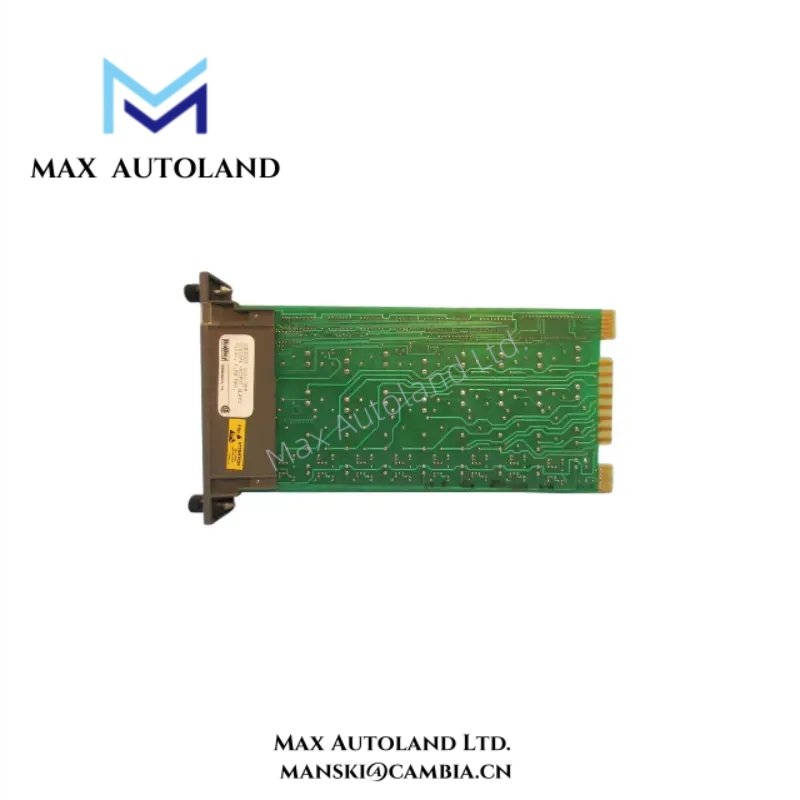

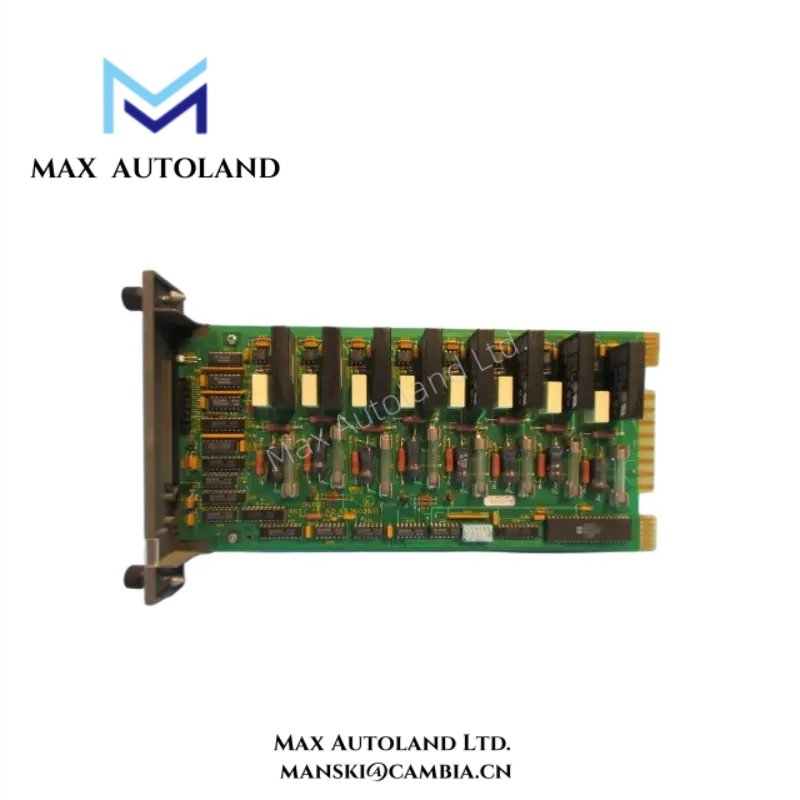

| Model | IMDSO01 |
| Module Type | Digital Output Module |
| Number of Outputs | 16 discrete digital outputs |
| Output Type | Relay/contact or transistor-switched outputs (configurable) |
| Output Voltage Range | 24 VDC nominal (typical) |
| Output Current | Up to 0.5–1 A per channel (depending on module configuration) |
| Communication Interfaces | Multi-Function Processor Module (MFP) |
| Switching Speed | High-speed switching (<5 ms typical) |
| Response Time | <5 ms typical |
| Power Requirements | 24 VDC nominal, compatible with Infi 90 system standards |
| Installation | Mounts on Module Mounting Unit (MMU) |
| Status Indicators | LEDs for channel state and module operation |
| Operating Temperature Range | –20°C to +60°C |
| Humidity Range | 5% to 95% non-condensing |
| Vibration Resistance | 2–13.2 Hz, 1.5 mm peak-to-peak displacement |
| Shock Resistance | 15 g, 11 ms half-sine pulse |
| Safety / Compliance Standards | ABB industrial safety, EMC compliance, CE marking |
| Maintenance / Serviceability | Supports quick replacement and preventive maintenance |
| Typical Applications | Discrete device control, relay actuation, industrial automation, system integration |
FAQ
It supports 16 discrete digital output channels.
Q2: Which modules does the IMDSO01 communicate with?
It interfaces with Multi-Function Processor Modules (MFP) for process control.
Q3: Can it operate in harsh industrial conditions?
Yes, it is rated for –20°C to +60°C and 5%–95% non-condensing humidity.
Q4: Does it allow high-speed switching?
Yes, it supports fast output switching, typically under 5 milliseconds.
Q5: How is the module installed?
It mounts securely on the Module Mounting Unit (MMU) within Infi 90 systems.
Q6: Is the module compliant with industrial safety standards?
Yes, it meets ABB industrial safety, EMC, and CE standards.
