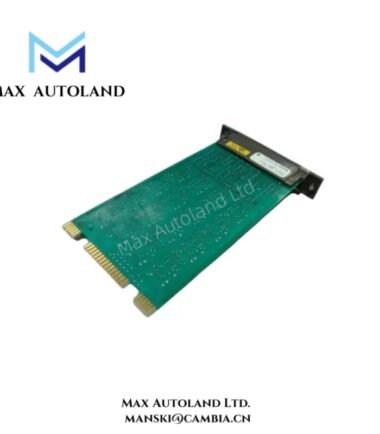

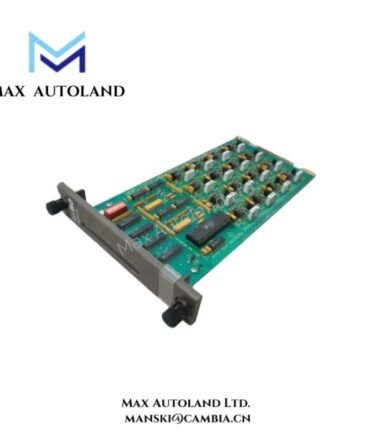

Overview
It collects field-level digital inputs and transfers accurate status data to controllers, therefore supporting stable process monitoring.
Moreover, the module operates as a slave I/O device, ensuring deterministic communication within distributed control architectures.
Engineers deploy the IMDSI02 in long-running plants where dependable digital input performance directly affects operational safety.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | ABB (Bailey Controls) |
| Product Model | IMDSI02 |
| Product Type | Digital Slave Input Module |
| Compatible Systems | ABB Bailey Infi 90 and Net 90 DCS platforms |
| I/O Function | Discrete digital input acquisition |
| Input Channel Count | 16 digital input channels |
| Input Signal Type | Contact closure and logic-level digital signals |
| Input Voltage Rating | Nominal 24 VDC digital signals |
| Isolation | Channel-to-system electrical isolation |
| Data Communication | Slave communication over Infi 90 I/O network |
| Diagnostics | Input status and module health indicators |
| Configuration Method | Infi 90 engineering and configuration tools |
| Mounting Method | Standard Infi 90 module rack or card cage |
| Power Supply | Supplied through system backplane |
| Operating Environment | Industrial control room cabinets |
| Application Lifecycle | Suitable for active and legacy ABB control systems |
FAQ
A1: It acquires discrete digital input signals and communicates their status to Infi 90 and Net 90 controllers.
Q2: How many digital input channels does the IMDSI02 provide?
A2: The module provides 16 digital input channels for field device monitoring.
Q3: What types of signals can the IMDSI02 accept?
A3: It accepts contact closures and standard 24 VDC digital input signals.
Q4: Does the IMDSI02 include diagnostic indicators?
A4: Yes, front-panel LEDs indicate individual input status and overall module health.
Q5: Is the IMDSI02 suitable for legacy system maintenance?
A5: Yes, it is widely used to maintain and extend the service life of existing Bailey control systems.
Q6: How is the IMDSI02 configured within the control system?
A6: Engineers configure it using standard ABB Infi 90 engineering and configuration tools.
