Overview

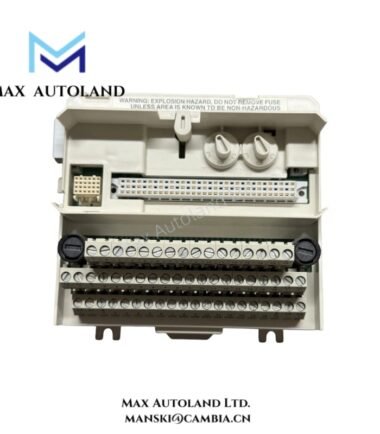

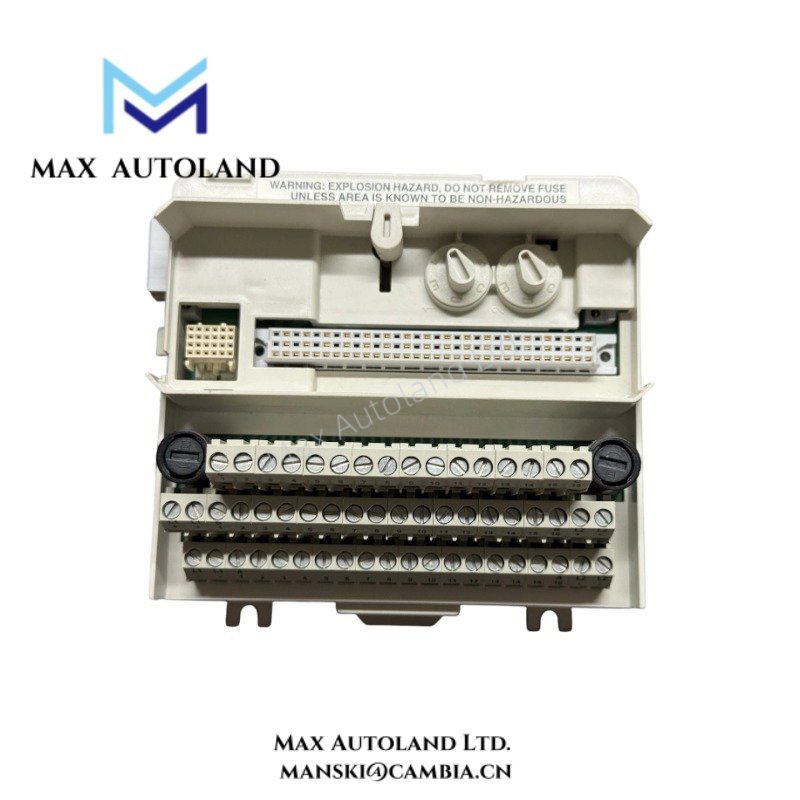

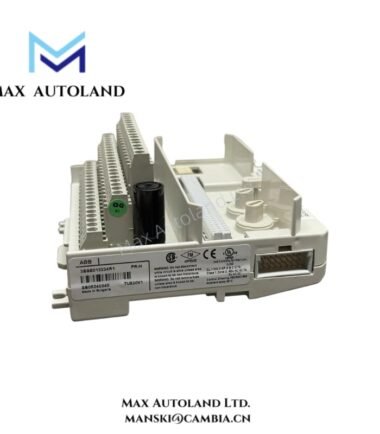

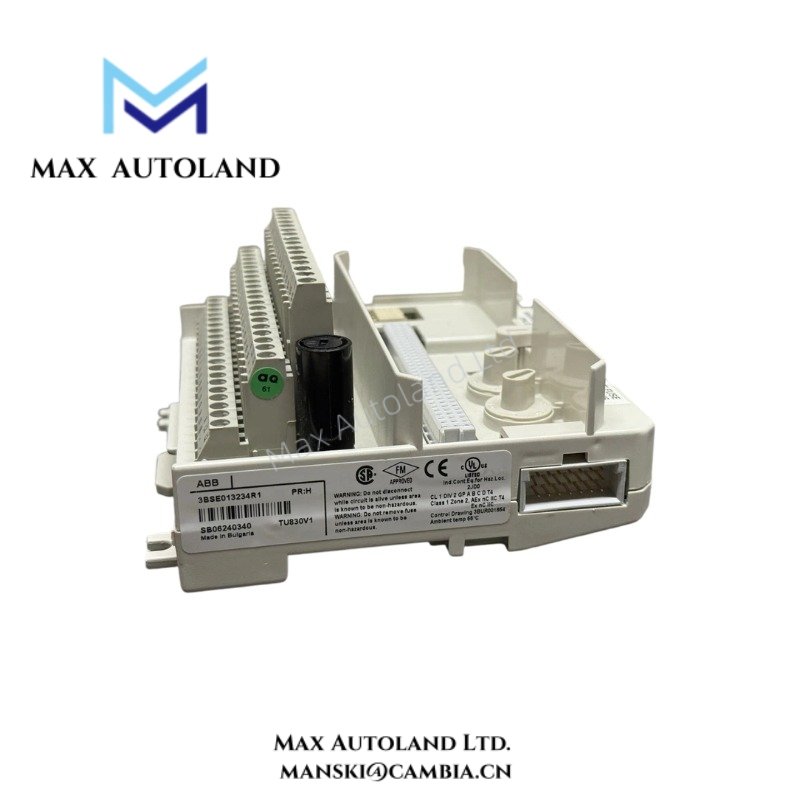

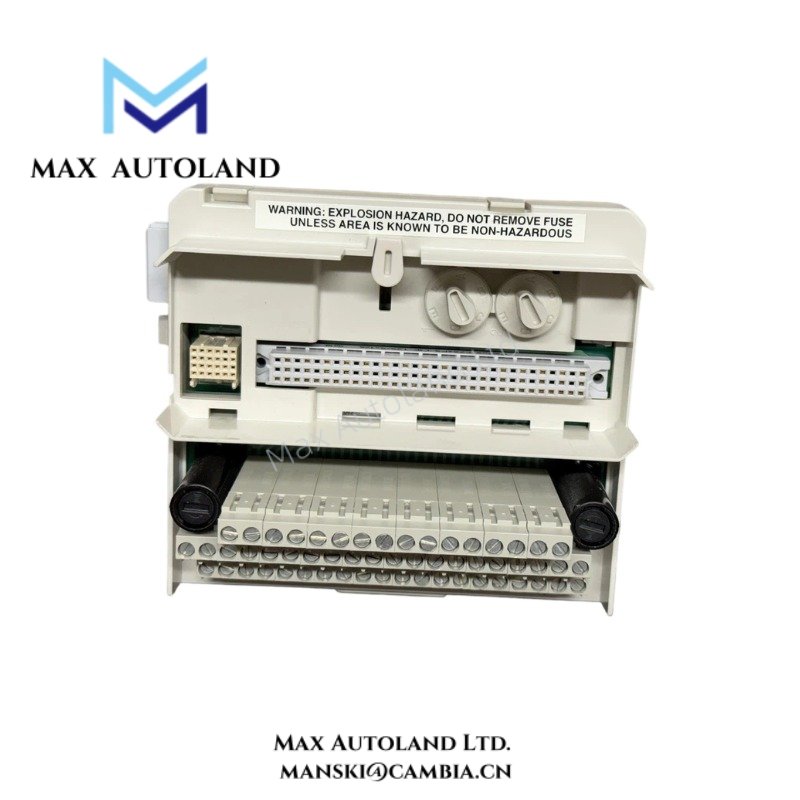

The ABB TU830V1 (3BSE013234R1) serves as an Extended Module Termination Unit (MTU) designed specifically for the S800 I/O system within the Advant OCS and 800xA automation platforms. This robust component acts as the essential physical and electrical interface between field wiring and I/O modules. By utilizing a compact design, the TU830V1 maximizes cabinet space while maintaining high signal integrity for critical industrial processes. Engineers frequently select this MTU because it simplifies the installation of up to 16 redundant or non-redundant signal channels in demanding environments.
Functional Highlights and Engineering Benefits
This termination unit features dual rows of 16 signal terminals each, which provides ample connectivity for complex sensor and actuator networks. Furthermore, the TU830V1 supports “Hot Swap” functionality, allowing maintenance teams to replace I/O modules without disrupting the entire system’s power or communication bus. The unit’s mechanical locking mechanism ensures that the I/O module remains securely seated even under significant vibration. Consequently, this reliability reduces unplanned downtime and lowers the total cost of ownership for large-scale automation facilities.
Specification
| Parameter | Description |
|---|---|
| Product Type | Extended Module Termination Unit (MTU) |
| Model | TU830V1 |
| Order Code | 3BSE013234R1 |
| Manufacturer | ABB |
| System Family | ABB Advant OCS / ABB 800xA |
| Function | Field signal termination and I/O module interface |
| I/O Capacity | Supports high-density distributed I/O configurations |
| Connection Type | Rack-mounted terminal interface |
| Installation Method | Mounted on S800 I/O module baseplate or cabinet rack |
| Signal Handling | Digital and analog field signal termination support |
| Communication Role | Passive interface between field wiring and control modules |
| Electrical Isolation | Provides system-level signal separation for stability |
| Operating Environment | Industrial control cabinets and process automation systems |
| Temperature Range | Designed for standard industrial operating conditions |
| Mounting Position | Horizontal rack installation within control system chassis |
| Maintenance Level | Low maintenance, designed for long lifecycle operation |
| Compatibility | Fully compatible with ABB S800 I/O architecture |
| Application Scope | Process automation, power generation, oil & gas systems |
| Design Purpose | Expands wiring capacity and improves system scalability |
| Reliability Design | Built for continuous 24/7 industrial operation |
FAQ
Q1: What is the primary difference between the TU830V1 and standard MTUs? A1: The TU830V1 is an “Extended” MTU, meaning it provides additional terminal space (2×16) compared to compact versions. This allows for more complex field wiring and easier access for maintenance in high-density cabinets.
Q2: Can I replace an I/O module on the TU830V1 while the system is running? A2: Yes, the TU830V1 supports Hot Swap functionality. However, you must always follow site-specific safety protocols and ensure the specific I/O module being replaced also supports “Modulebus” live insertion.
Q3: Which ABB I/O modules are compatible with this termination unit? A3: The TU830V1 is designed for the S800 I/O family. It is compatible with a wide variety of analog and digital modules used within the Advant OCS and 800xA control systems.
Q4: Does the TU830V1 require a specific mounting orientation? A4: While it is typically mounted horizontally on a 35mm DIN rail for optimal heat dissipation, it can be mounted vertically if cabinet space is restricted. Always refer to the ABB S800 I/O User Manual for specific thermal derating curves.
Q5: Is the TU830V1 compliant with international environmental standards? A5: Absolutely. The unit is fully compliant with RoHS Directive 2011/65/EU and falls under the WEEE category for small equipment, ensuring environmentally responsible industrial use.
