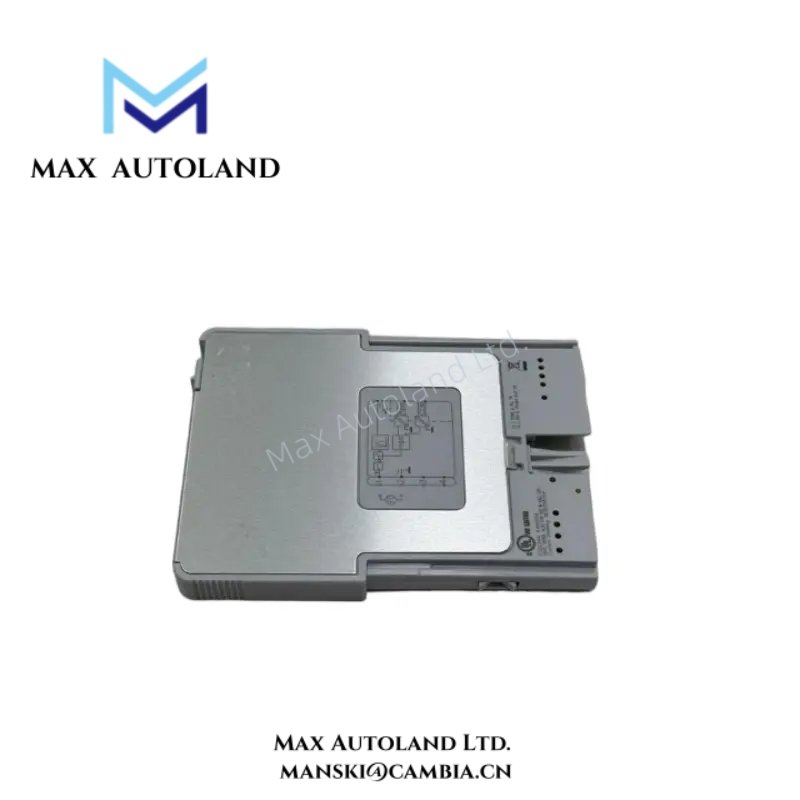

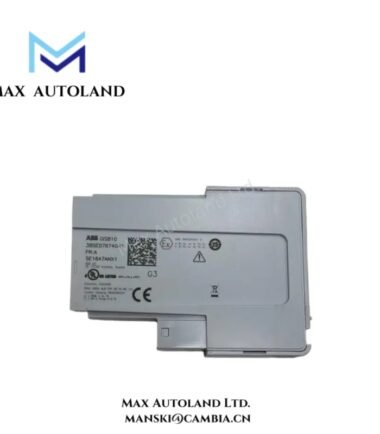

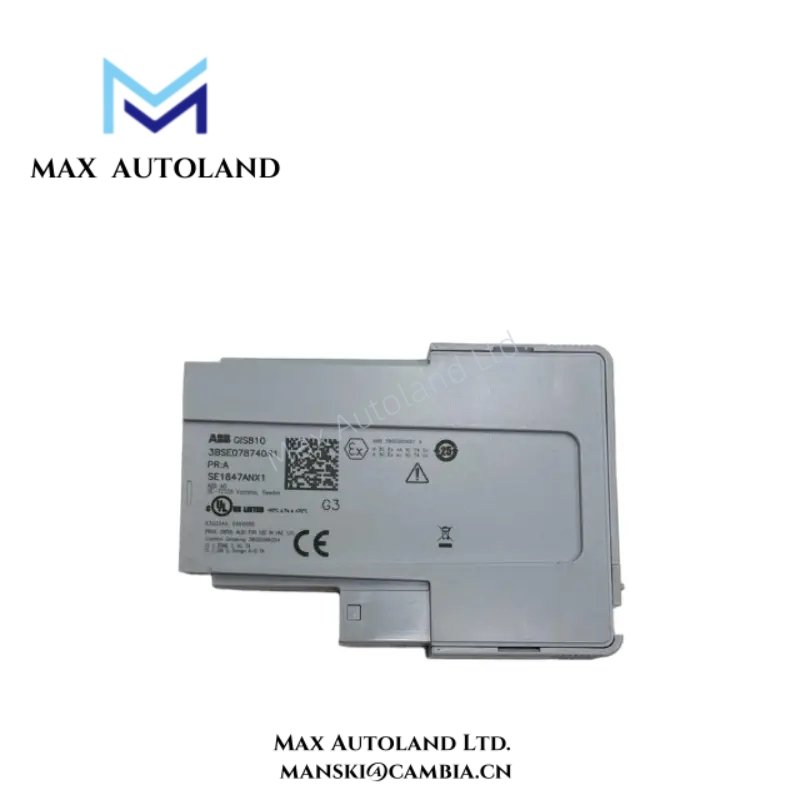

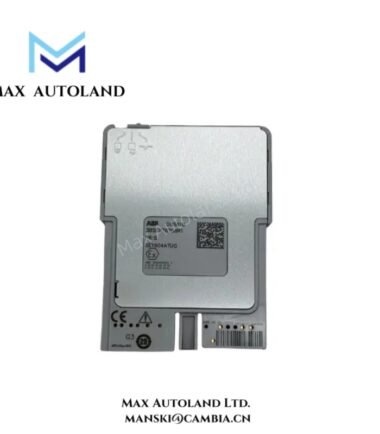

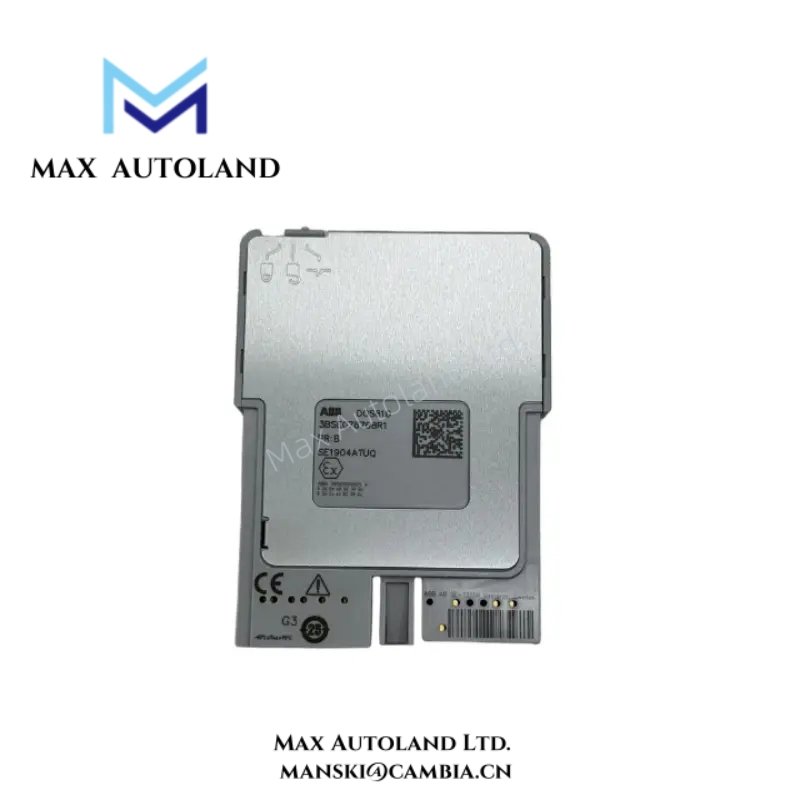

Overview
It delivers stable signal switching for industrial automation environments requiring precise actuator and device control.
Moreover, the module supports demanding process automation applications where operational continuity and signal integrity remain critical.
ABB engineered this module for long-term performance within distributed control systems and complex factory automation architectures.
Specification
| Parameter | Specification |
|---|---|
| Product Name | Digital Output Module |
| ABB Model | DOS810 |
| ABB Order Number | 3BSE078768R1 |
| Control System Compatibility | ABB Advant OCS, ABB System 800xA |
| I/O Type | Digital Output |
| Number of Output Channels | 8 channels |
| Nominal Output Voltage | 24 V DC |
| Output Signal Type | Discrete digital switching |
| Load Type | Industrial actuators, relays, solenoids |
| Electrical Isolation | Channel and system-level isolation |
| Output Protection | Designed for industrial electrical noise environments |
| Switching Performance | Stable and deterministic output control |
| Mounting Method | ABB system rack mounting |
| Communication Interface | Integrated via ABB system backplane |
| Operating Environment | Harsh industrial automation conditions |
| Typical Application Class | Process control, factory automation |
| System Architecture Support | PLC and DCS-based control systems |
| Service Life Expectancy | Designed for long-term continuous operation |
| Maintenance Requirement | Minimal, no regular calibration required |
FAQ
Q1: Is the DOS810 compatible with both Advant OCS and System 800xA?
Yes, the DOS810 3BSE078768R1 is fully compatible with Advant OCS and ABB 800xA control systems.
Q2: What type of devices can this digital output module control?
It commonly controls solenoid valves, relays, alarms, contactors, and other 24V industrial actuators.
Q3: Does the module support industrial electrical noise environments?
Yes, ABB designs the DOS810 with isolation and noise resistance suitable for harsh industrial conditions.
Q4: Is this module suitable for system upgrades or replacements?
Therefore, engineers often use DOS810 as a direct replacement in system expansion or modernization projects.
Q5: How reliable is the DOS810 for continuous operation?
The module is engineered for long-term, continuous use in mission-critical automation systems.
