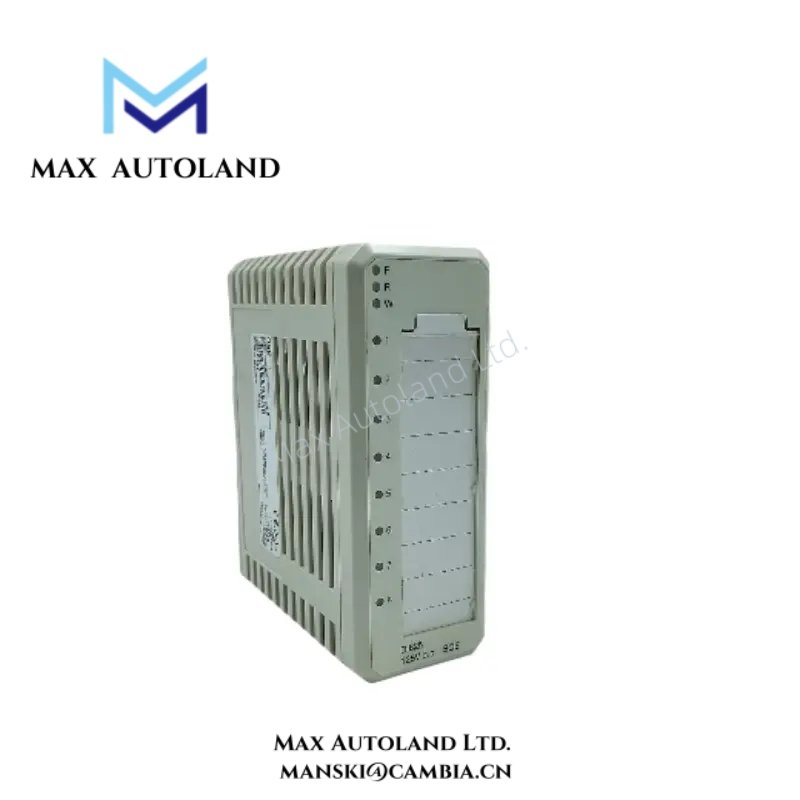

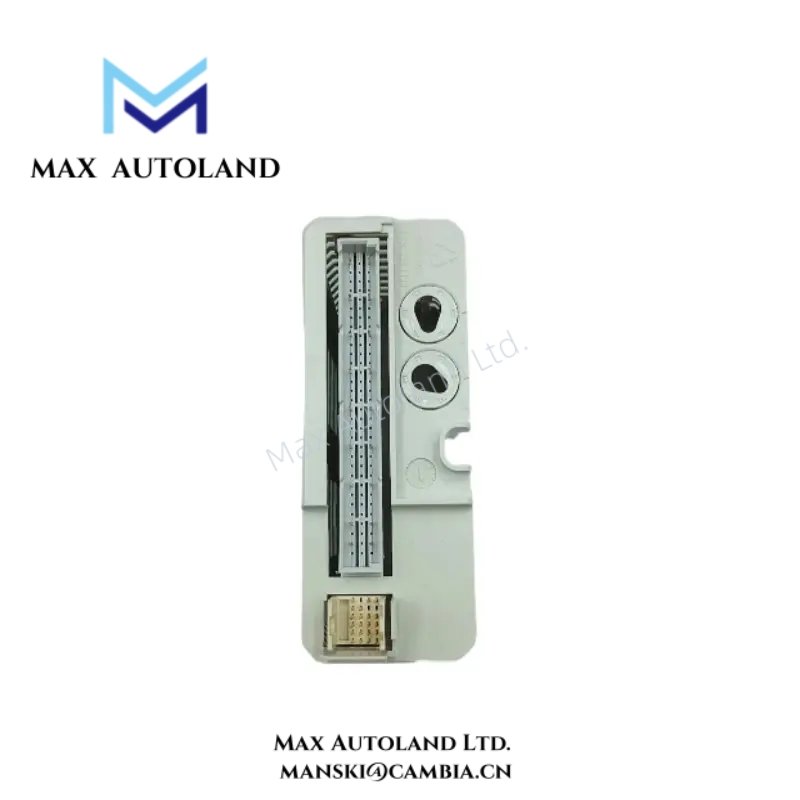

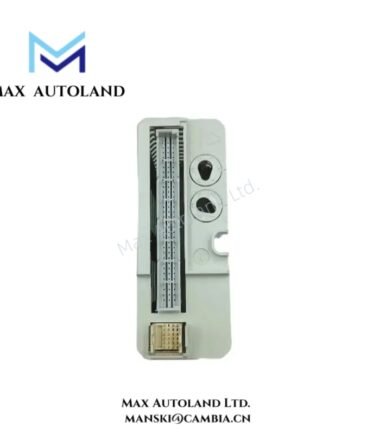

Overview
Moreover, it captures events with high-resolution timing for accurate sequence-of-events analysis.
Designed for critical industrial processes, DI825 ensures reliable operation even in noisy electrical environments.
In addition, its compact design allows easy installation into standard ABB control racks, optimizing cabinet layout.
Specification
| Parameter | Specification |
|---|---|
| Model | DI825 |
| ABB Part Number | 3BSE036373R1 |
| Manufacturer | ABB |
| Product Type | SOE Digital Input Module |
| Series / System | Advant OCS / 800xA |
| Input Channels | 16 discrete channels |
| Input Signal Type | Dry contact or 24 V DC |
| Isolation | Channel-to-backplane isolation |
| Input Voltage Range | 0–30 V DC nominal |
| Input Current | Typical 4–8 mA per channel |
| Response Time | <5 ms per input |
| SOE Timestamp Resolution | 1 ms |
| Status Indicators | LED per channel |
| Power Supply | 24 V DC from backplane |
| Typical Power Consumption | 3 W |
| Dimensions | 186 × 59 × 127 mm |
| Weight | Approx. 0.7 kg |
| Mounting | Advant OCS / 800xA rack mount |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | −40°C to 70°C |
| Humidity | 5%–95%, non-condensing |
| Protection | IP20 (rack-mounted) |
| EMC Compliance | EN 61000-6-2, EN 61000-6-4 |
| Regulatory Compliance | CE, RoHS |
| Energy Storage | None |
FAQ
Q1: Is ABB DI825 an original product?
Yes, DI825 is 100% brand-new and original from ABB.
Q2: Do you have DI825 in stock?
Yes, we keep DI825 modules in stock for immediate dispatch.
Q3: How fast can DI825 be shipped?
Shipping usually occurs within 3 days to 2 weeks depending on order quantity.
Q4: Which shipping carriers are commonly used?
We ship via DHL and other reliable international logistics providers.
Q5: Can DI825 reliably capture events in noisy electrical environments?
Yes, DI825 uses channel isolation and filtering to ensure accurate signal logging.
Q6: What is the return policy if quality issues occur?
We support returns within 30 days if any defect arises with the product.
