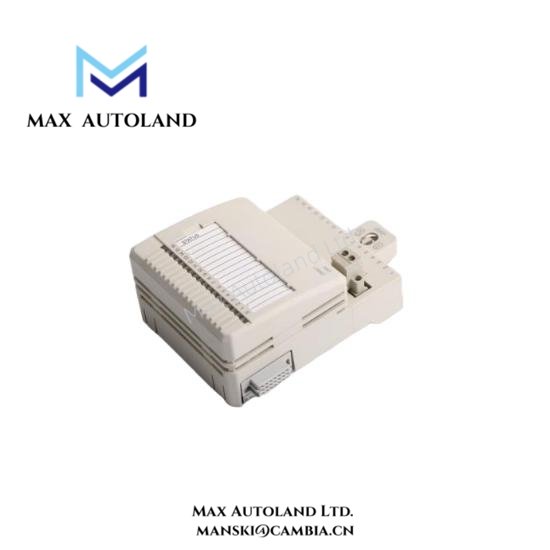

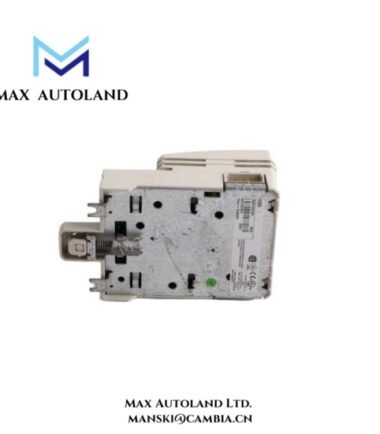

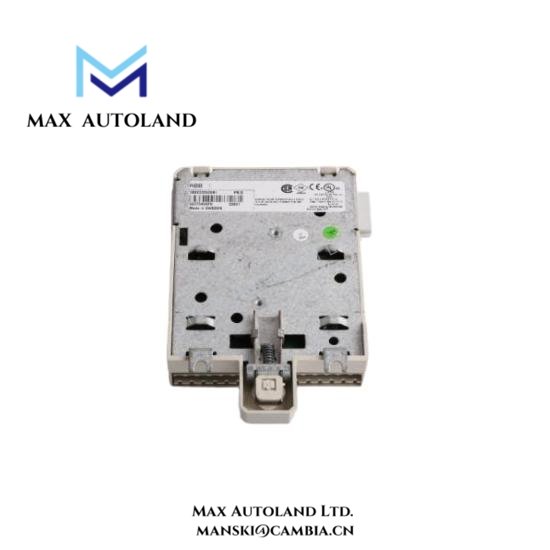

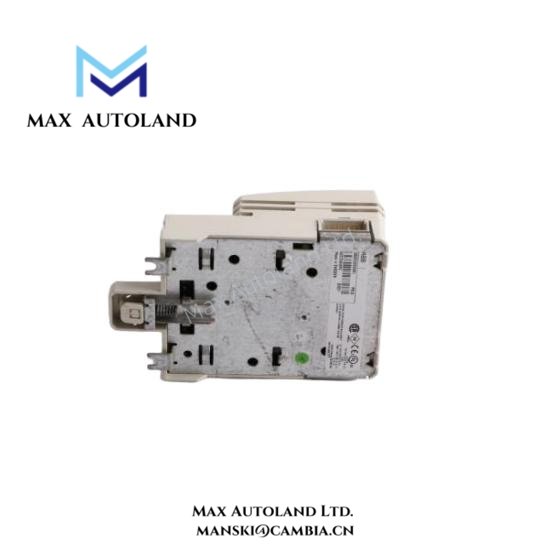

Overview
It accurately captures 24V digital input signals, therefore ensuring fast and stable process control.
Moreover, DI801 integrates seamlessly into ABB racks, reducing installation complexity while maintaining system reliability.
Engineers rely on this module for precise digital signal acquisition and uninterrupted system operation.
Specification
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model Number | DI801 |
| ABB Order Code | 3BSE020508R1 |
| Product Type | Digital Input Module |
| Compatible Systems | ABB Advant OCS, ABB 800xA |
| Number of Channels | 16 digital input channels |
| Input Voltage | 24V DC nominal |
| Input Type | Discrete (on/off) |
| Input Current | 3–6 mA per channel |
| Response Time | <5 ms typical |
| Diagnostics | Status LEDs for each channel |
| Isolation | Channel-to-channel galvanic isolation |
| Mounting | Rack-mounted within control cabinets |
| Environmental Rating | Industrial temperature, vibration, and process tolerance |
| Maintenance | Minimal, periodic inspection recommended |
| Typical Application | Digital signal monitoring, process control, DCS integration |
FAQ
A1: DI801 monitors and acquires 24V digital input signals for Advant OCS and 800xA systems.
Q2: How many channels does DI801 support?
A1: The module supports 16 digital input channels.
Q3: What type of input signals can DI801 handle?
A1: DI801 accepts discrete on/off signals at 24V DC.
Q4: Does DI801 provide diagnostic features?
A1: Yes, LEDs indicate the status of each input channel for easy troubleshooting.
Q5: Can DI801 be integrated into existing ABB racks?
A1: Yes, it installs seamlessly into Advant OCS and 800xA system racks.
Q6: Is DI801 suitable for industrial operations?
A1: Yes, it is designed for reliable, long-term operation under harsh conditions.
