Overview
It enables operators to monitor processes efficiently and respond to events with precision.
Moreover, its compact design allows seamless integration into control cabinets and existing automation frameworks.
Therefore, engineers benefit from improved system reliability and simplified operational management.

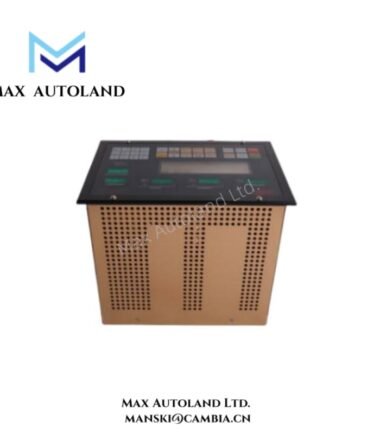

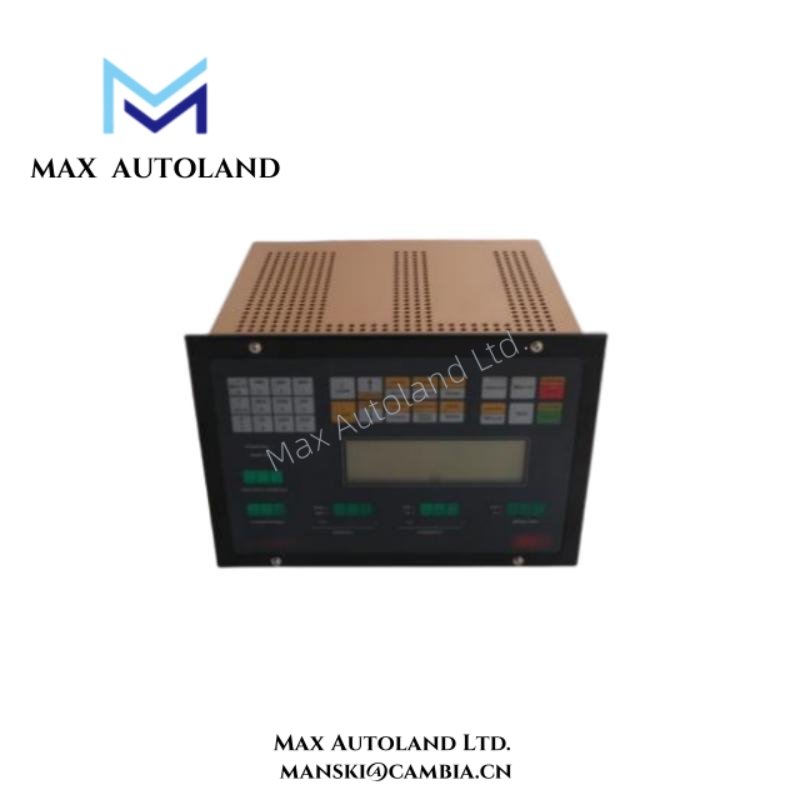

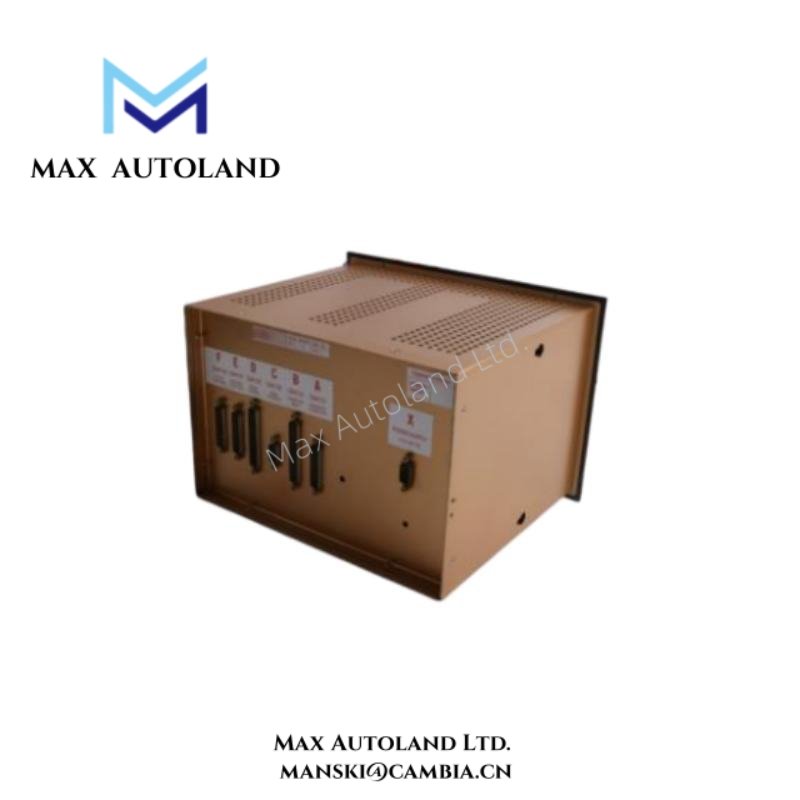

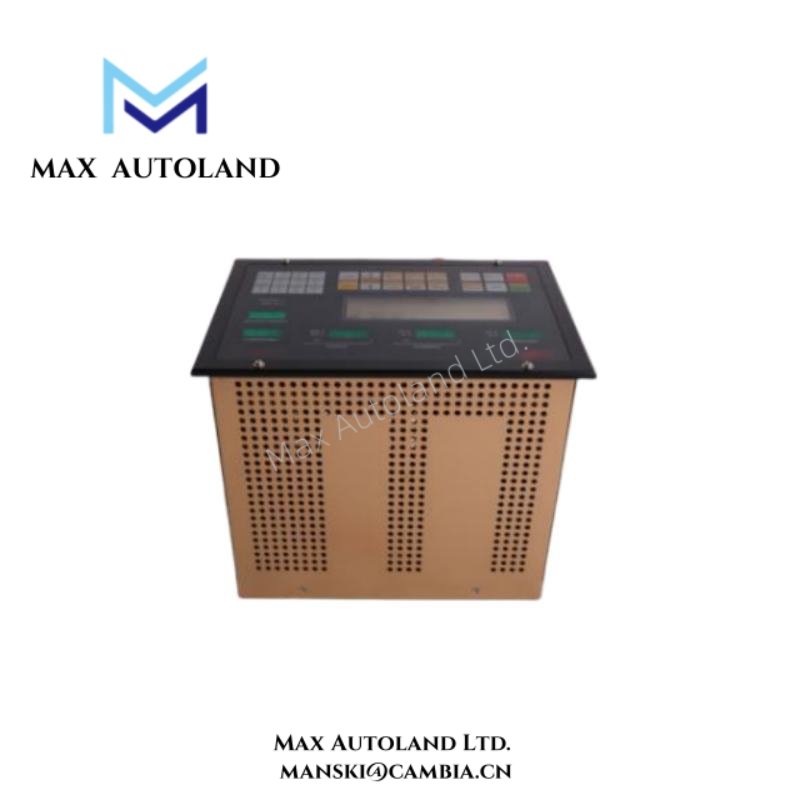

The CMA120 is built to withstand industrial conditions, offering consistent performance over extended operating periods.
In addition, its modular construction allows easy installation, reducing downtime during upgrades or maintenance.
Specification
| Specification | Details |
|---|---|
| Product Model | ABB CMA120 (3DDE300400) |
| Module Type | Basic Controller Panel Unit |
| Power Supply | 24 V DC ±10 % |
| Power Consumption | ~12 W typical |
| Processor | 32‑bit industrial‑grade, 800 MHz |
| Memory | 512 MB Flash, 256 MB RAM |
| Digital I/O Capacity | Up to 256 digital I/O points |
| Analog Inputs | 2 channels (4–20 mA) |
| Communication Ports | 2 × RS‑485, 1 × Ethernet |
| Supported Protocols | Profibus DP, Modbus RTU |
| Operating Temperature | –20 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Protection Rating | IP20 |
| Dimensions | 220 × 150 × 100 mm (approx.) |
| Weight | ~2.5 kg |
| Mounting | Control cabinet installation / DIN rail compatible |
| Signal Support | Analog (4–20 mA) and digital Inputs/Outputs |
| Environmental Compliance | Industrial vibration and temperature tolerance |
| Diagnostics | System status and I/O communication feedback |
FAQ
A1: It provides basic process control and visual feedback for industrial automation systems.
Q2: Can the CMA120 operate in harsh industrial environments?
A2: Yes, it is built with durable materials and tolerates wide temperature and humidity ranges.
Q3: Is the CMA120 compatible with ABB PLCs and DCS systems?
A3: Yes, it integrates seamlessly with ABB control platforms for process monitoring.
Q4: Does the CMA120 provide alarm indication?
A4: Yes, it includes LED indicators for alarms, faults, and operational status.
Q5: Is installation and maintenance of the CMA120 simple?
A5: Yes, its modular panel design allows quick installation and minimal maintenance time.
