Overview

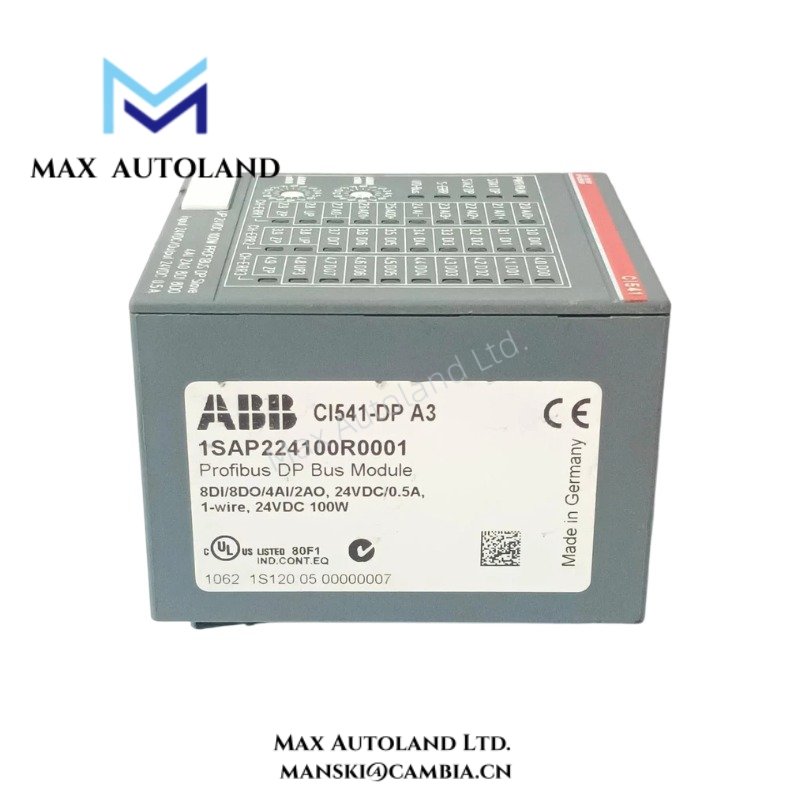

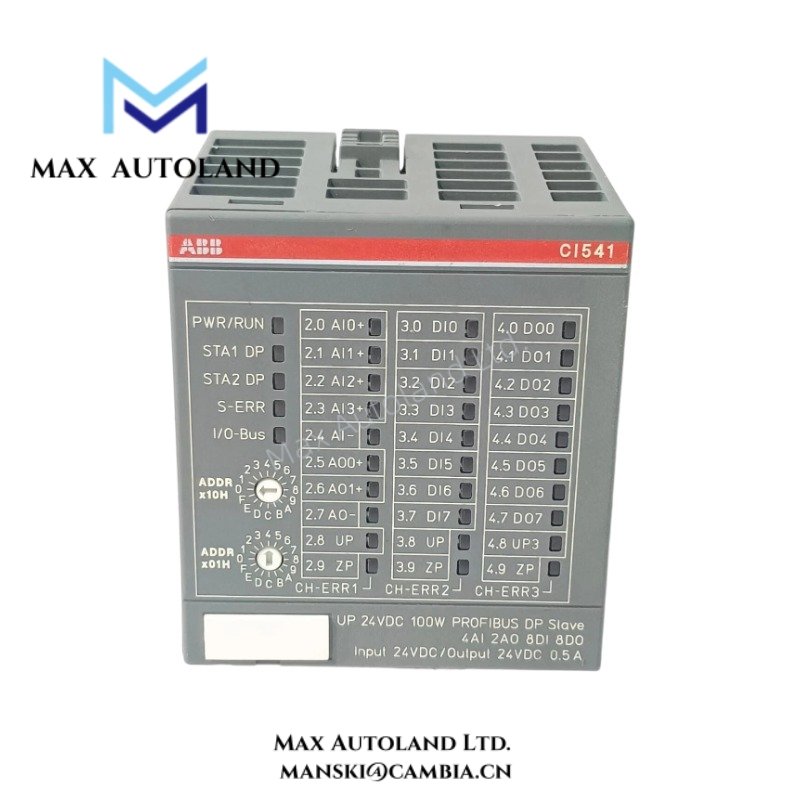

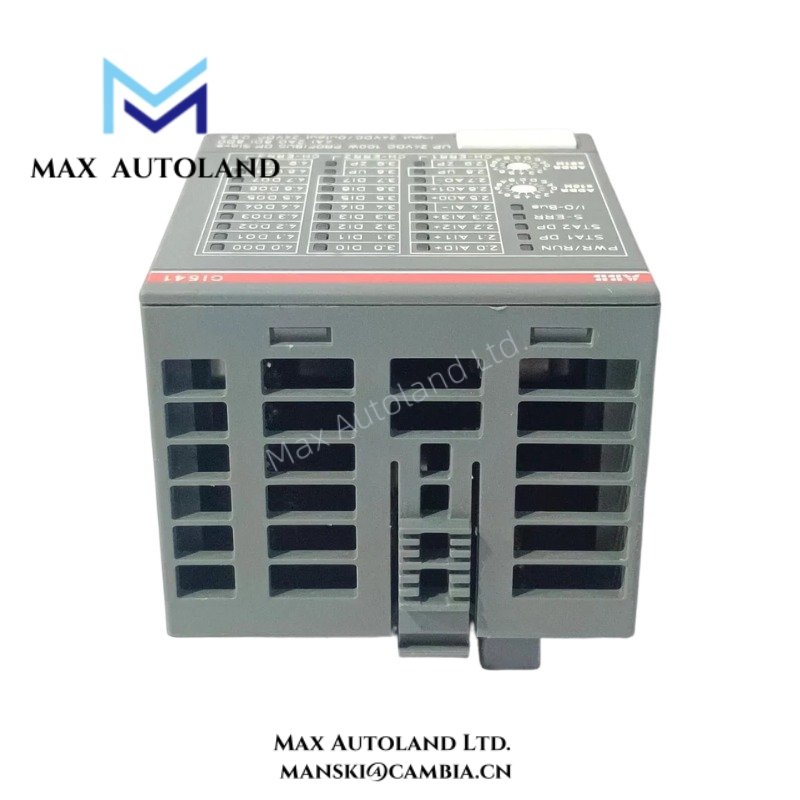

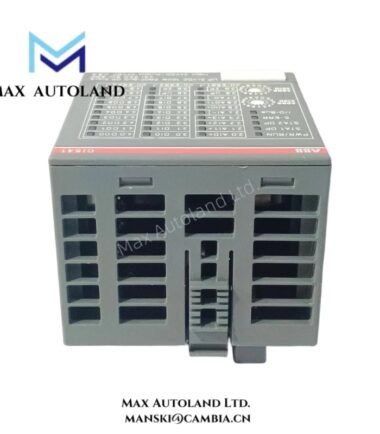

The ABB CI541-DP 1SAP224100R0001, also cataloged as the CI541-DP interface module, operates as a dedicated hardware component for Profibus DP cyclic data exchange within ABB Advant OCS and 800xA control systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | CI541-DP 1SAP224100R0001 |
| Brand | ABB |
| Origin | ABB |
| Weight | Refer to manufacturer documentation |
| Dimensions | Refer to manufacturer documentation |
| Operating Temp | Refer to manufacturer documentation |
| Power Consumption | Refer to manufacturer documentation |
| Product Type | Profibus DP Interface Module |
| Communication Protocol | Profibus DP |
| System Compatibility | ABB Advant OCS / ABB 800xA |
| Interface Function | Fieldbus communication gateway |
| Mounting Method | System module integration |
| Data Exchange Mode | Deterministic cyclic communication |
Backplane Communication and Firmware Compatibility
The CI541-DP exchanges process and diagnostic information through controller-associated communication infrastructure and Profibus DP network scheduling. Module operation depends on configured node addressing, communication cycle assignment, and controller parameter mapping.
Firmware flash compatibility must be verified between the installed module revision, controller firmware environment, and engineering configuration dataset. Incompatible revisions may affect module recognition, network startup behavior, or diagnostic synchronization during commissioning and maintenance procedures.
Frequently Asked Questions
Q: Does the CI541-DP support live insertion or hot-swap replacement?
A: Hot-swap capability depends on the hosting controller architecture and active communication state. Module replacement should follow ABB hardware handling and system shutdown procedures.
Q: Can firmware revision differences affect Profibus communication performance?
A: Yes. Firmware mismatches may influence initialization timing, slave parameter handling, diagnostic reporting, or controller hardware identification.
Q: Does the module require communication validation after installation?
A: Yes. After installation or replacement, verify network addressing, communication diagnostics, node visibility, and controller hardware configuration consistency.
Field Installation Guidelines
Disconnect system power and confirm controller safe state before module insertion or removal. Use ESD protection during handling, storage, and connector engagement.
Install the module only in the designated system position defined for the target ABB platform. Ensure complete connector seating without lateral mechanical stress on the backplane interface.
Separate Profibus communication cabling from high-current conductors, inverter output wiring, and switching power circuits. Maintain shield continuity and grounding practices consistent with industrial fieldbus installation requirements.
After commissioning, verify module status indication, controller diagnostics, and stable communication exchange across all configured Profibus DP nodes.
