Overview

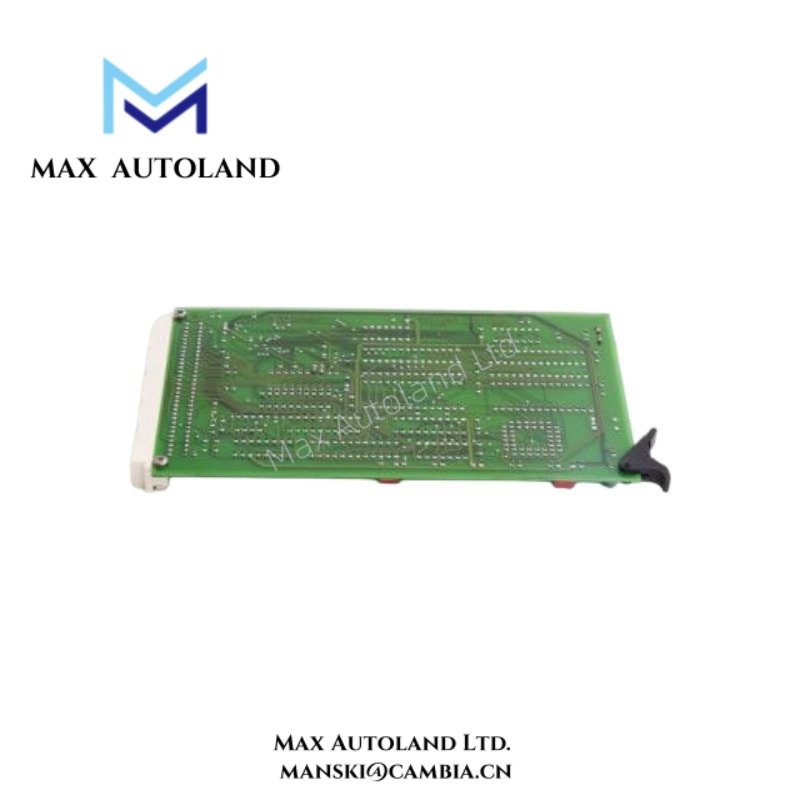

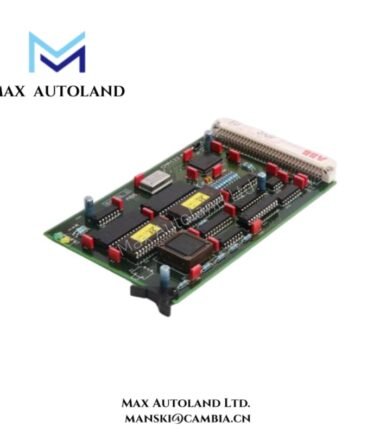

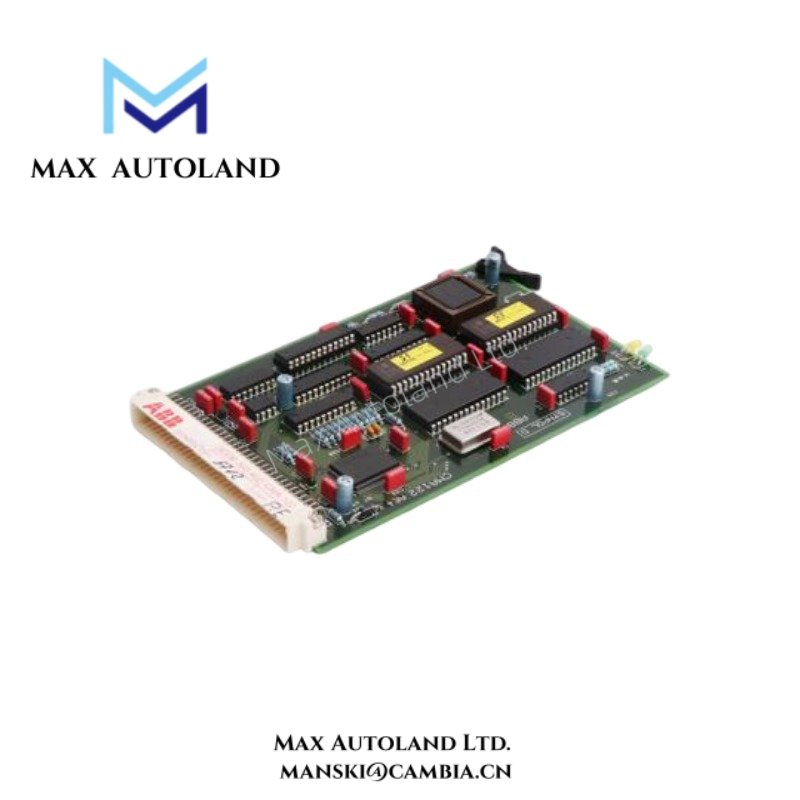

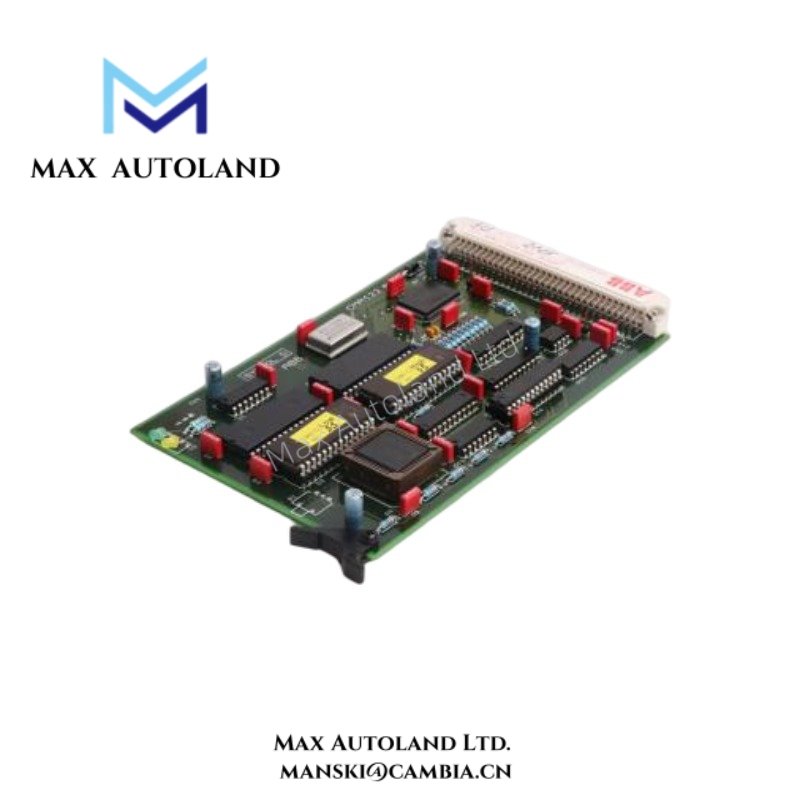

The ABB CMA122 3DDE300402 serves as the primary CMA122 CPU Card utilized to execute processor-level control logic and system data handling across ABB Synpol D platforms. The module manages internal program execution, backplane data exchange, and controller task coordination while maintaining communication with associated system cards installed in the same hardware assembly.
Suffix Breakdown & Model Matrix
The designation 3DDE300402 identifies a specific ABB CMA122 hardware version. Available documentation does not provide an official suffix interpretation or option matrix. Therefore, no further suffix breakdown is presented.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | CMA122 3DDE300402 |
| Brand | ABB |
| Product Type | CPU Card |
| Series | Synpol D |
| Function | Controller processing and system data management |
| System Compatibility | ABB Synpol D |
| Communication Method | Backplane bus communication |
| Processor Role | Control task execution and data coordination |
| Mounting Method | Rack-mounted card installation |
| Weight | Not specified in available documentation |
| Dimensions | Not specified in available documentation |
| Operating Temp | Not specified in available documentation |
| Power Consumption | Not specified in available documentation |
Backplane Bus Communication Architecture
The CMA122 exchanges cyclic control data through the Synpol D backplane infrastructure. First, the processor retrieves status information from installed I/O and interface cards. Next, it executes configured control functions and system calculations. It then transfers updated process data, command values, and diagnostic information back across the rack communication path. As a result, all connected modules operate within a synchronized controller scan environment. Engineering tools define hardware allocation, communication parameters, and execution resources during system configuration.
Frequently Asked Questions
Q: Does the CMA122 support hot replacement during operation?
A: Hot replacement capability depends on the Synpol D system architecture and plant maintenance procedures. Follow ABB service instructions before removing or inserting the CPU card.
Q: What should technicians verify after installing the CMA122?
A: Verify proper card seating, backplane connector engagement, controller diagnostics, hardware recognition, and communication status before commissioning.
Q: Is firmware compatibility important when replacing the CPU card?
A: Yes. Replacement hardware should match the firmware and system revision requirements defined for the installed Synpol D configuration.
Field Installation Guidelines
- Install the card only in the designated processor slot specified for the Synpol D system.
- Inspect backplane connectors before insertion and remove any contamination or foreign material.
- Secure the module completely within the card guides before applying system power.
- Separate communication wiring from high-current power conductors whenever possible.
- Maintain cabinet grounding continuity throughout the control assembly.
- Verify all adjacent modules remain fully seated after installation.
- Confirm controller startup status through system diagnostics and engineering software.
- During scheduled maintenance, inspect connectors, retaining hardware, and card guides for wear or mechanical damage.
