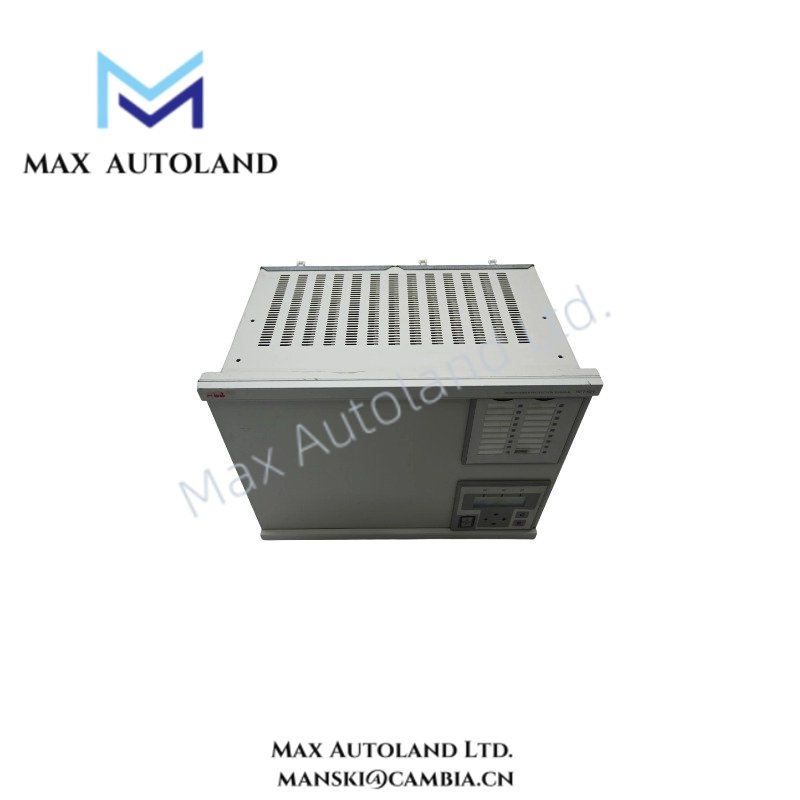

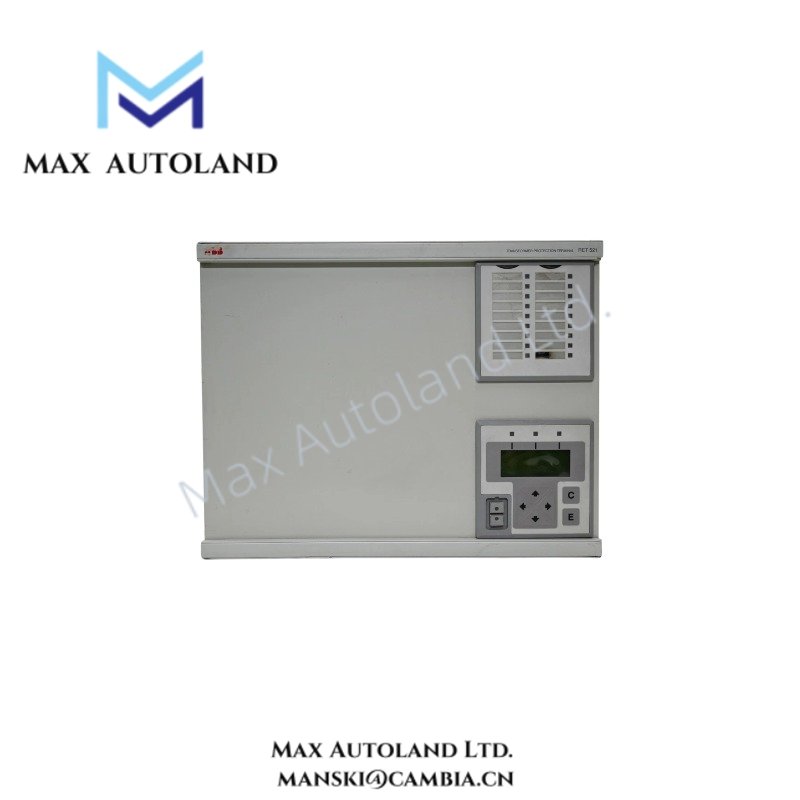

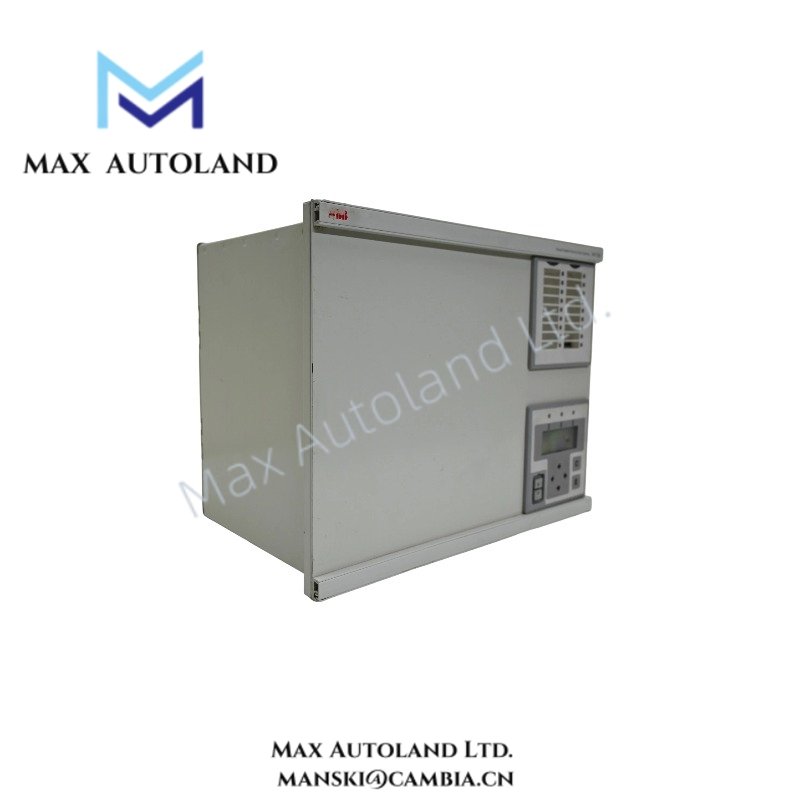

ABB RET521 Transformer Protection Terminal

Hardware Specifications

ABB Protection and Control Functions

The RET521 processes transformer current measurements for biased differential protection and applies harmonic restraint to distinguish internal faults from magnetizing conditions. It also provides restricted earth-fault protection for sensitive winding fault detection.

Furthermore, the terminal supports overcurrent and earth-fault protection functions. Thermal overload supervision monitors transformer loading conditions, while overexcitation protection addresses excessive voltage-to-frequency operating conditions.

The unit integrates protection, measurement, control, and supervision functions within a numerical relay architecture. Communication interfaces support connection with substation automation and SCADA/DCS systems, subject to the installed hardware and software configuration.

Frequently Asked Questions (FAQ)

Q: Does the RET521 support both two-winding and three-winding transformers?
A: Yes. The supplied specifications identify applications for both two-winding and three-winding transformer protection.

Q: What insulation tests are specified for the RET521?
A: The supplied data specifies a 2.0 kV AC dielectric test for 1 min and a 5 kV impulse test using a 1.2/50 us waveform.

Q: What auxiliary supply voltages are associated with the RET521?
A: The supplied information identifies 48-110 VDC and 110-220 VDC variants. The exact voltage depends on the ordered hardware configuration.

Field Installation Guidelines

• Install the terminal in a suitable protection or control panel with adequate mechanical support.
• Verify the auxiliary DC voltage against the exact relay hardware configuration before energization.
• Confirm current-transformer wiring, polarity, phase identification, and transformer ratio settings before commissioning.
• Keep CT wiring separated from high-energy switching conductors where practical.
• Route communication and low-level signal wiring separately from high-current power wiring to reduce electromagnetic interference.
• Connect cable shields according to the applicable substation grounding design and ABB installation documentation.
• Verify protective earth connections before applying auxiliary power.
• Confirm insulation and dielectric test requirements before field energization.
• Check terminal tightness and wiring identification against the approved protection schematic.
• Verify configured protection settings and trip logic through commissioning tests before placing the transformer into service.
