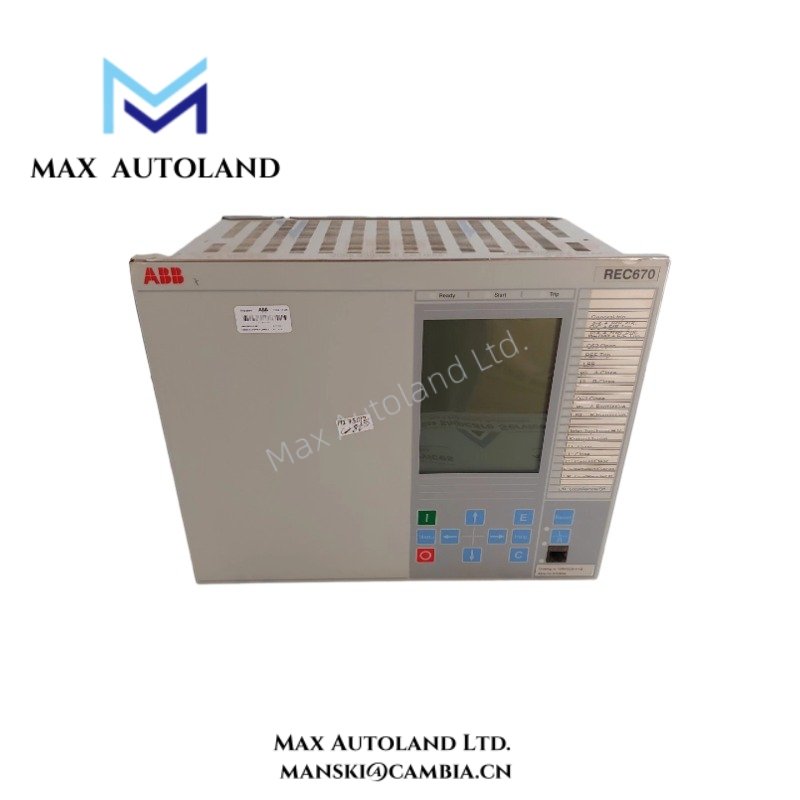

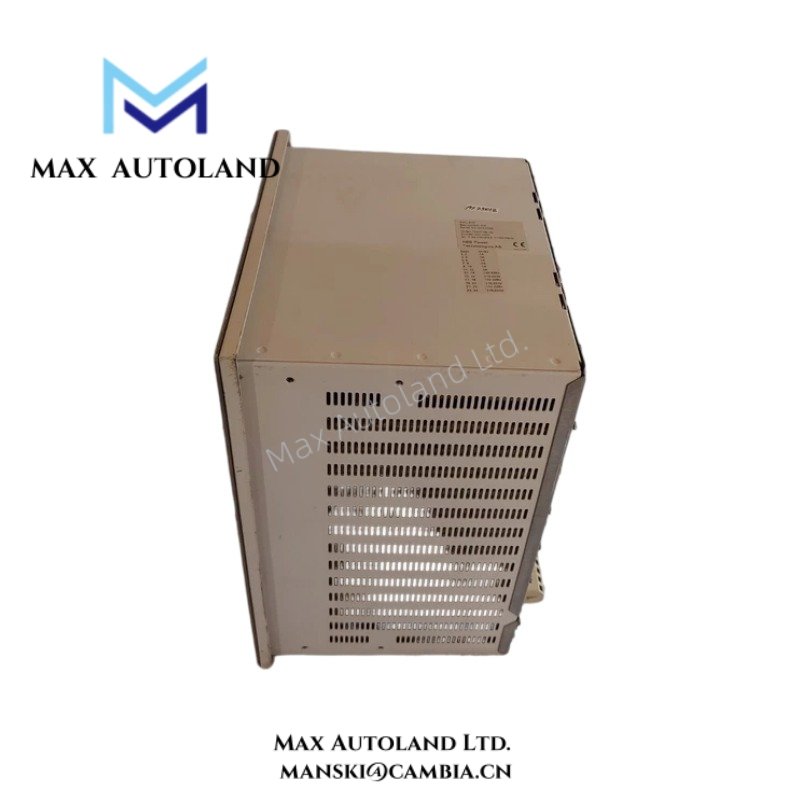

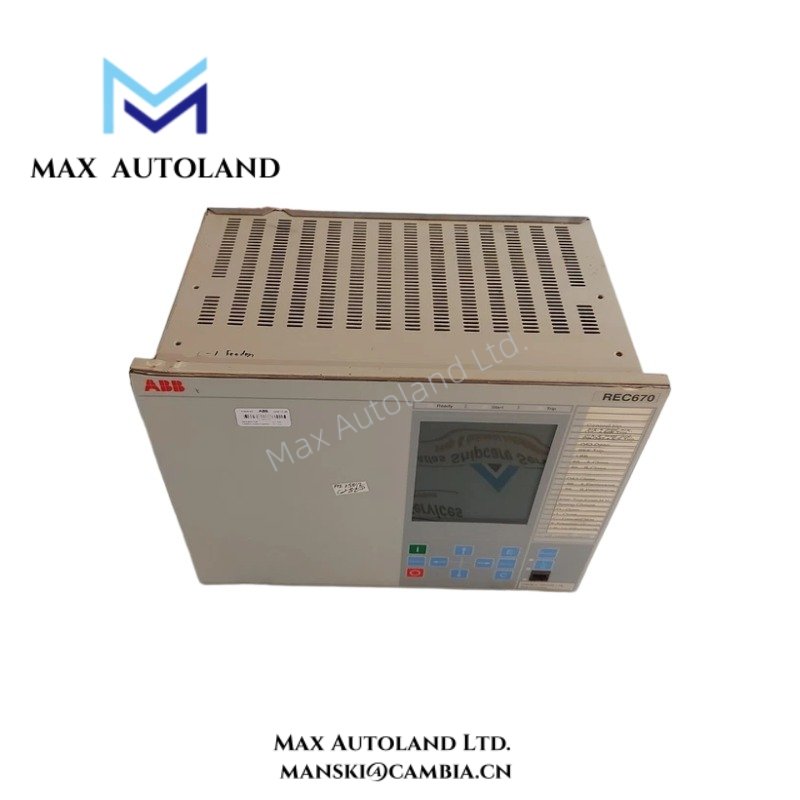

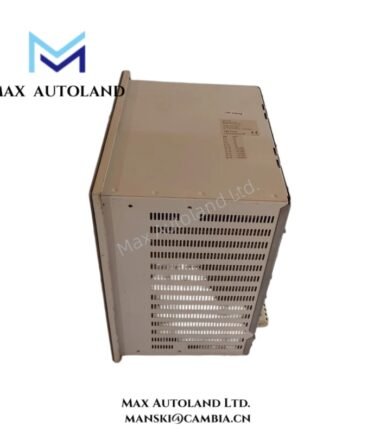

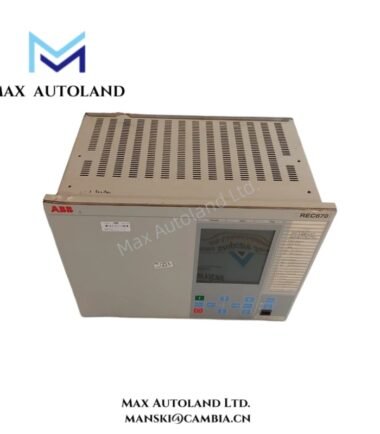

ABB Feeder Protection and Control REC670 1MRK002814-AB

Suffix Breakdown & Model Matrix

The designation 1MRK002814-AB identifies a configured REC670 product variant within the ABB Relion 670 series. The supplied documentation does not define a public suffix decomposition for this exact ordering code; therefore, no internal breakdown is stated here.

Specification

Firmware Flash Compatibility and Deterministic Network Execution

Within ABB Relion protection architectures, REC670 logic execution depends on deterministic communication behavior between protection functions, process interfaces, and supervisory systems. Consequently, firmware revision alignment affects configuration handling, parameter mapping, and event interpretation. The installed firmware package must match the approved engineering dataset and communication definition set.

In addition, deterministic network behavior influences time synchronization, disturbance record consistency, and inter-device message handling. When engineers modify firmware levels, they must validate configuration portability, communication interoperability, and logic response under the target system environment.

Frequently Asked Questions

Q: Does REC670 support unrestricted hot-swap replacement during energized operation?
A: Hardware replacement practice depends on cabinet design, energized system condition, and maintenance procedures. ABB commissioning and service instructions should govern any module exchange activity.

Q: Can communication conductors share the same routing path with CT and auxiliary power wiring?
A: Segregated routing practices reduce coupled noise and unintended signal interaction. Engineers typically separate communication cables, CT secondary wiring, auxiliary supplies, and switching load conductors.

Q: Does firmware revision influence configuration transfer behavior?
A: Yes. Firmware level affects parameter interpretation, configuration import handling, communication definitions, and compatibility with associated protection engineering files.

Field Installation Guidelines

Verify terminal assignments, CT polarity orientation, binary I/O mapping, and protection logic correspondence before energizing the installation.

Next, maintain controlled cable separation between measurement circuits, communication media, auxiliary power conductors, and high-current switching paths. This approach reduces induced interference and preserves signal integrity across protection channels.

Apply cable shield grounding according to the approved substation grounding philosophy. In parallel, avoid uncontrolled multi-point shield terminations between interconnected panels.

After physical installation, execute protection logic validation, communication diagnostics, time synchronization checks, and secondary injection testing to confirm measurement acquisition, event handling, and trip path operation.
