Overview

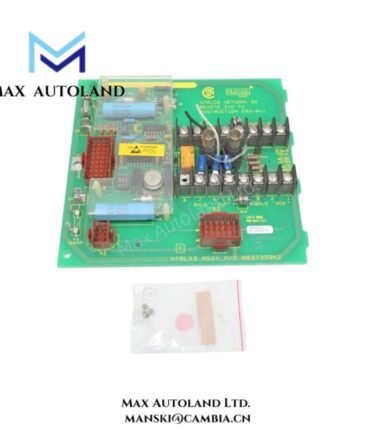

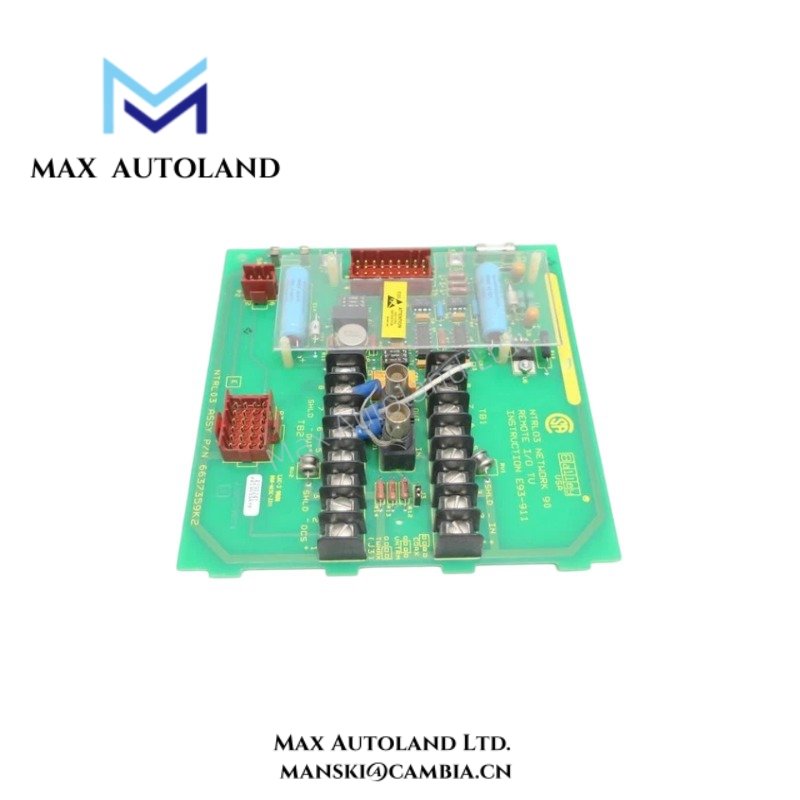

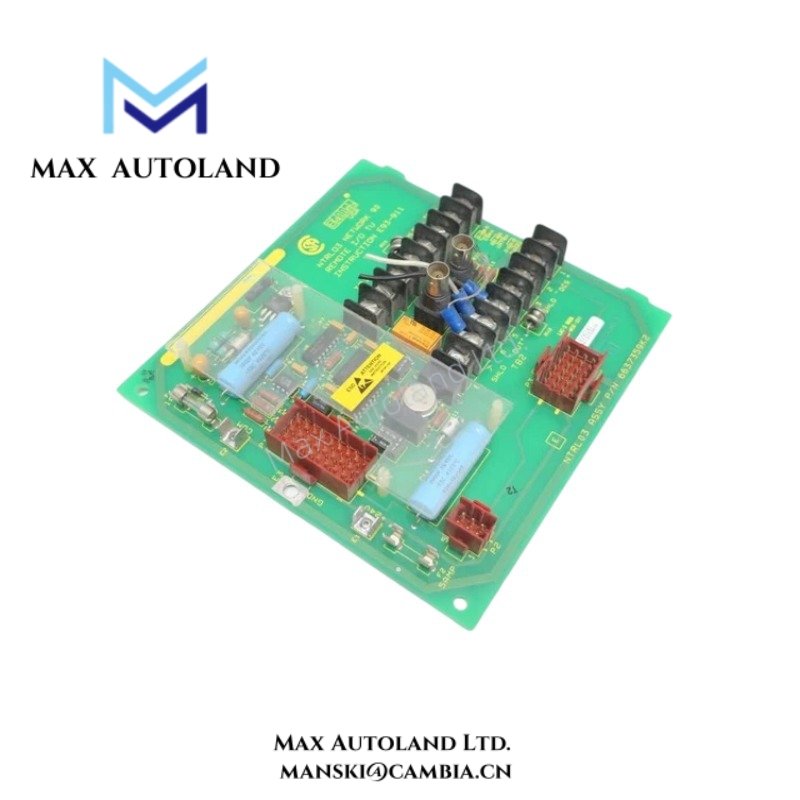

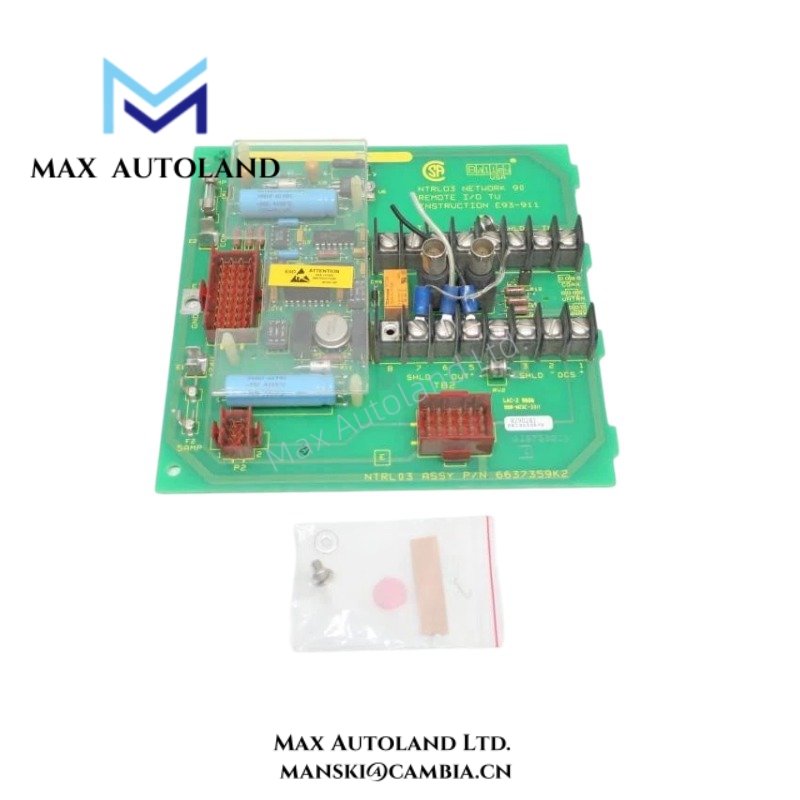

Configured for system-level signal termination and redundant network interface coordination in ABB Bailey INFI 90 distributed control architecture, the ABB NTRL03 (NTRL03 Node Termination Module) provides direct backplane-linked electrical termination and communication boundary control for controller-to-node interface segments.
Suffix Breakdown & Model Matrix
The model designation NTRL03 is a fixed ABB internal ordering identifier within the INFI 90 termination module family. No additional functional suffix segmentation is defined in the available manufacturer documentation. The functional behavior is determined by system configuration rather than external option coding.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | NTRL03 |
| Brand | ABB |
| Origin | Switzerland / USA (ABB Bailey INFI 90 system production) |
| Weight | Not specified (system-level termination hardware) |
| Dimensions | Not specified (rack-mounted module form factor) |
| Operating Temp | 0 to 60 deg C (typical INFI 90 cabinet environment) |
| Power Consumption | Backplane powered, low-level logic load (exact value not specified) |
| Function Type | Node termination / network interface termination |
| System Compatibility | ABB Bailey INFI 90 control system |
INFI 90 Backplane Termination Behavior
The NTRL03 operates as a termination interface element within the INFI 90 node architecture. It defines electrical boundaries for communication lines between control modules and system backplane segments. Moreover, it maintains signal impedance matching to stabilize digital communication across distributed module racks.
In addition, backplane communication integrity depends on controlled impedance routing and strict termination consistency. Therefore, the module enables deterministic signal propagation within the rack-level architecture. As a result, it supports stable logical referencing between redundant or adjacent node assemblies.
Frequently Asked Questions (FAQ)
Q: Does the NTRL03 support hot-swap replacement in an active INFI 90 rack?
A: The module does not support live insertion in typical configurations. Consequently, technicians must perform a controlled system shutdown or isolate the rack before replacement to prevent backplane disturbance.
Q: How does the NTRL03 interact with redundant controller configurations?
A: It provides fixed termination reference points for node-level communication paths. Meanwhile, redundancy switching occurs at the controller and system bus level rather than within the module itself.
Q: Does the module contribute measurable backplane current load?
A: It introduces a minimal logic-level load through backplane interface coupling. However, the exact current consumption depends on the overall system configuration and is not individually specified.
Field Installation Guidelines
Install the module in a grounded INFI 90 rack assembly while ensuring verified backplane alignment. First, confirm that all connector pins are clean and free of oxidation before insertion. Then maintain correct module slot assignment according to system configuration documentation.
Additionally, keep shielded backplane wiring continuous and properly bonded to a single cabinet ground reference point. Avoid mechanical stress on adjacent modules during insertion or removal. Finally, ensure sufficient airflow clearance within the rack to maintain thermal stability of surrounding control electronics.
