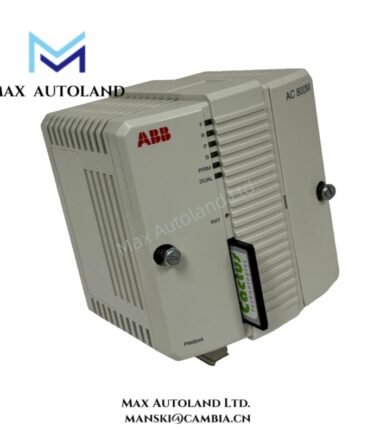

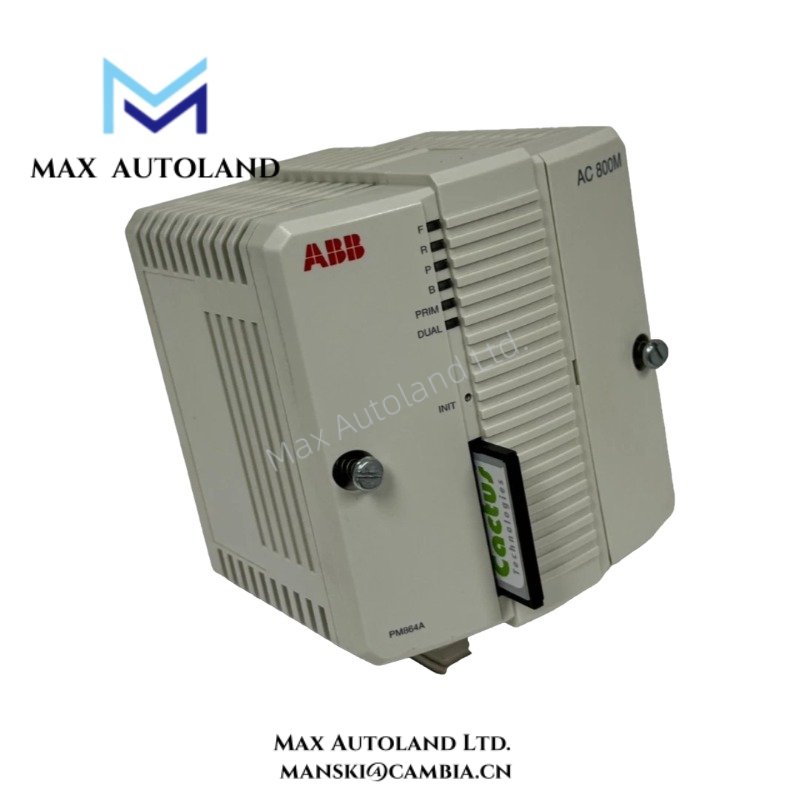

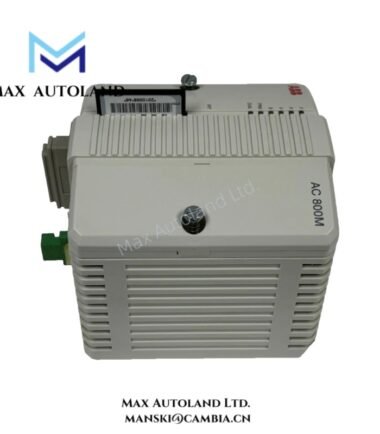

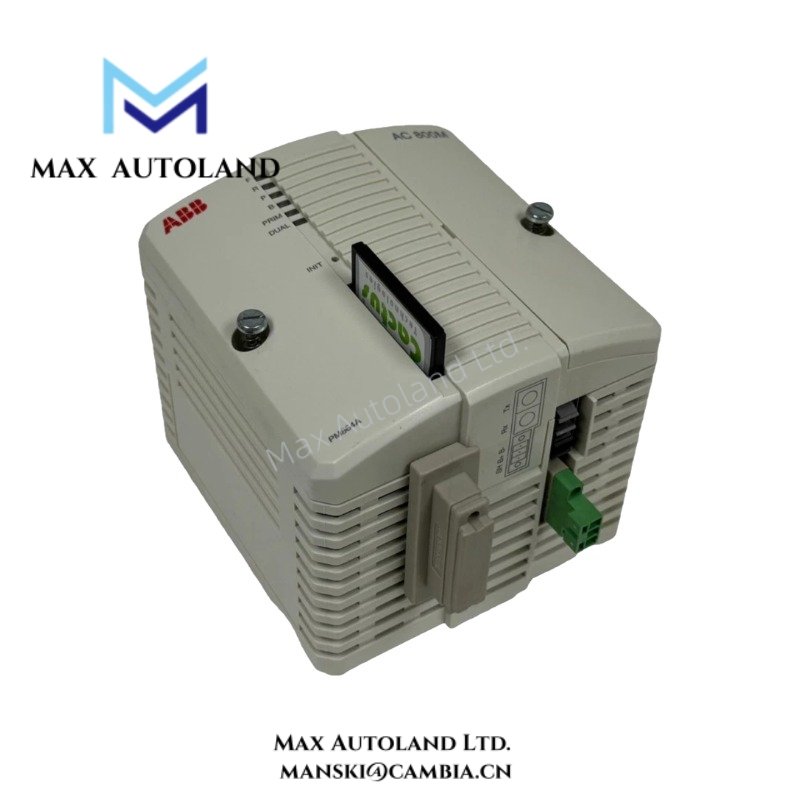

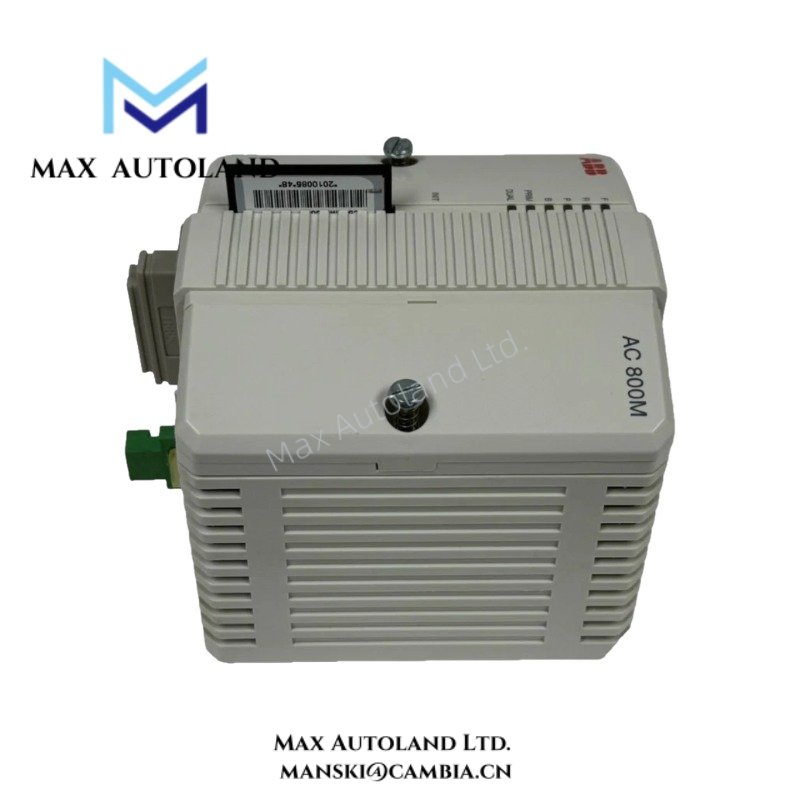

ABB Advant OCS/800xA PM864A 3BSE018162R1 Processor Unit

Specification

Firmware Flash Compatibility and Backplane Communication

The PM864A exchanges execution data, controller diagnostics, and I/O updates through the AC 800M internal backplane structure. As a result, deterministic controller behavior depends on synchronized communication between processor resources, memory services, communication interfaces, and connected I/O assemblies.

At the same time, firmware flash compatibility must align with the installed Control Builder release and 800xA system revision. Mixed firmware environments can introduce controller startup restrictions, hardware identification conflicts, or application loading limitations during commissioning and maintenance activities.

Therefore, engineers should validate firmware level, engineering software compatibility, and hardware revision alignment before deployment, migration, or controller replacement.

Frequently Asked Questions

Q: Does the PM864A support redundant controller operation?

A: The processor unit operates within AC 800M controller architectures that can support redundancy arrangements. Actual redundancy behavior depends on the configured controller structure, firmware revision, and engineering implementation.

Q: Can operators replace the PM864A during energized system conditions?

A: Replacement procedures depend on maintenance strategy, controller state, and installed redundancy configuration. Unplanned removal can interrupt controller execution, communication status, or I/O synchronization.

Q: Are firmware revisions interchangeable across all AC 800M processor units?

A: No. ABB defines firmware compatibility according to processor generation, engineering environment revision, and supported platform release.

Field Installation Guidelines

Before installation, verify processor keying, base compatibility, and approved firmware alignment with the target AC 800M controller revision.

Use ESD protection procedures during transport, unpacking, and insertion. In addition, confirm cabinet grounding integrity and protective bonding continuity before applying power.

Maintain physical separation between Ethernet, serial communication, and power conductors. This routing method reduces electromagnetic coupling into controller communication paths and internal signal structures.

After installation, verify status indicators, controller initialization behavior, communication establishment, application loading status, and I/O synchronization before returning the controller to operational service.
