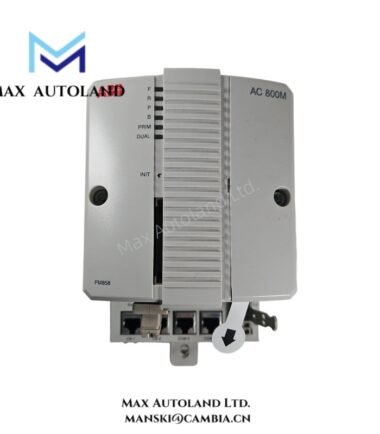

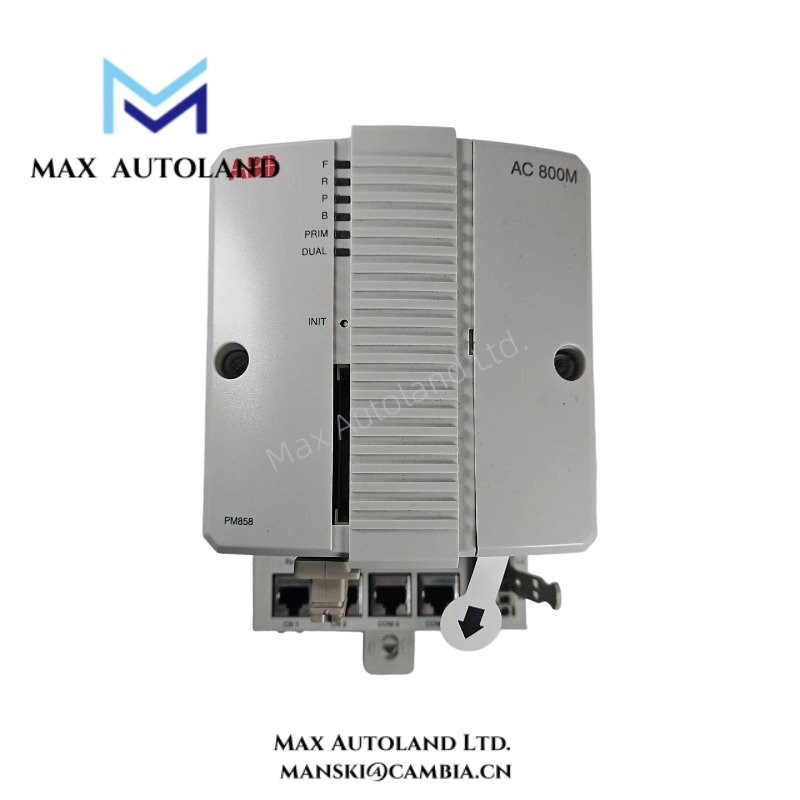

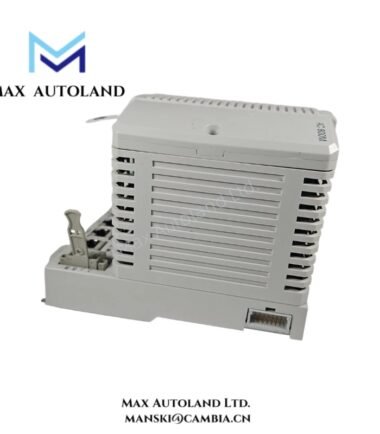

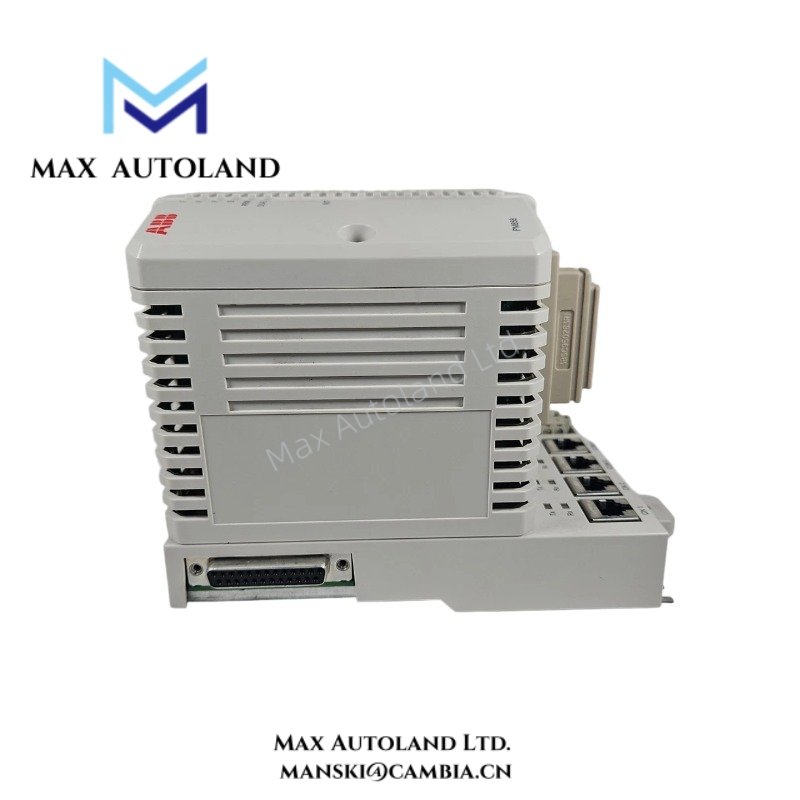

ABB Advant OCS/800xA PM858 Processor Unit

Specification

Backplane Bus Communication and Firmware Flash Compatibility

The PM858 processor unit exchanges execution data, controller status information, and I/O updates through the AC 800M internal backplane structure. During operation, the processor, communication interfaces, and connected subsystem modules maintain synchronized data handling to support deterministic controller execution.

In parallel, firmware flash compatibility must remain consistent with the installed ABB engineering environment, including Control Builder release level and associated 800xA system revision. If users combine unsupported firmware and software combinations, controller startup restrictions, module recognition faults, or application deployment limitations can occur during commissioning and maintenance procedures.

Frequently Asked Questions

Q: Does the PM858 support redundant controller architectures?

A: The PM858 operates within AC 800M controller systems that can support redundancy configurations. Actual redundancy behavior depends on controller design, firmware version, and engineering configuration.

Q: Can technicians replace the PM858 while the controller remains energized?

A: Replacement practice depends on the installed controller arrangement and maintenance strategy. Before performing energized replacement, personnel should evaluate controller state, communication dependency, and redundancy status to avoid execution interruption.

Q: Are firmware revisions interchangeable between all AC 800M processor units?

A: No. Users must validate firmware compatibility against the installed hardware revision, engineering software release, and supported ABB platform environment.

Field Installation Guidelines

Before installation, verify module keying, controller base compatibility, and firmware alignment with the target AC 800M system revision.

Apply ESD handling procedures during unpacking, transport, and insertion activities. In addition, confirm cabinet grounding integrity and controller rack bonding continuity before energizing the system.

Maintain physical separation between Ethernet, serial communication, and power wiring to reduce electromagnetic coupling into controller communication paths.

After installation, inspect controller status indicators, verify application loading condition, confirm communication establishment, and review I/O synchronization behavior before returning the controller to service.
