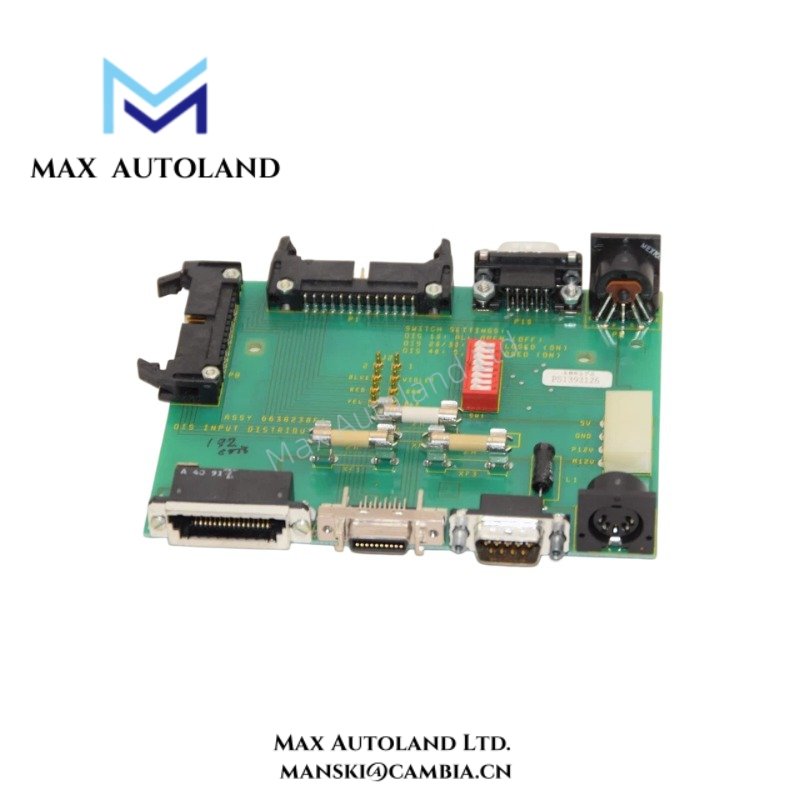

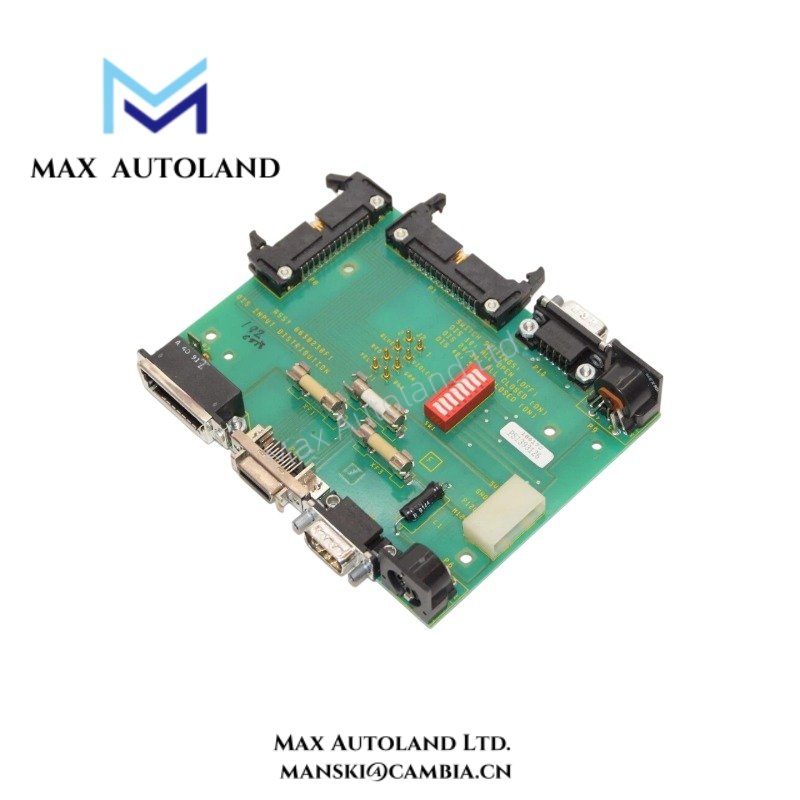

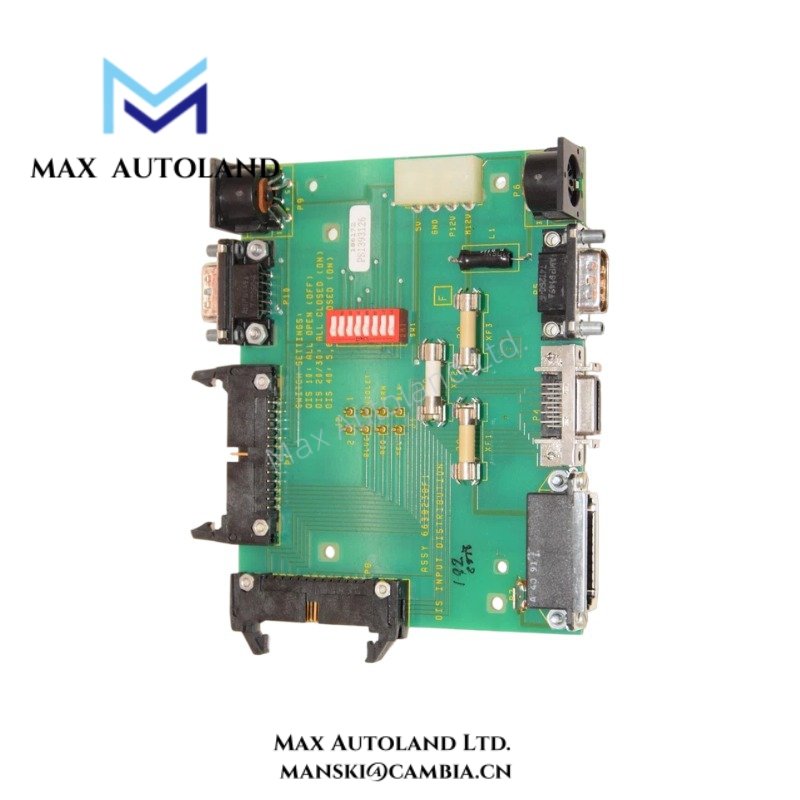

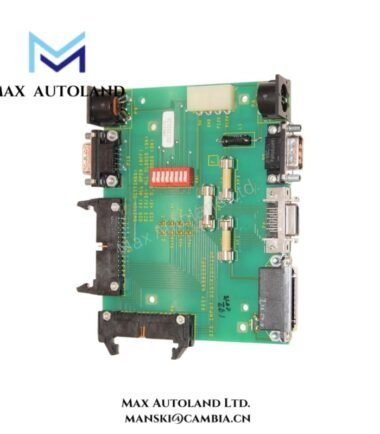

ABB Advant OCS/800xA 6638238F1 Communication Modules

Overview

Configured for communication data exchange in Advant OCS and 800xA control environments, the ABB 6638238F1 (6638238F1 Communication Interface Module) provides direct physical and logical transfer of process information between system components. The module operates within the ABB control architecture and participates in backplane-based communication paths used for controller and subsystem integration.

Suffix Breakdown & Model Matrix

The supplied documentation identifies a single catalog model, 6638238F1. No official suffix matrix or variant breakdown is specified in the referenced material.

Hardware Specifications

Firmware Flash Compatibility

The module exchanges operational data through the system backplane under controller-managed communication scheduling. Firmware execution remains coordinated by the host automation platform rather than by independent module-level application processing.

Compatibility depends on the controller firmware revision and configured system software environment. During replacement activities, matching hardware revisions and approved firmware releases should be verified to maintain communication integrity across the automation network.

Frequently Asked Questions

Q: Does the 6638238F1 support hot-swap replacement?
A: Hot-swap capability depends on the specific controller rack and system configuration. Follow the platform maintenance procedure before removing or inserting the module.

Q: How does the module communicate with the controller?
A: The module transfers information through the ABB system backplane, allowing data exchange with controller and associated system resources.

Q: Is firmware loaded directly into the module during operation?
A: System firmware management is normally handled through the host control environment. Compatibility should be verified against the installed software release before commissioning.

Field Installation Guidelines

• Install the module only in the designated rack slot defined by the system configuration.
• De-energize equipment when required by plant maintenance procedures.
• Verify connector engagement and module retention hardware before energizing the rack.
• Route communication and power wiring separately to reduce electrical interference.
• Maintain cabinet grounding continuity according to ABB installation practices.
• Confirm controller recognition and communication status after installation.
