Overview

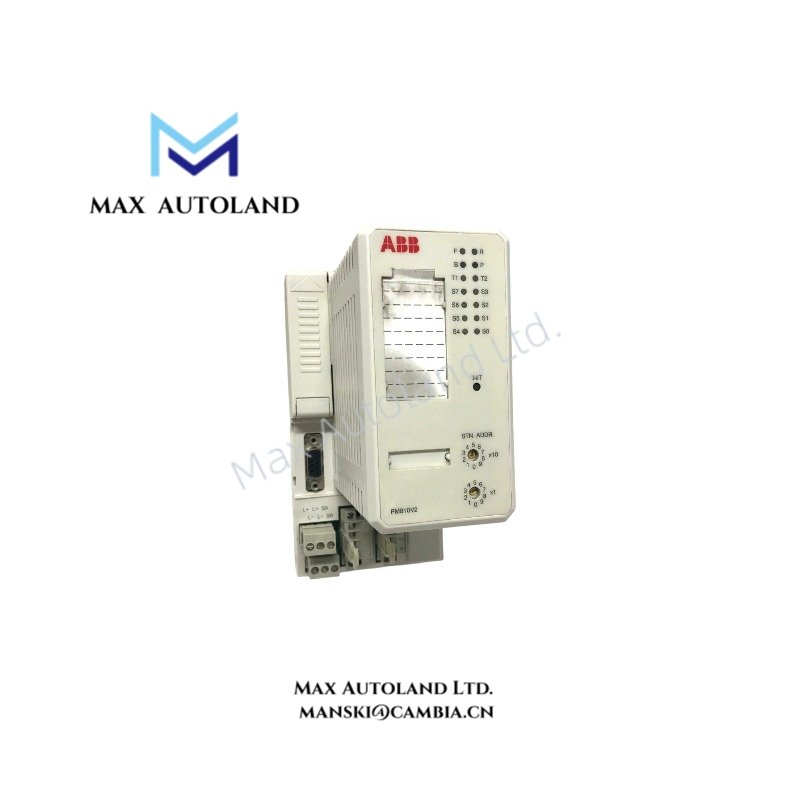

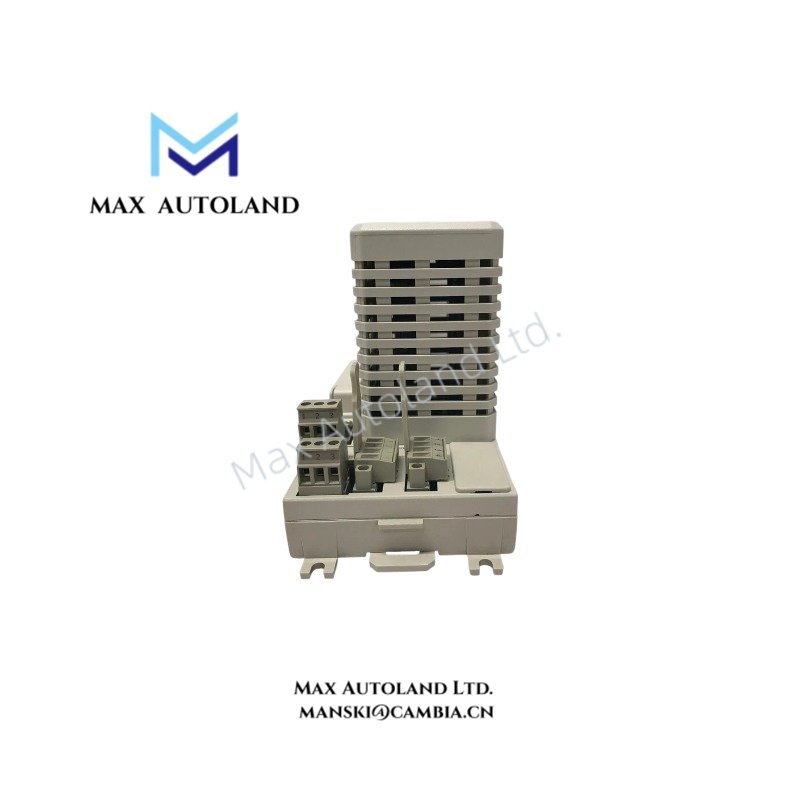

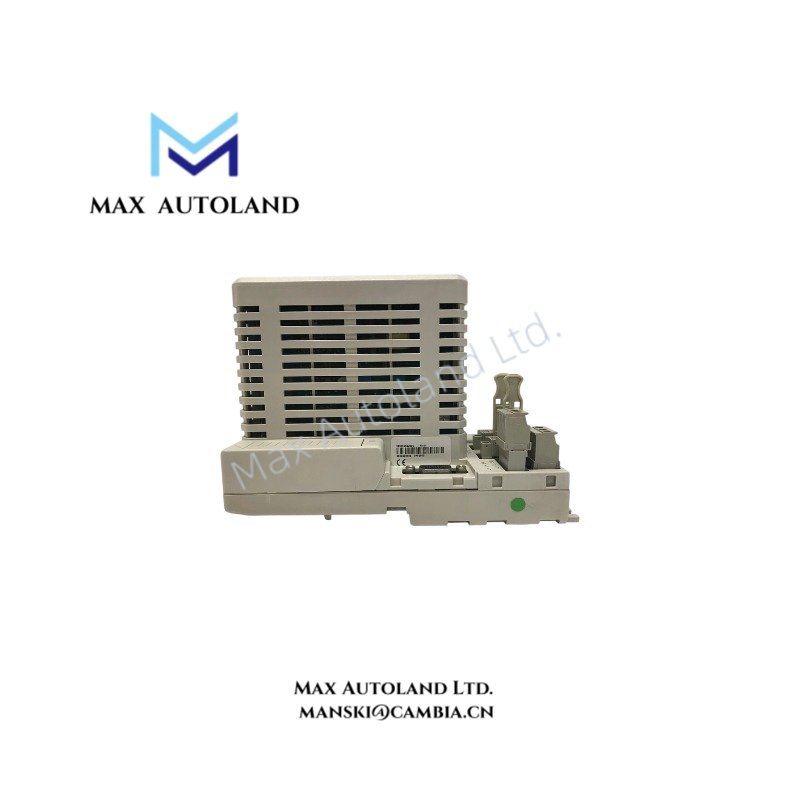

The ABB PM810V2 (3BSE009895R2), also cataloged as the PM810V2 Processor Module, operates as a dedicated hardware component for control logic execution, I/O communication management, and data processing within ABB Advant OCS AC 410 and AC 450 control system platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | PM810V2 |
| Brand | ABB |
| Product ID | 3BSE009895R2 |
| Product Type | Processor Module / CPU |
| System Compatibility | ABB Advant OCS, AC 410, AC 450 |
| Processor Type | 32-bit Motorola 68040 processor or equivalent specialized processor |
| Memory Capacity | Onboard RAM and Flash memory for firmware and application storage |
| Redundancy Support | Supports dual-CPU redundant configurations |
| Communication Interfaces | Backplane connection for local I/O bus, MasterFieldbus, and AF100 network sub-modules |
| Dimensions | Approx. 25 mm width, 280 mm height, 220 mm depth |
| Weight | Approx. 0.6 kg |
| Operating Temp | 0 deg C to +55 deg C |
| Storage Temp | -40 deg C to +70 deg C |
| Relative Humidity | 5% to 95%, non-condensing |
| Protection Rating | IP20 |
| Power Consumption | Supplied through AC 400 series subrack backplane, typically +5 VDC |
Industrial Control Backplane Communication and Firmware Compatibility
The PM810V2 processor module operates through the Advant Controller backplane architecture, exchanging process data between CPU resources, I/O modules, and communication interface sub-modules. The processor manages cyclic control execution, application program handling, and system diagnostics.
The module supports firmware flash storage compatibility for system software and user application data. During system configuration, firmware revision compatibility must be verified between the PM810V2 processor, connected I/O modules, and Advant OCS engineering environment.
Backplane bus communication velocity and I/O density scaling are determined by the installed Advant Controller hardware configuration. The PM810V2 maintains deterministic execution behavior required for fixed scan-cycle control applications.
Frequently Asked Questions
Q: Does the PM810V2 support redundant CPU operation?
A: Yes. The PM810V2 supports dual-CPU redundant configurations. Redundant operation requires compatible system hardware, configuration settings, and communication modules.
Q: Can the PM810V2 be replaced during system operation?
A: Replacement procedures depend on the installed AC 410 or AC 450 configuration. Hot replacement is only applicable when the complete system architecture supports redundant operation and approved maintenance procedures.
Q: How is the PM810V2 connected to field I/O and communication networks?
A: The processor communicates through the Advant Controller backplane and interfaces with local I/O, MasterFieldbus, and AF100 network sub-modules through the configured system rack.
Field Installation Guidelines
- Install the PM810V2 only in the designated ABB Advant Controller subrack slot position.
- Verify backplane connector alignment before insertion to prevent mechanical damage to the module connector.
- Confirm power isolation procedures before removing or installing the processor module in non-redundant configurations.
- Maintain proper cabinet grounding and ensure cable shielding is connected according to the system installation specification.
- Separate communication wiring from high-voltage power cables to reduce electromagnetic interference.
- Check processor status LEDs after installation to verify operating state, fault indication, and communication activity.
- Confirm firmware compatibility before loading application software or replacing processor hardware.
