Overview

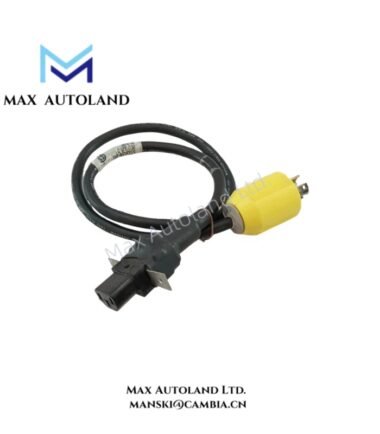

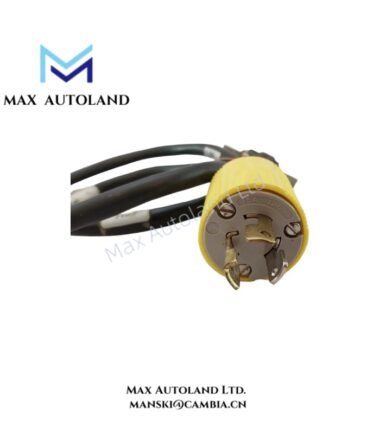

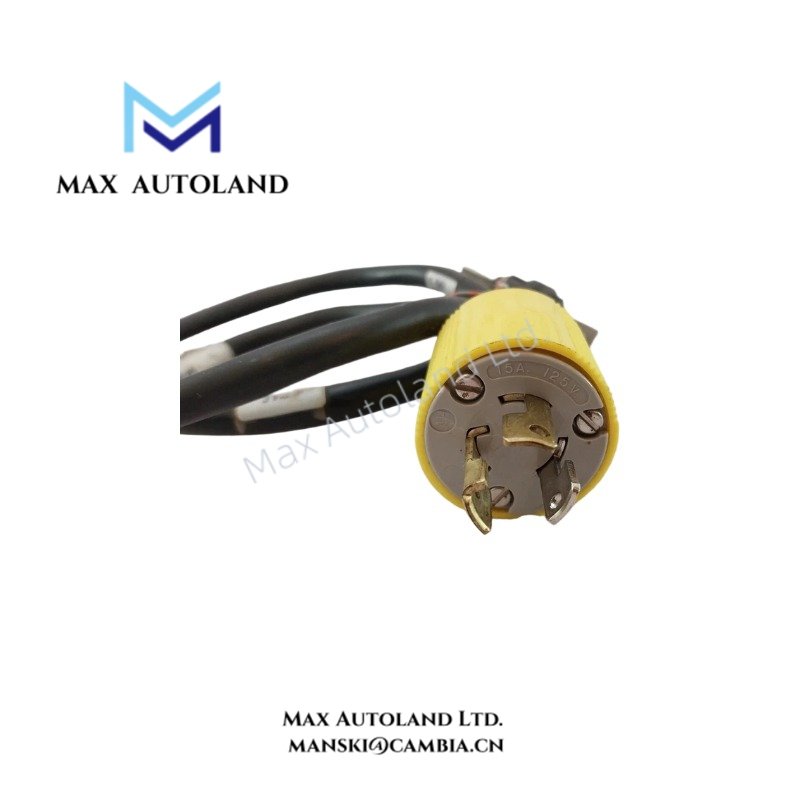

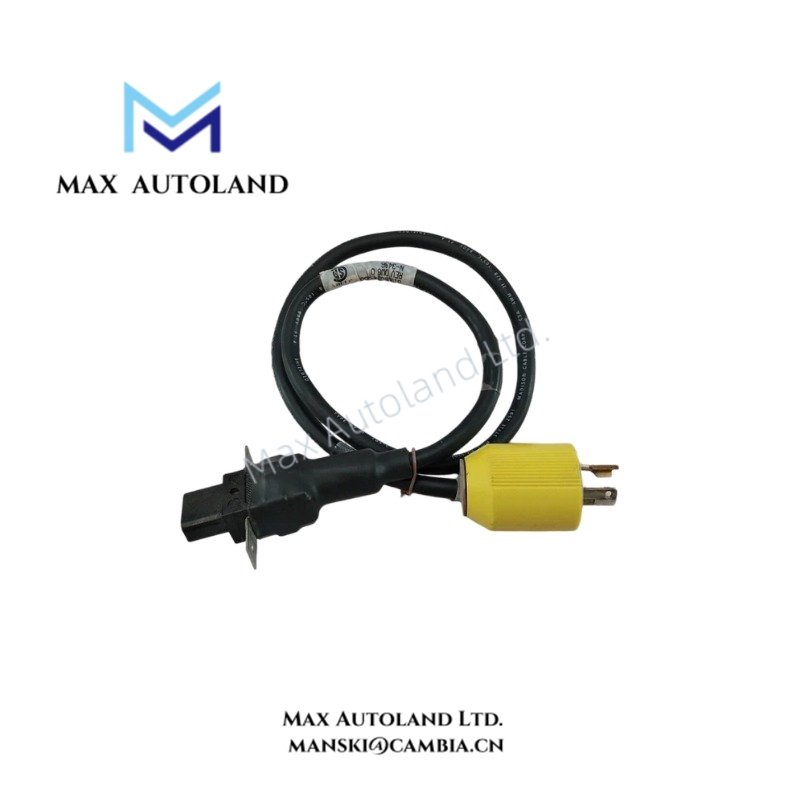

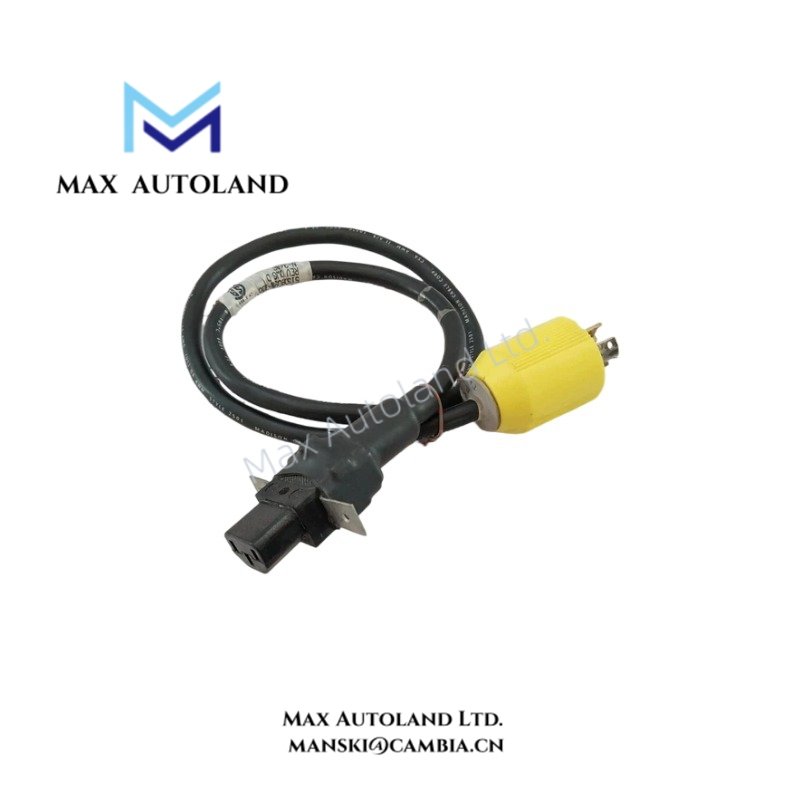

Configured for power distribution and electrical circuit routing in TDC 3000 Distributed Control System platforms, the Honeywell 51308093-300 (51308093-300 AC power entry panel cable/cord) actively provides direct physical and electrical execution. Engineers utilize this hardware component to handle standard industrial power input requirements while ensuring stable electrical continuity for system panels and associated control cabinets.
Suffix Breakdown & Model Matrix
| Suffix / Model Identifier | Technical Definition & Scope |
|---|---|
| 51308093-300 | Base standard hardware part designating the Honeywell AC power entry panel cable/cord assembly configured for TDC 3000 environments. |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 51308093-300 |
| Brand | Honeywell |
| Origin | Standard Industrial Manufacturing |
| Weight | Approx. 0.45 kg (Estimated standard harness weight) |
| Dimensions | Standard enclosure panel cut-out / wiring length configuration |
| Operating Temp | Up to 105 deg C |
| Power Consumption | Passive cabling component (Rated for 120V / 250V AC, 10A / 15A) |
| Wire Gauge | 16 AWG |
| Insulation Rating | UL or AWM Style 2501 (600V rated insulation) |
| Certifications | CSA AWM II A/B |
Signal Integrity and Channel Isolation
Operating within complex process control architectures requires stringent electrical isolation and noise suppression. Specifically, the internal copper conductor configuration within the 16 AWG cable profile mitigates electromagnetic interference (EMI) across adjacent cabinet power lines. Furthermore, technicians maintain channel-to-channel isolation and grounding integrity through robust UL-compliant insulation layers, thereby preventing voltage spikes from propagating into sensitive low-voltage analog or digital control loops.
Frequently Asked Questions
Q: What is the maximum voltage rating supported by the 51308093-300 cable assembly?
A: The cable supports an operational voltage rating of 120V / 250V AC with a current handling capacity of 10A / 15A.
Q: Can technicians expose this cable to elevated cabinet temperatures?
A: Yes, because the component features a maximum temperature rating of up to 105 deg C, utilizing UL or AWM Style 2501 insulation rated up to 600V.
Field Installation Guidelines
- First, ensure that all upstream power sources are fully de-energized and locked out prior to handling or terminating the power entry panel cable.
- Second, route the 16 AWG conductor away from high-frequency switching lines to minimize potential induced noise on adjacent control loops.
- Third, verify that terminal screw torques and connector engagements meet standard industrial enclosure specifications to prevent intermittent electrical contact.
- Finally, confirm that cabinet grounding paths are securely fastened to maintain continuous shielding and protective earth continuity.
