Overview
Specification
| Parameter | Specification |
|---|---|
| Model Number | 1VCR017053G0006 |

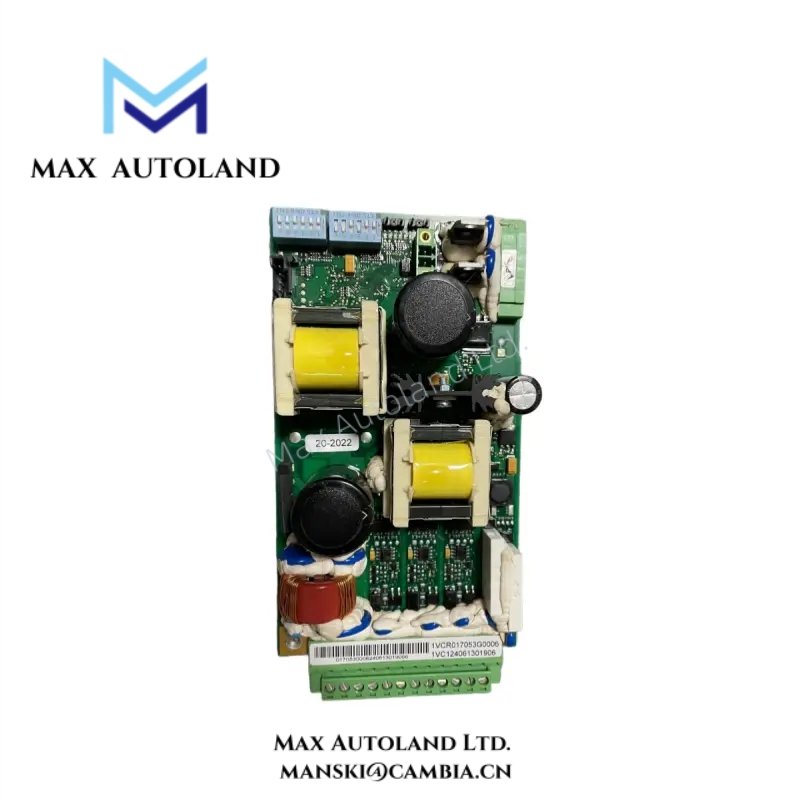

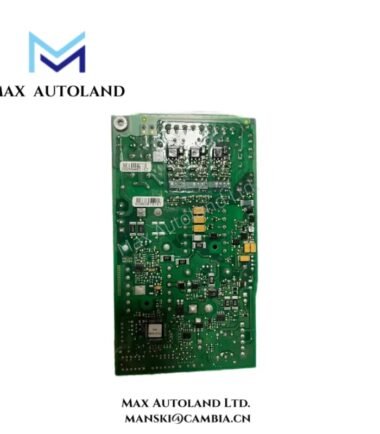

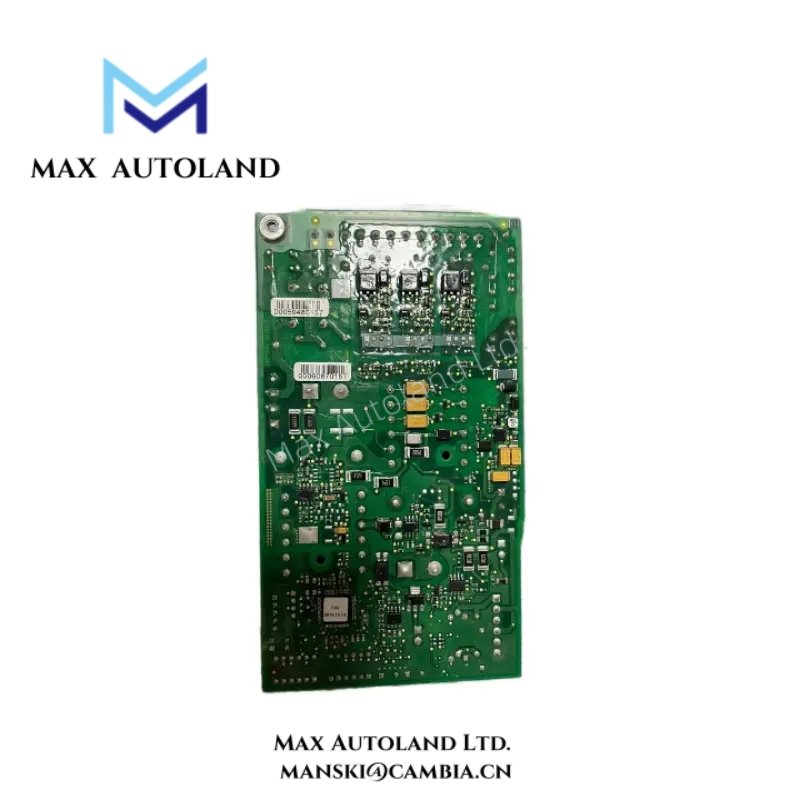

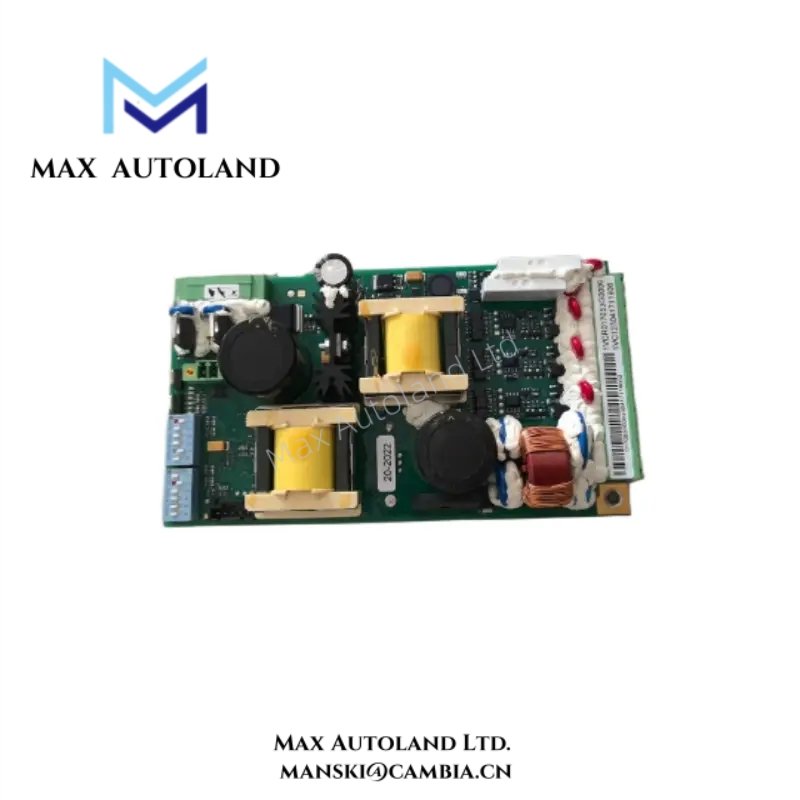

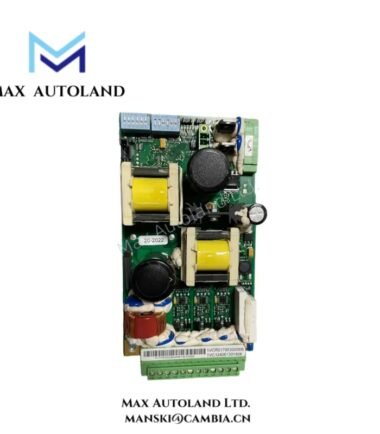

| Product Type | Industrial Power Supply Board |
| Input Voltage Range | 100–240 V AC, 50/60 Hz |
| Input Current | 1.5 A (max) |
| Input Protection | Fuse, Overvoltage Protection |
| Output Voltage | 24 V DC |
| Output Current | 5 A (continuous) |
| Output Power | 120 W |
| Voltage Regulation | ±1% |
| Efficiency | ≥90% |
| Ripple & Noise | <50 mV p-p |
| Startup Time | <1 s |
| Hold-up Time | ≥20 ms |
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Operating Humidity | 10–95% RH, non-condensing |
| Storage Humidity | 5–95% RH, non-condensing |
| Shock Resistance | 10 g, 11 ms, half sine |
| Vibration Resistance | 2–9 Hz: ±3.5 mm, 9–150 Hz: 0.5 g |
| Safety Standards | IEC 60950-1, UL 60950-1 certified |
| Protection Features | Overcurrent, Short Circuit, Overvoltage |
| Mounting Options | DIN rail / Panel mount |
| Dimensions (L x W x H) | 150 mm x 90 mm x 35 mm |
| Weight | 0.45 kg |
| Cooling | Convection cooled, no fan |
| Compliance | RoHS, CE certified |
| Indicators | Power OK LED |
FAQ
A1: The 1VCR017053G0006 is compatible with ABB automation systems, including PLCs and I/O modules.
Q2: Does it support protection against electrical faults?
A2: Yes, it features overcurrent, short-circuit, and overvoltage protection for safe operation.
Q3: Can it operate in harsh industrial environments?
A3: Absolutely. The board supports temperatures from -20°C to +70°C and is designed for durable performance.
Q4: How easy is it to install?
A4: Installation is straightforward with DIN rail or panel mounting, ensuring rapid integration into existing systems.
