Overview

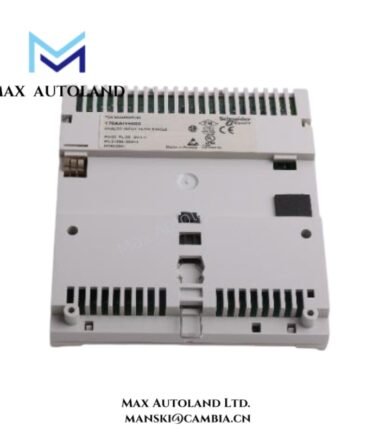

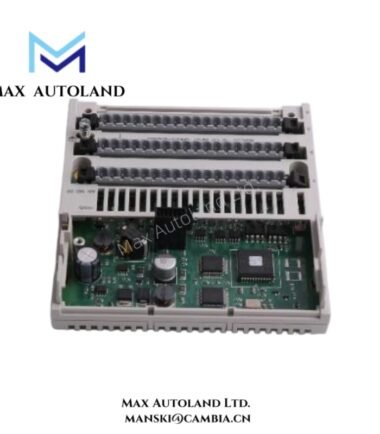

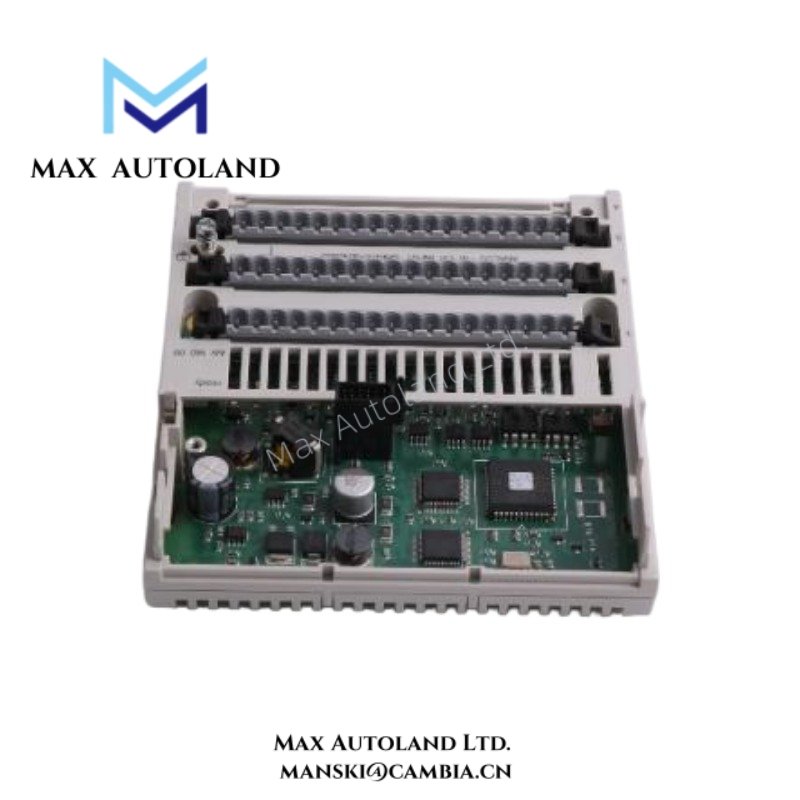

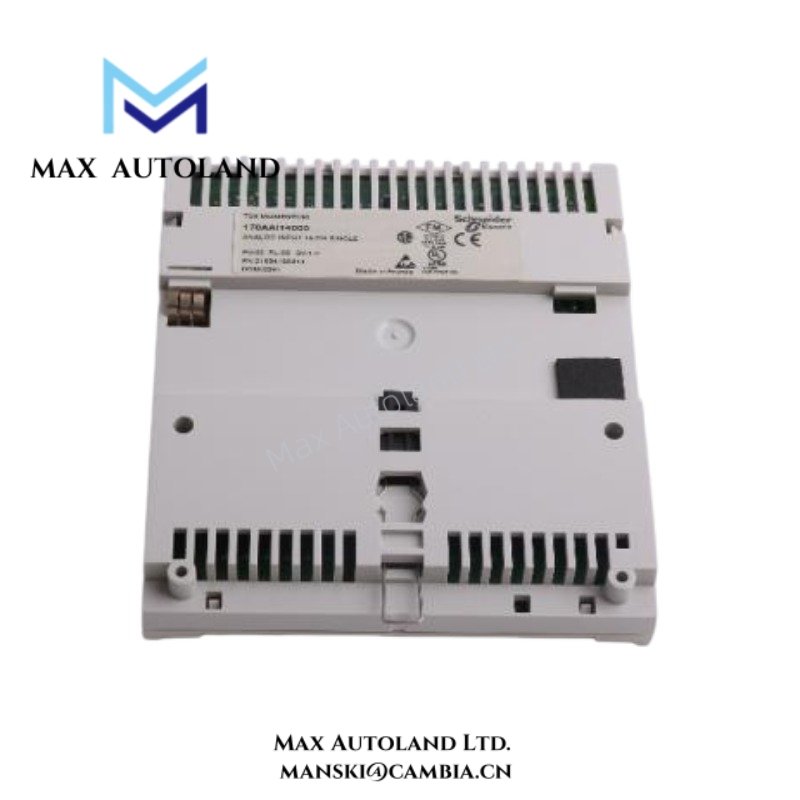

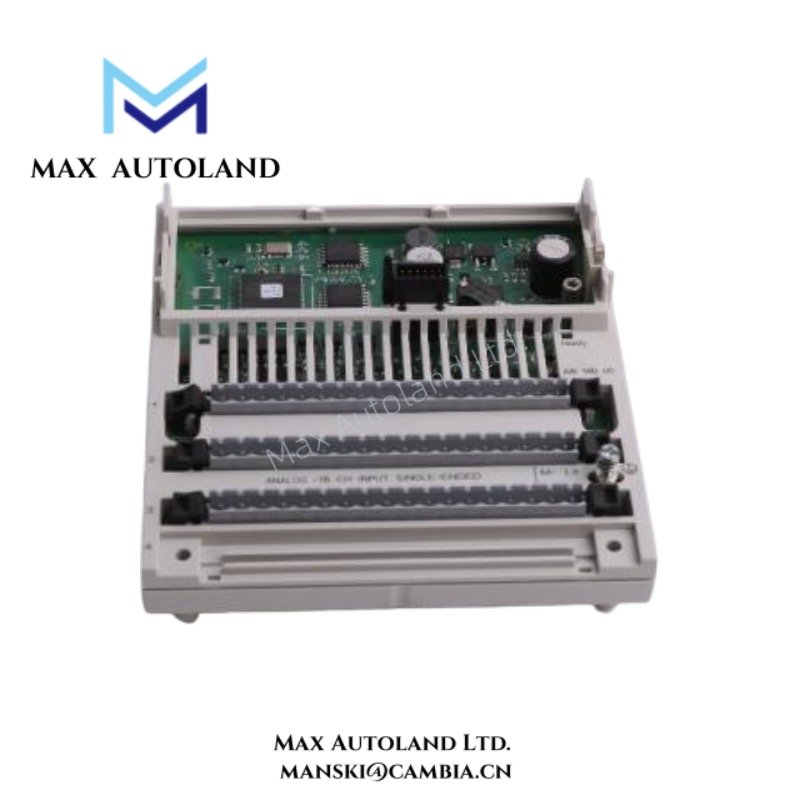

Schneider Electric’s 170AAI14000 serves as a high-performance analogue input base for the Modicon Quantum automation platform. This 16-channel single-ended module delivers precise signal acquisition with multiple voltage and current ranges. It ensures reliable performance in industrial environments through robust isolation, low-noise filtering, and clear channel status indication via dedicated LEDs
Specification
| Parameter | Specification |
|---|---|
| Analogue inputs | 16 channels, single-ended |
| Input ranges | ±10 V, ±5 V, 4–20 mA |
| Input impedance | >2200 kΩ for voltage, <0.25 Ω for current |
| Absolute accuracy | ±0.15 % FS at 25 °C (V), ±0.25 % FS at 25 °C (I) |
| Temperature drift | 30 ‰ FS/°C for V, 60 ‰ FS/°C for I at 60 °C |
| Full-scale values | 10 V, 5 V, 16 mA |
| Update time | 25 ms |
| Isolation | 1780 V AC (channels-ground), 500 V AC (supply-ground) |
| Common mode voltage | 100 V DC, 250 V AC |
| Power | ±30 V DC, ≤5.55 W, 305 mA at 24 V DC |
| Protection | Reverse polarity, internal 2 A slow-blow, 500 mA fast-blow fuse |
| Signaling | 16 LEDs for channel status |
| Dimensions | 141.5 × 125 × 47.5 mm |
| Weight | 0.215 kg |
| Certifications | CSA, FM Class 1 Div 2, UL |
| Environmental | 0–60 °C operating, -40–85 °C storage, RH 95% non-condensing, ≤5000 m altitude |
| EMC & ESD | 4 kV contact, 8 kV air discharge, 10 V/m 80–1000 MHz |
| Sustainability | RoHS compliant, Green Premium, REACh SVHC-free |
FAQ
Q1: Is this product new and original?
A1: Yes, the 170AAI14000 is fully new, original, and factory-certified by Schneider Electric.
Q2: How quickly can you ship?
A2: Orders ship within 3 days to 2 weeks depending on quantity. Common logistics include DHL and FedEx.
Q3: Can I return if there’s a quality issue?
A3: We support returns within 30 days for any manufacturing defects or quality issues.
Q4: What kind of inputs does this module support?
A4: It supports ±10 V, ±5 V, and 4–20 mA single-ended analogue signals across 16 channels.
Q5: What is the operating temperature range?
A5: The module operates reliably between 0–60 °C with storage from -40–85 °C.
